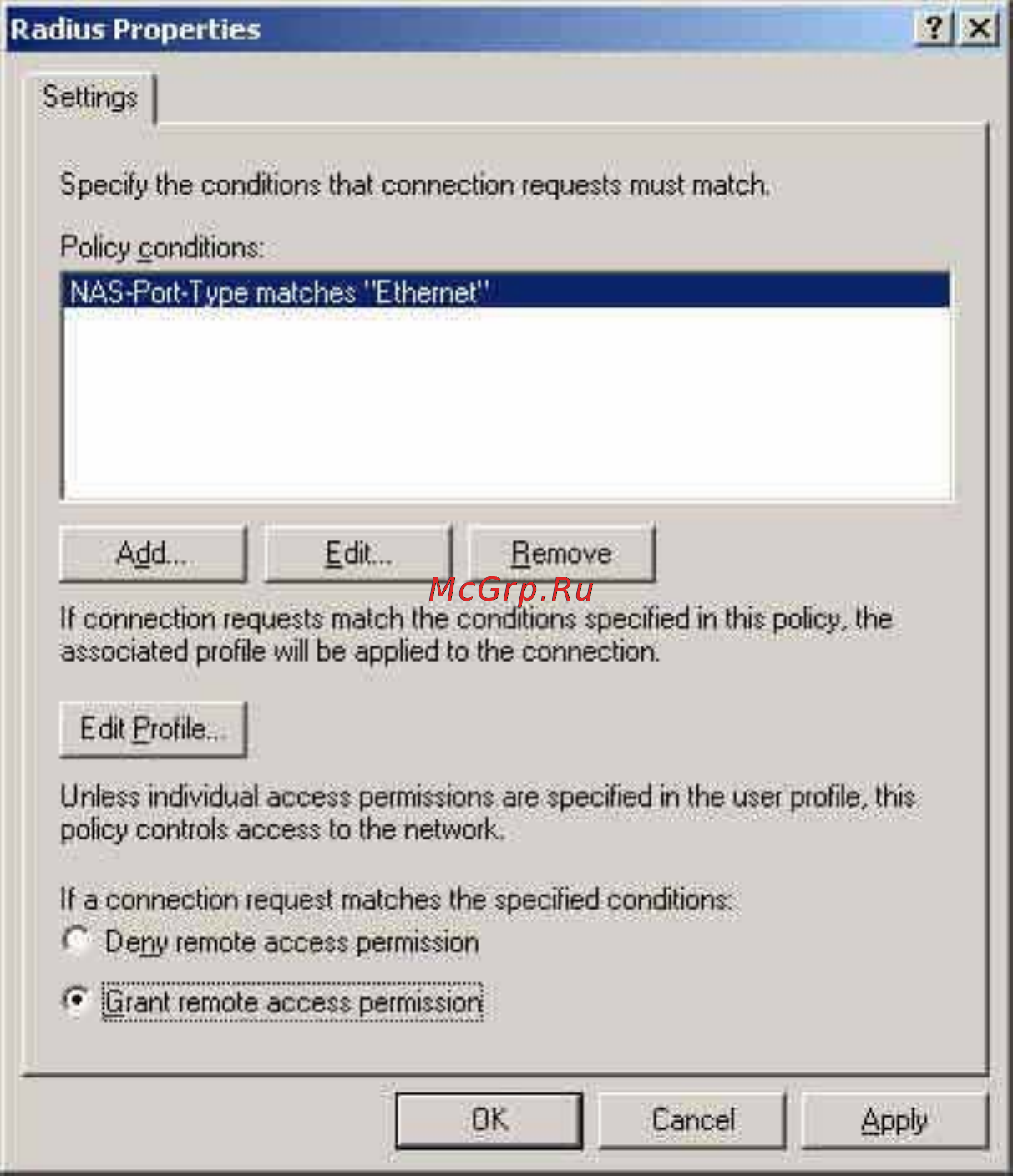

STEP 14﹒Select Grant remote access permission and Remove the original setting,

click Add to add a new one.

RADIUS Properties Settings

１０９
