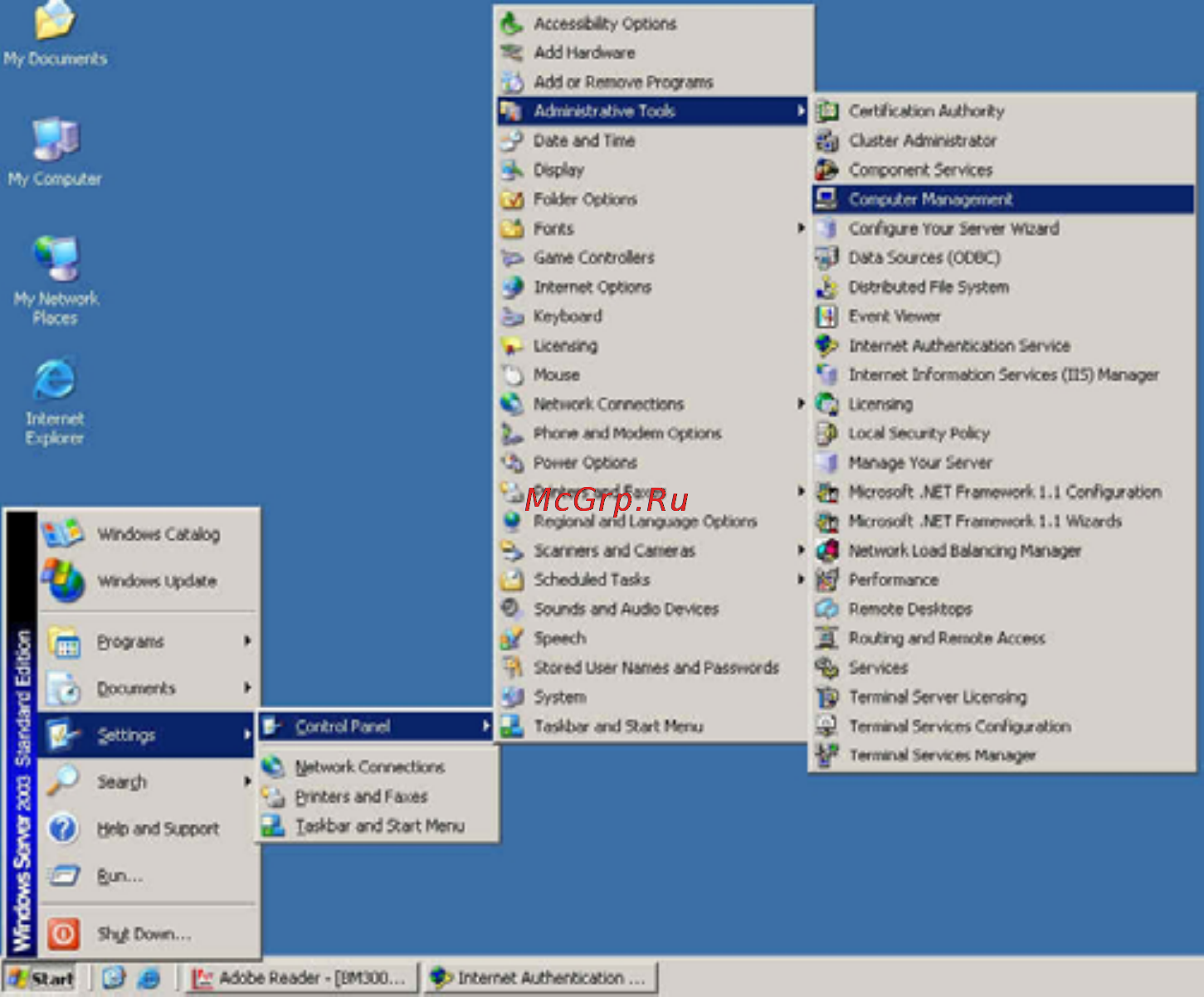

STEP 18﹒Add Auth User. Click [Start] Æ [Setting]Æ [Control Panel] Æ

[Administrative Tools], Choose [Computer Management]

Enter Computer Management

１１３
