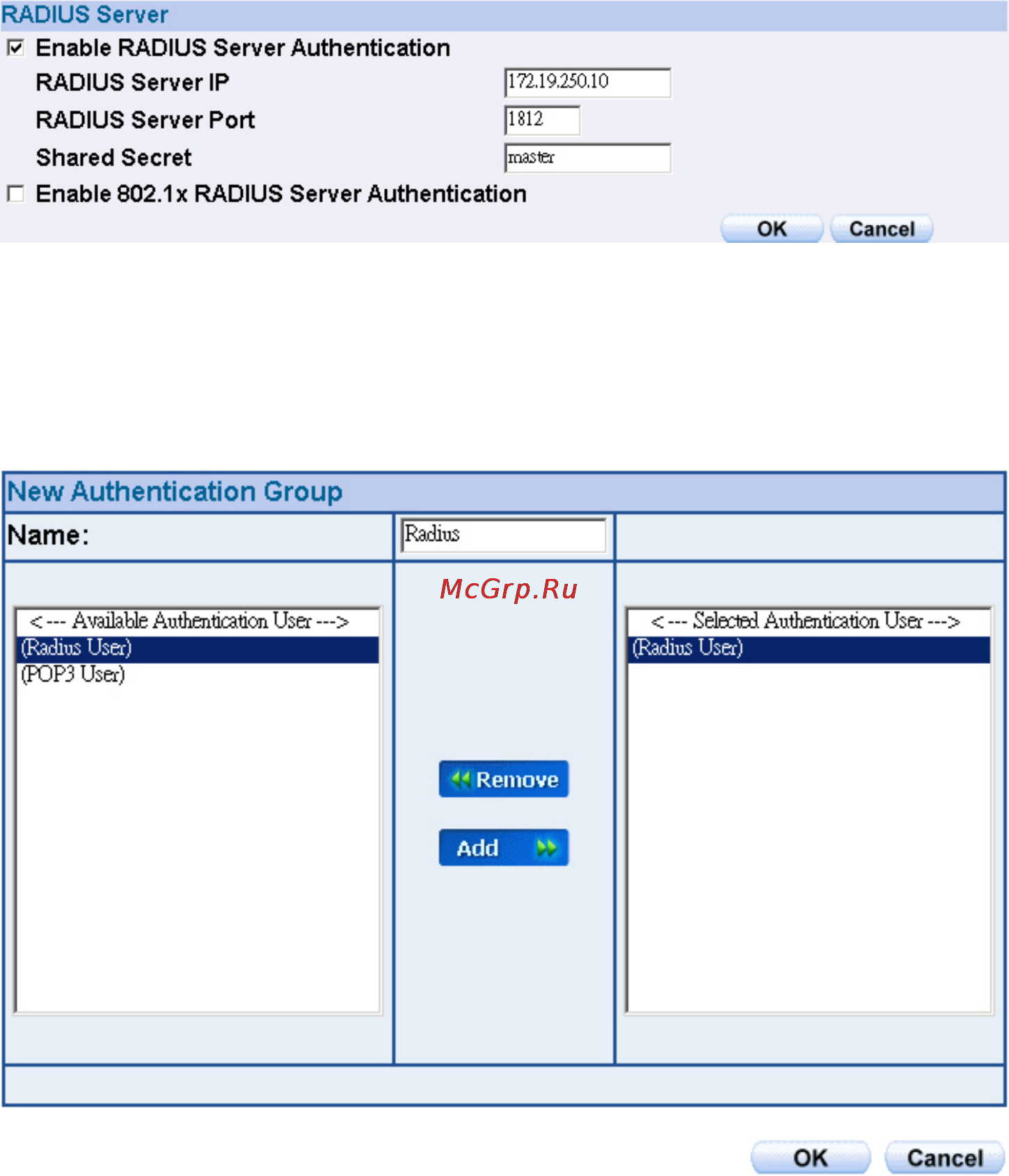

STEP 21﹒Enter IP, Port and Shared Secret (The setting must be the same as

RADIUS Server) in RADIUS of Authentication

Setting RADIUS Server

STEP 22﹒Add Radius User in Auth User Group of Authentication.

Add New RADIUS Auth Group

１１５
