STEP 4﹒When the user is going to access to Internet by browser, the Authentication

Web UI will display in the browser. After entering correct account and

password, click on OK and then can access to Internet by SG-1000:

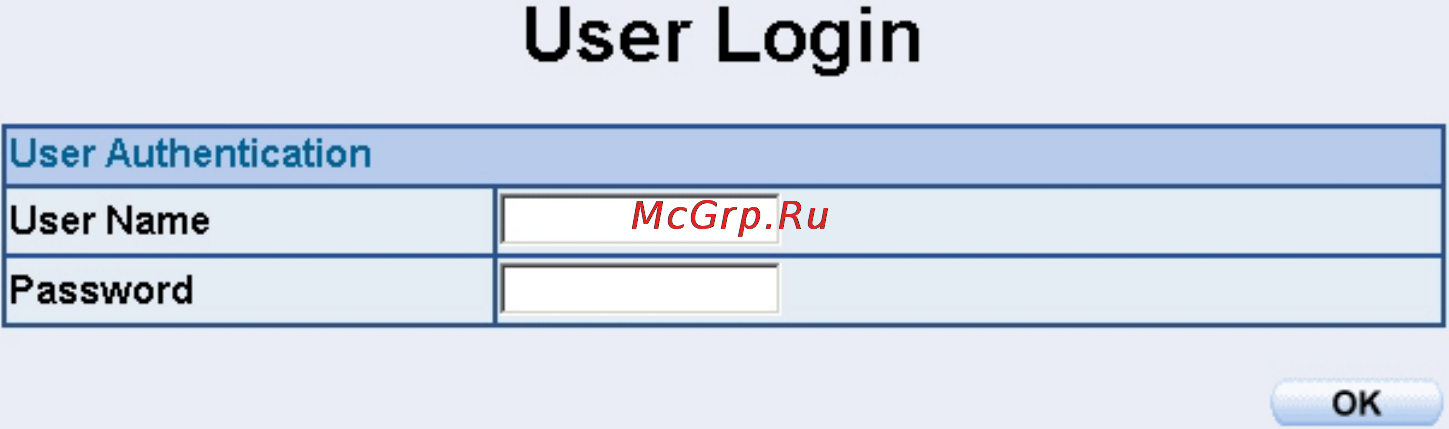

The Authentication Web UI

１２０
