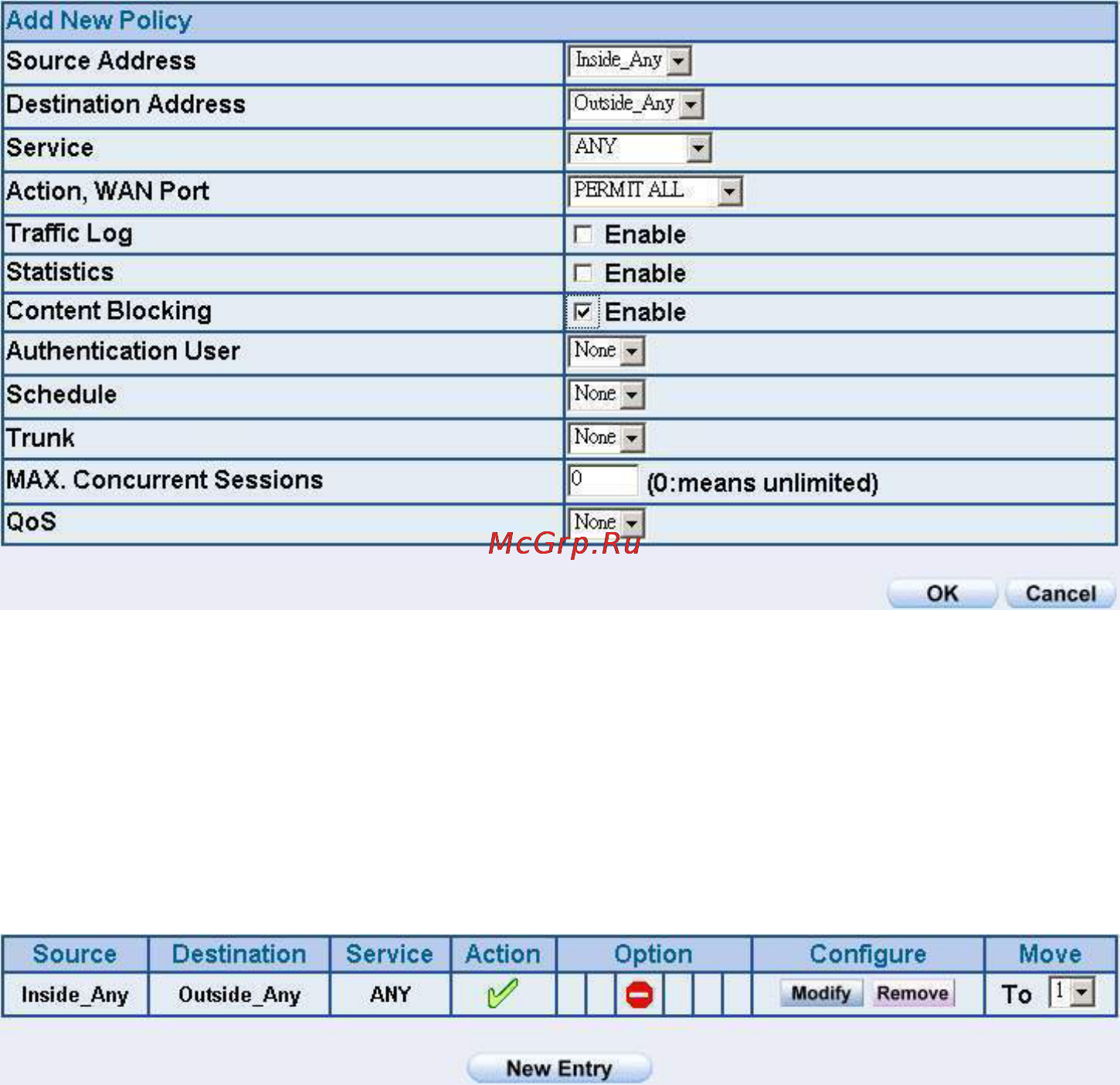

STEP 2﹒Add a new Outgoing Policy and use in Content Blocking function:

Add New Download Blocking Policy Setting

STEP 3﹒Complete the Outgoing Policy of restricting the internal users to access to

video, audio, and some specific sub-name file by http protocol directly:

Complete Download Blocking Policy Setting

１３５
