STEP 2﹒Enter the following data in Server 1 of Virtual Server function:

 Click the button next to Virtual Server Real IP (“click here to

configure”) in Server 1



Virtual Server Real IP: Enter 211.22.22.23 (click Assist for assistance)

 Click OK

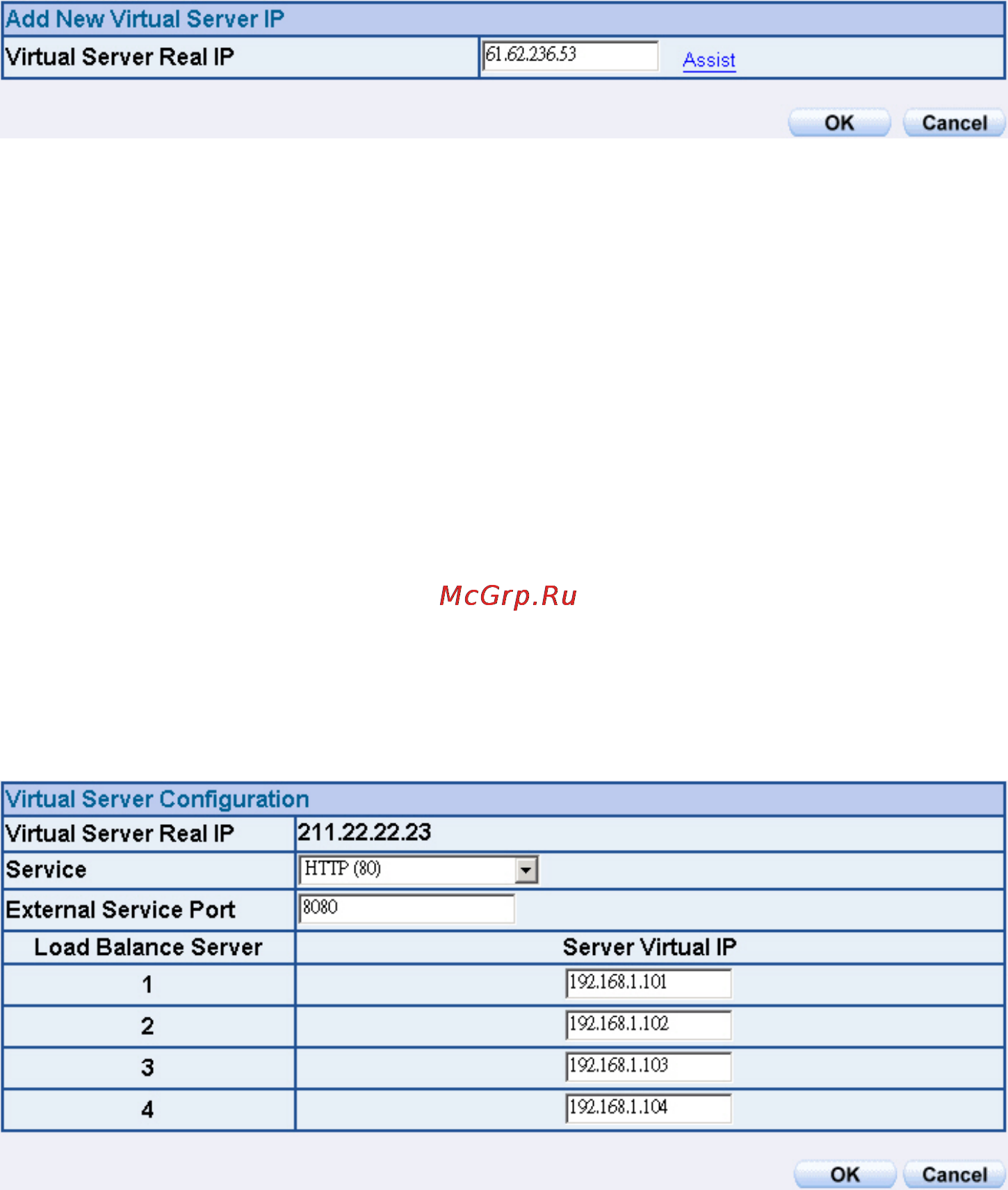

Virtual Server Real IP Setting

 Click New Entry



Service: Select HTTP (80)



External Service Port: Change to 8080



Load Balance Server1: Enter 192.168.1.101



Load Balance Server2: Enter 192.168.1.102



Load Balance Server3: Enter 192.168.1.103



Load Balance Server4: Enter 192.168.1.104



Click OK

 Complete the setting of Virtual Server

Virtual Server Configuration Web UI

１４４
