STEP 5﹒Add a new Incoming Policy, which includes the virtual server that set by

STEP4:

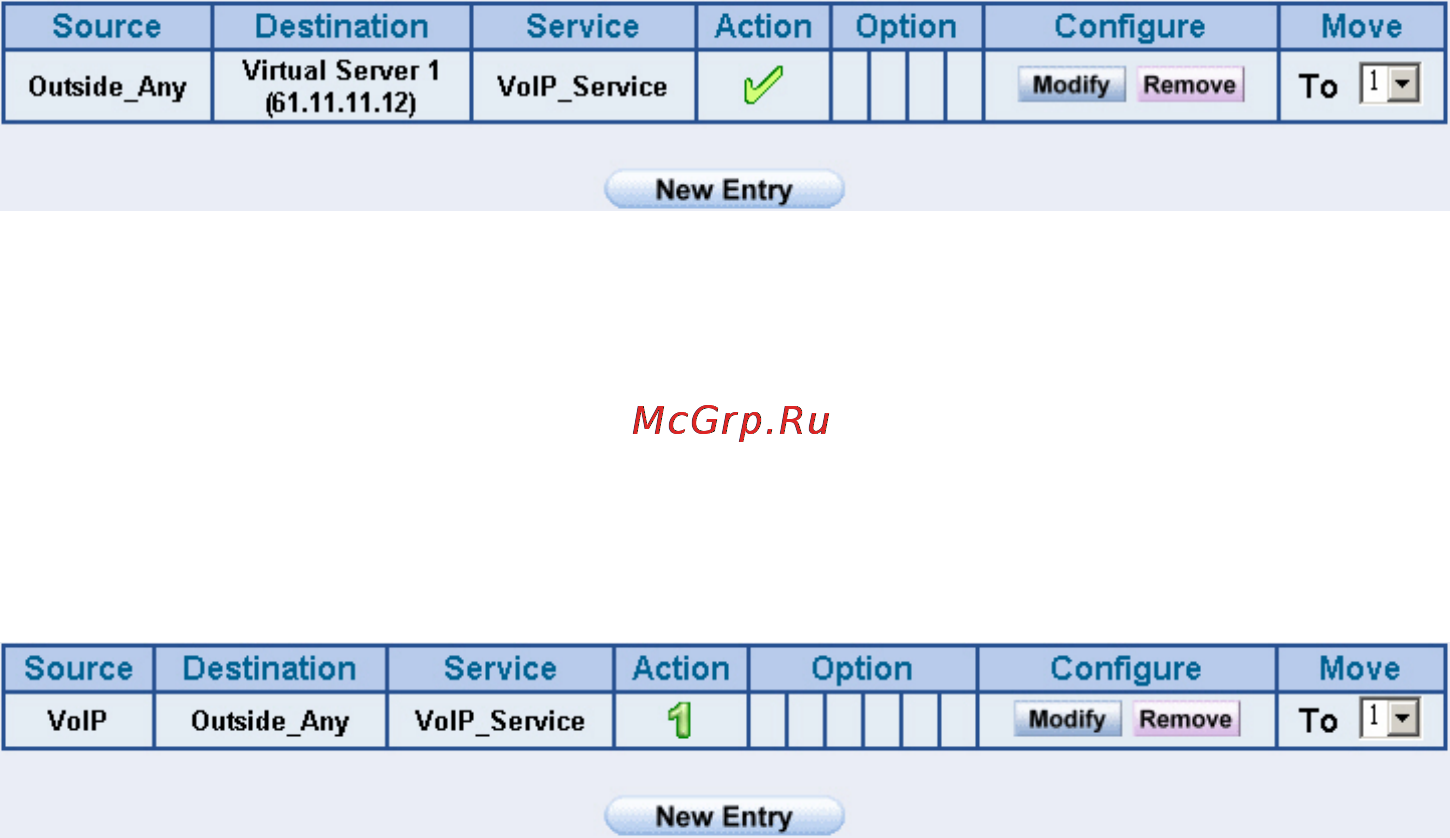

Complete the Policy includes Virtual Server Setting

STEP 6﹒Enter the following setting of the internal users using VoIP to connect with

external network VoIP in Outgoing Policy:

Complete the Policy Setting of VoIP Connection

１４８
