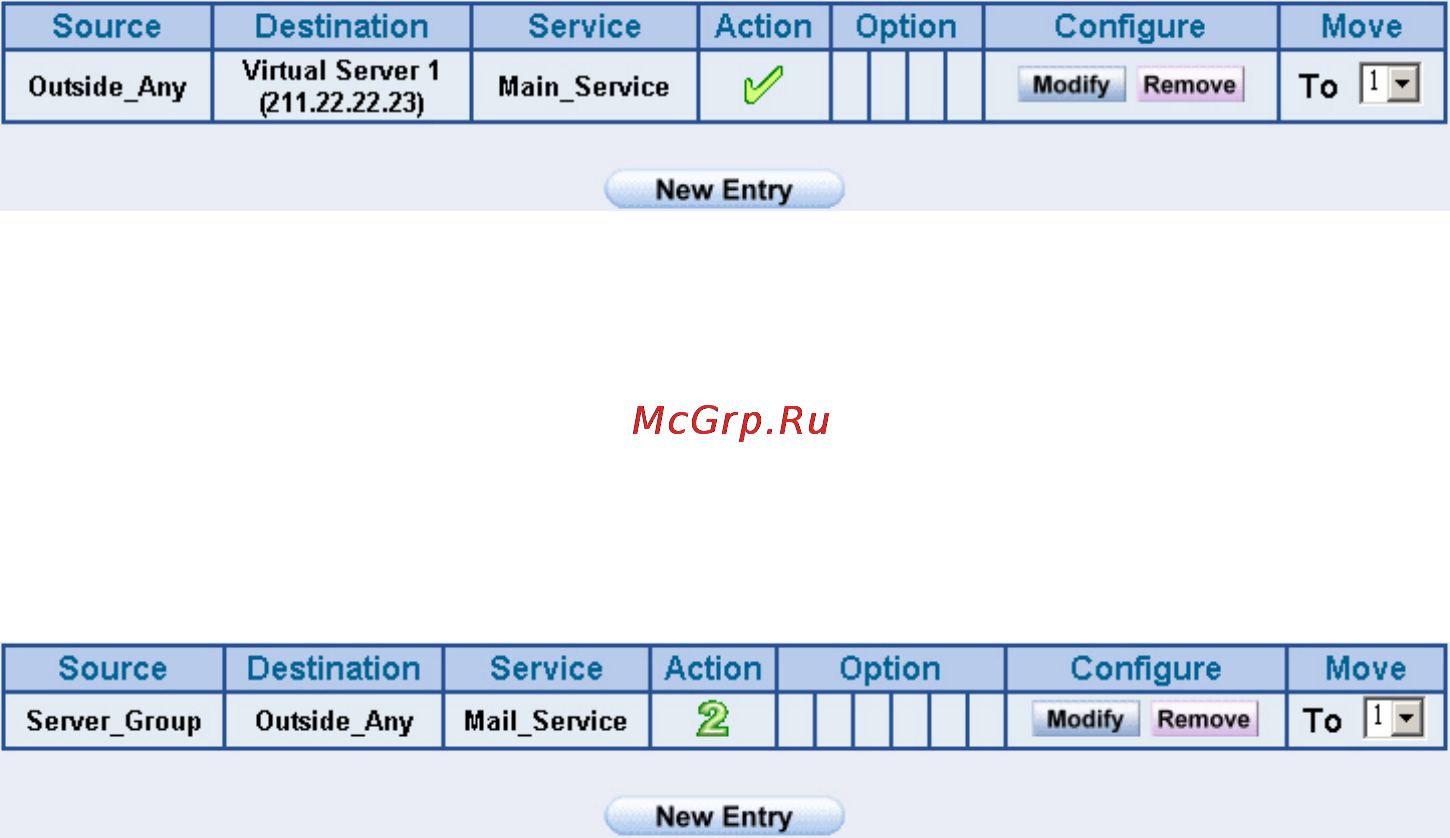

STEP 5﹒Add a new Incoming Policy, which includes the virtual server that set by

STEP 3:

Complete Incoming Policy Setting

STEP 6﹒Add a new policy that includes the settings of STEP2, 3 in Outgoing Policy.

It makes server can send e-mail to external mail server by mail service.

Complete Outgoing Policy Setting
