STEP 9﹒Enter the following setting in Trunk of VPN function:

 Enter a specific Trunk Name.

 From Source: Select LAN

 From Source Subnet / Mask: Enter 192.168.10.0 / 255.255.255.0.

 To Destination: Select To Destination Subnet / Mask.

 To Destination Subnet / Mask: Enter 192.168.20.0 / 255.255.255.0.

 Tunnel: Add VPN_A.

 Select Show remote Network Neighborhood.

 Click OK.

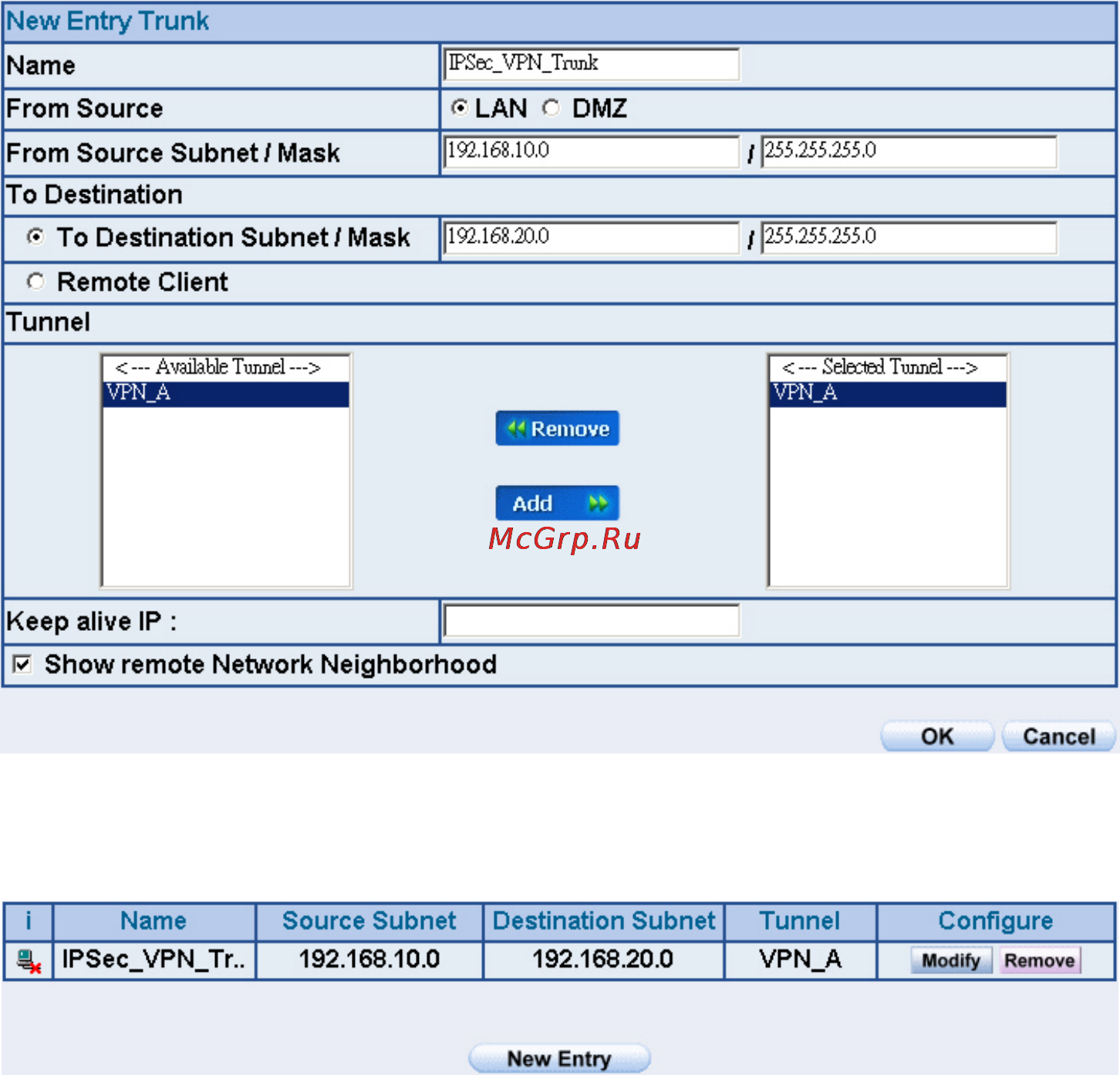

New Entry Trunk Setting

Complete New Entry Trunk Setting

１６６
