: STEP 10. Enter the following setting in Outgoing Policy

 Authentication User: Select All_NET.

 Schedule: Select Schedule_1.

 QoS: Select QoS_1.

 Trunk: Select IPSec_VPN_Trunk.

 Click OK.

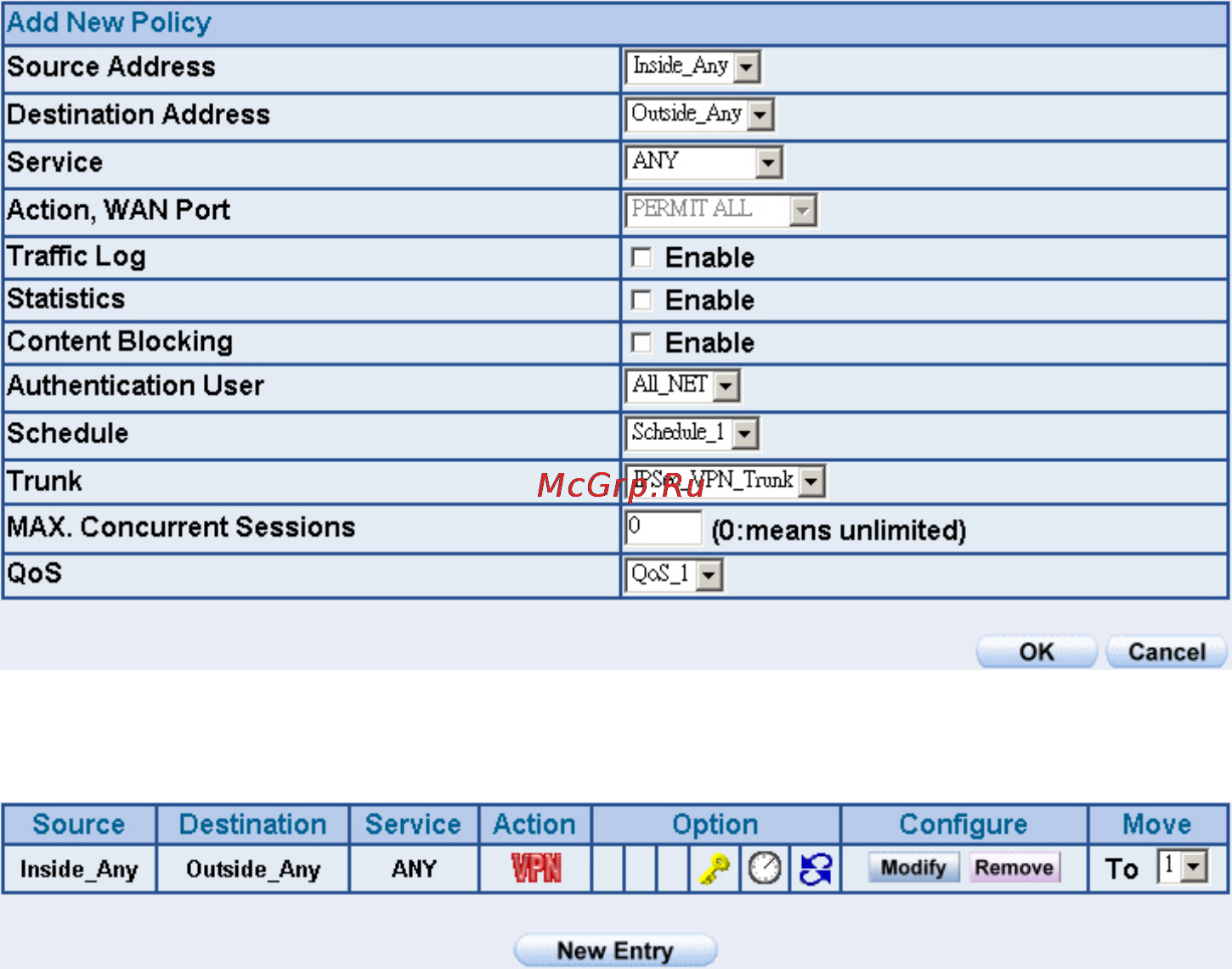

Setting the VPN Trunk Outgoing Policy

Complete the VPN Trunk Outgoing Policy Setting
