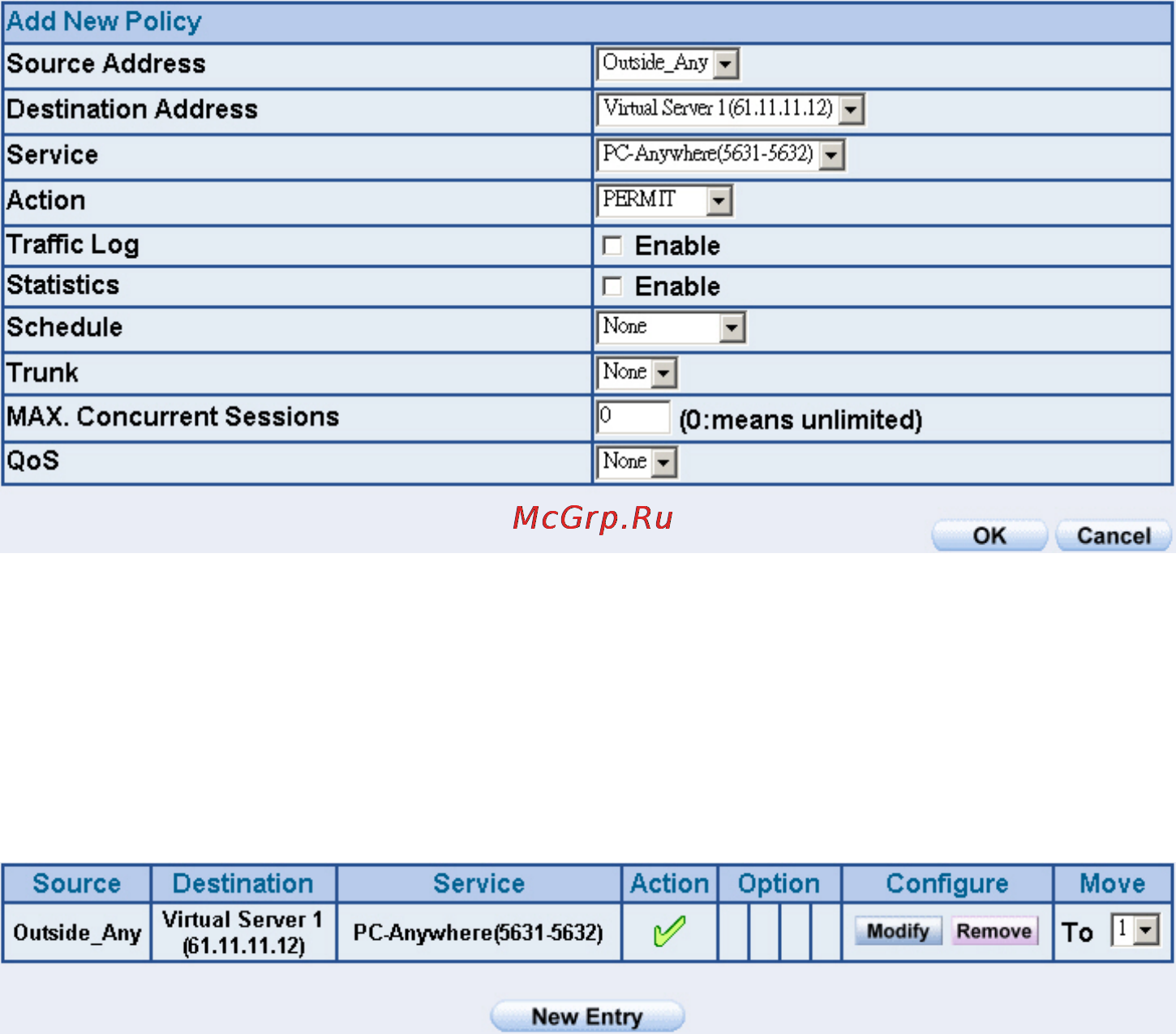

STEP 3﹒Enter the following in Incoming Policy:

 Click New Entry

 Destination Address: Select Virtual Server1 (61.11.11.12)

 Service: Select PC-Anywhere (5631-5632)

 Click OK

Setting the External User Control the Internal PC Policy

STEP 4﹒Complete the policy for the external user to control the internal PC through

remote control software.

Complete Policy Setting
