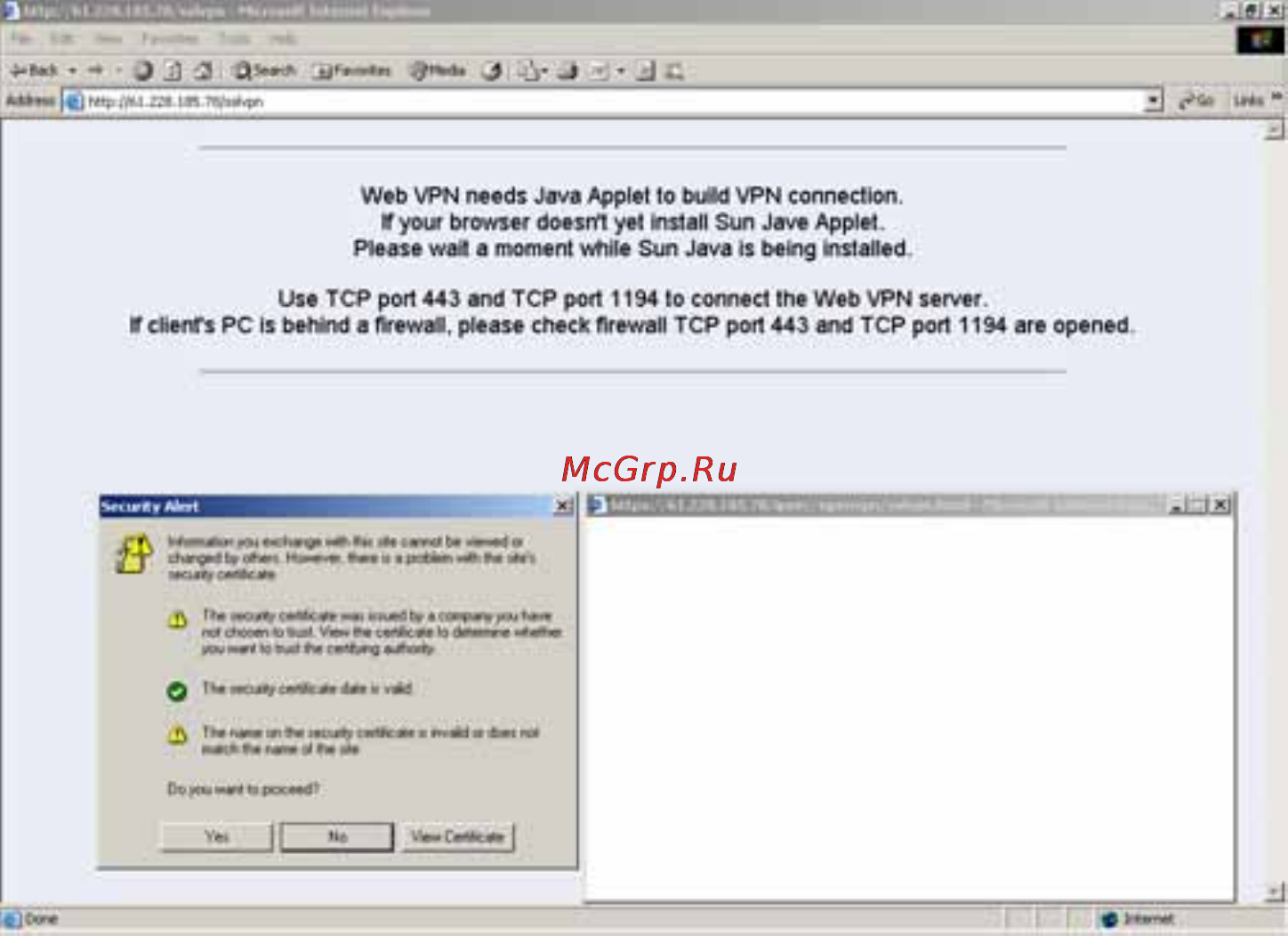

STEP 5. Enter the following setting in Browser:

 Address: Enter http://61.11.11.11/sslvpn or http://61.11.11.11/webvpn.

(It means to add “sslvpn” or “webvpn” character string to SG-1000’s

Web UI login IP.)。

 Click Enter.

 Click Yes in Security Alert window.

 Click Yes in Warning - Security window.

 Click Yes in Warning - HTTPS window.

 Click Yes in Warning - Security window.

 Enter User Name is john and Password is 123456789 in

Authentication window.

 Click OK.
