If client PC not install SUN JAVA Runtime Environment, when login SSL VPN

connection Web UI, it will download anf install this software automatically.

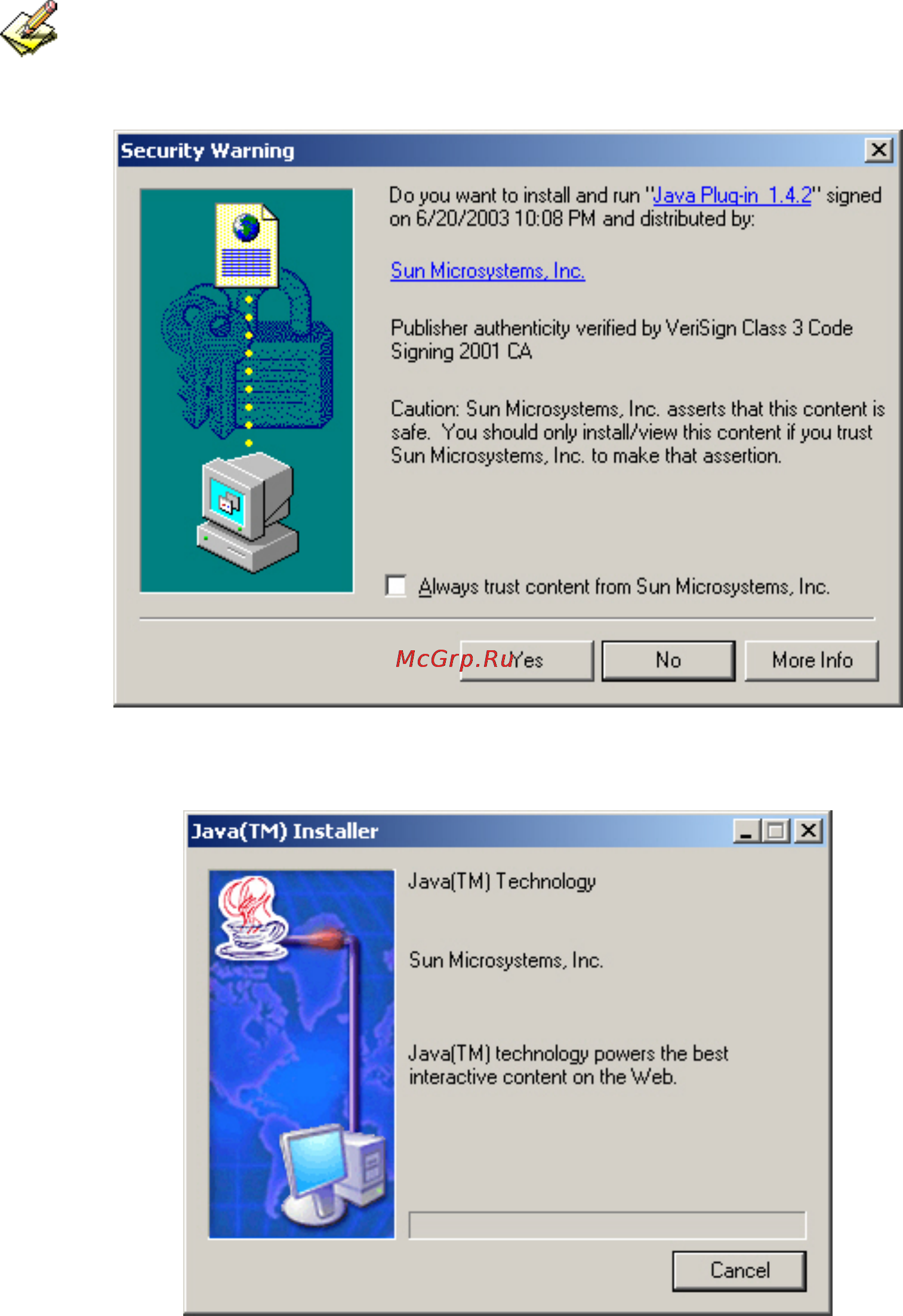

Install Java Runtime Environment Plug-in CA Authenticity

Installing Java Runtime Environment Plug-in

２２１
