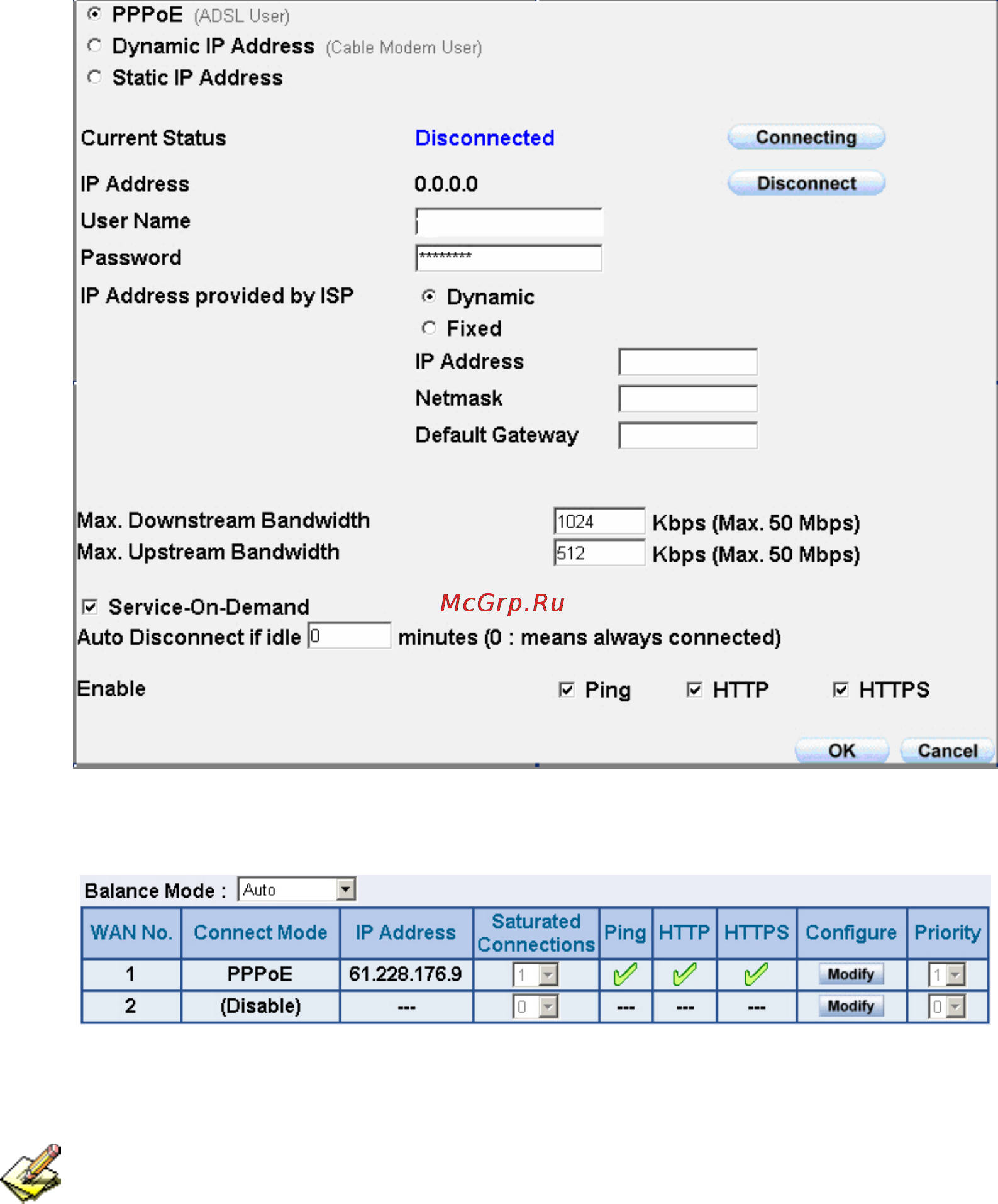

PPPoE Connection

Complete PPPoE Connection Setting

If the connection is PPPoE, you can choose Service-On-Demand for WAN Interface to

connect automatically when disconnect; or to set up Auto Disconnect if idle (not recommend)

５２
