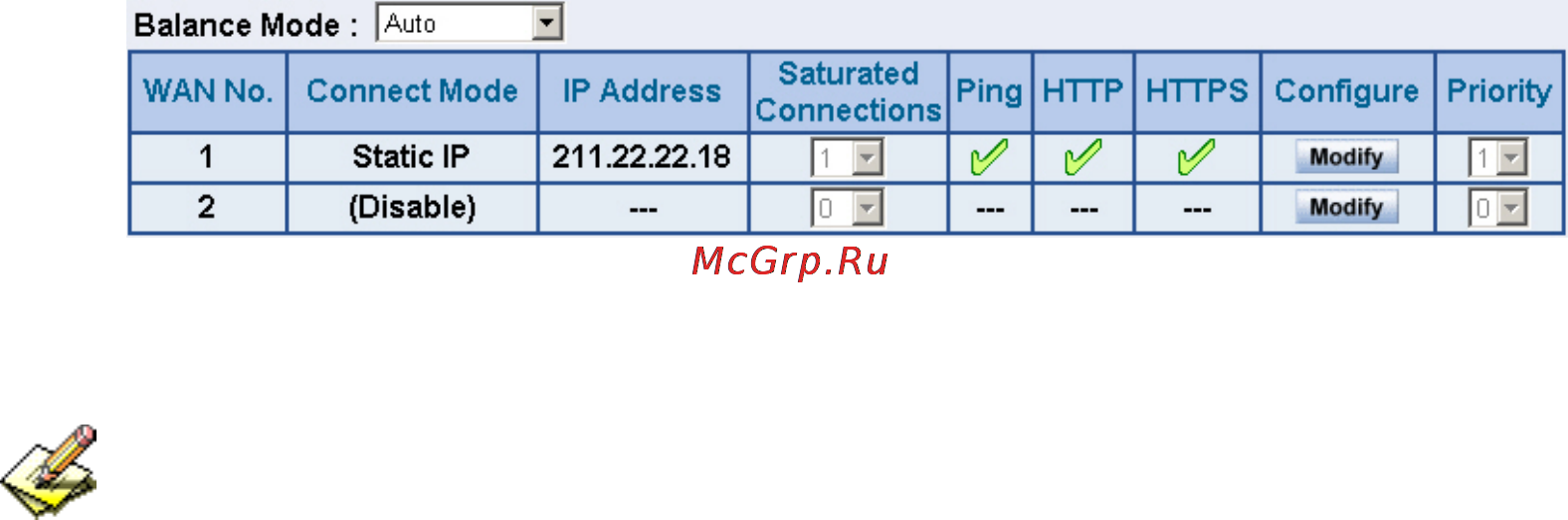

Complete Static IP Address Connection Setting

When selecting Ping and Web UI on WAN network Interface, users will be able to ping

the SG-1000 and enter the Web UI WAN network. It may influence network security. The

suggestion is to Cancel Ping and Web UI after all the settings have finished. And if the System

Administrator needs to enter UI from WAN, he/she can use Permitted IPs to enter.
