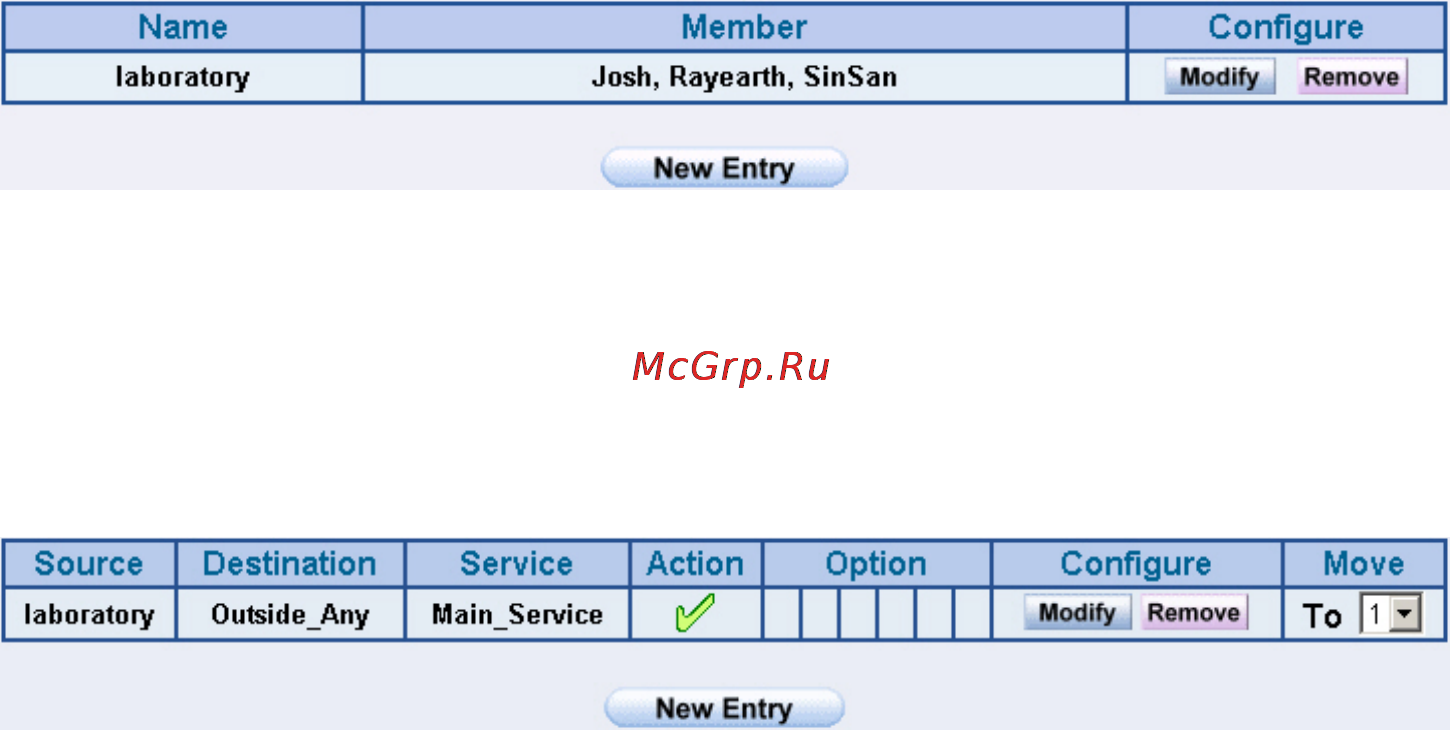

STEP 2﹒In LAN Group of Address function, Setting an Address Group that can

include the service of access to Internet.

Setting Address Book Group

STEP 3﹒Compare Service Group to Outgoing Policy.

Setting Policy

７８
