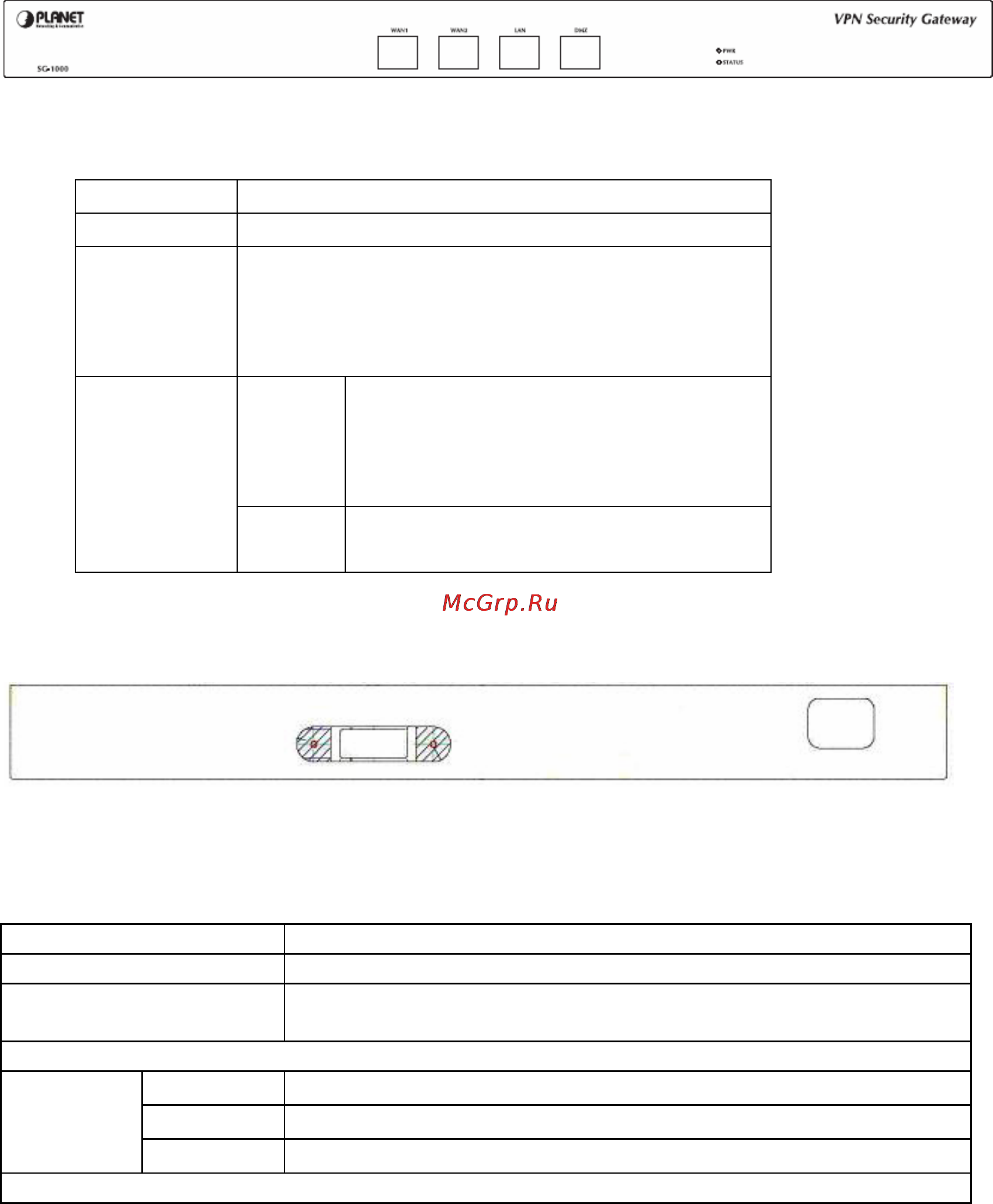

1.2 Front View

- LED definition

LED Description

PWR Power is supplied to this device.

STATUS Blinks to indicate this devise is being turned

on and booting. After one minute, this LED

indicator will stop blinking, it means this

device is now ready to use.

Green Steady on indicates the port is

connected to other network device.

Blink to indicates there is traffic on

the port

WAN1,

WAN2,

LAN, DMZ

Orange Steady on indicates the port is

connected at 100Mbps speed

1.3 Rear View

1.4 Specification

Product VPN Security Gateway

Model SG-1000

Recommend concurrent

user

30 ~ 50

Hardware

LAN

1 x 10/100 Based-TX RJ-45

WAN

2 x 10/100 Based-TX RJ-45

Ethernet

DMZ

1 x 10/100 Based-TX RJ-45

Software

８
