PANEL DESCRIPTION

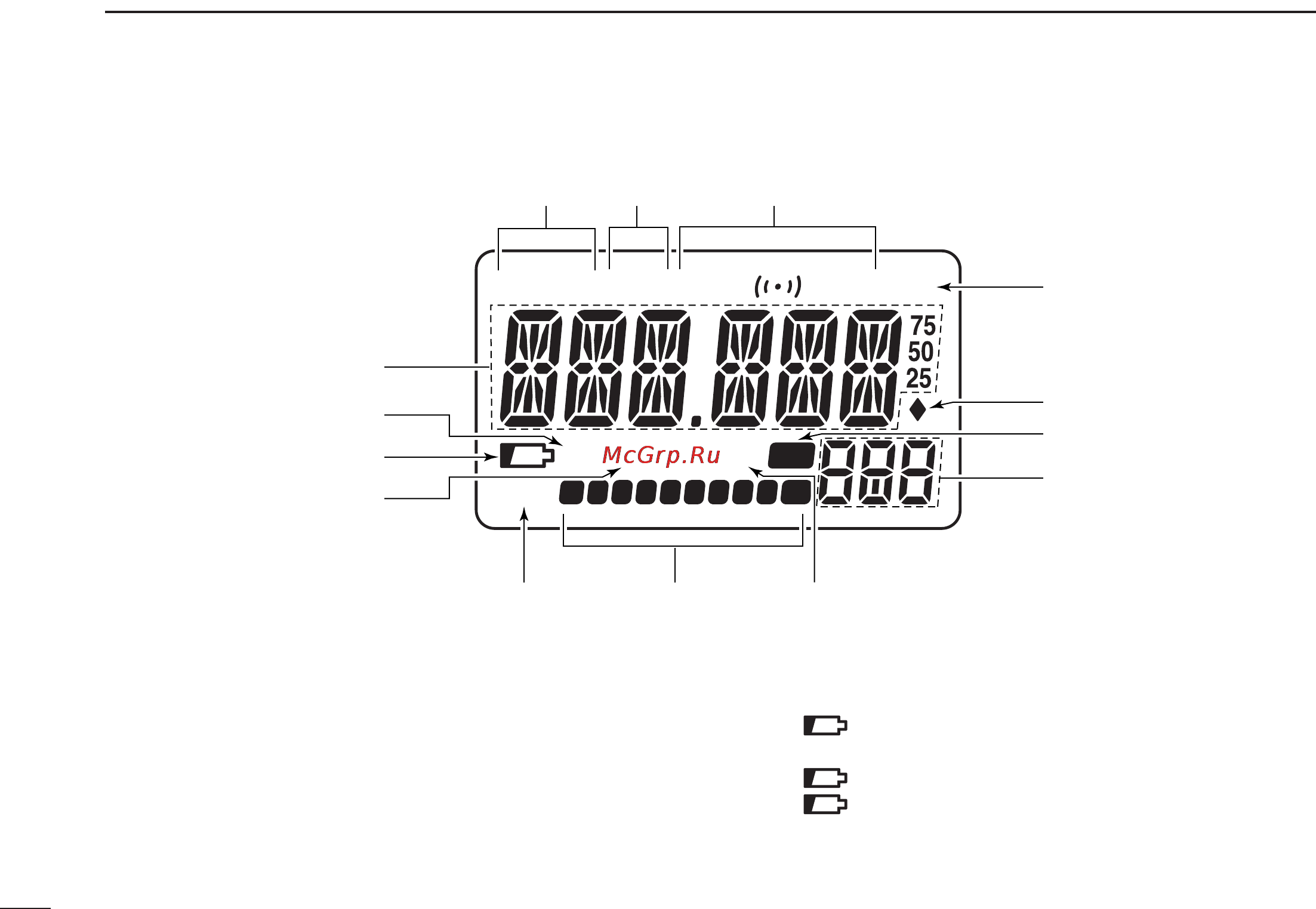

qFREQUENCY READOUT
Displays a variety of information, such as an operating fre-
quency, set mode contents, memory names.
• The smaller “75,” “50” and “25” on the right of the readout indi-
cate 0.75, 0.5 and 0.25 kHz, respectively.
• The decimal point blinks during scan.
wDIAL/VOLUME EXCHANGE INDICATOR (p. 18)
Appears when the function of [DIAL] and [
YY
]/[
ZZ
] are ex-
changed.
eBATTERY INDICATOR
➥ No indicator appears when the installed battery pack
has ample capacity.
➥ “” (battery indicator) appears when the battery
pack is nearing exhaustion.
➥ “” blinks when the battery pack must be charged.
➥ “” and “LOW” indicator appear just before the bat-
tery pack is completely discharged and display turns
OFF.
ATT
DTCS
T SQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
q
w
e
r
tyu
o
!4
!0
!3 !2
!1
i
■ Function display
