Icom IC-P7A [46/96] Call channel programming
![Icom IC-P7A [46/96] Call channel programming](/views2/1074434/page46/bg2e.png)
33
6
MEMORY/CALL CHANNELS
■

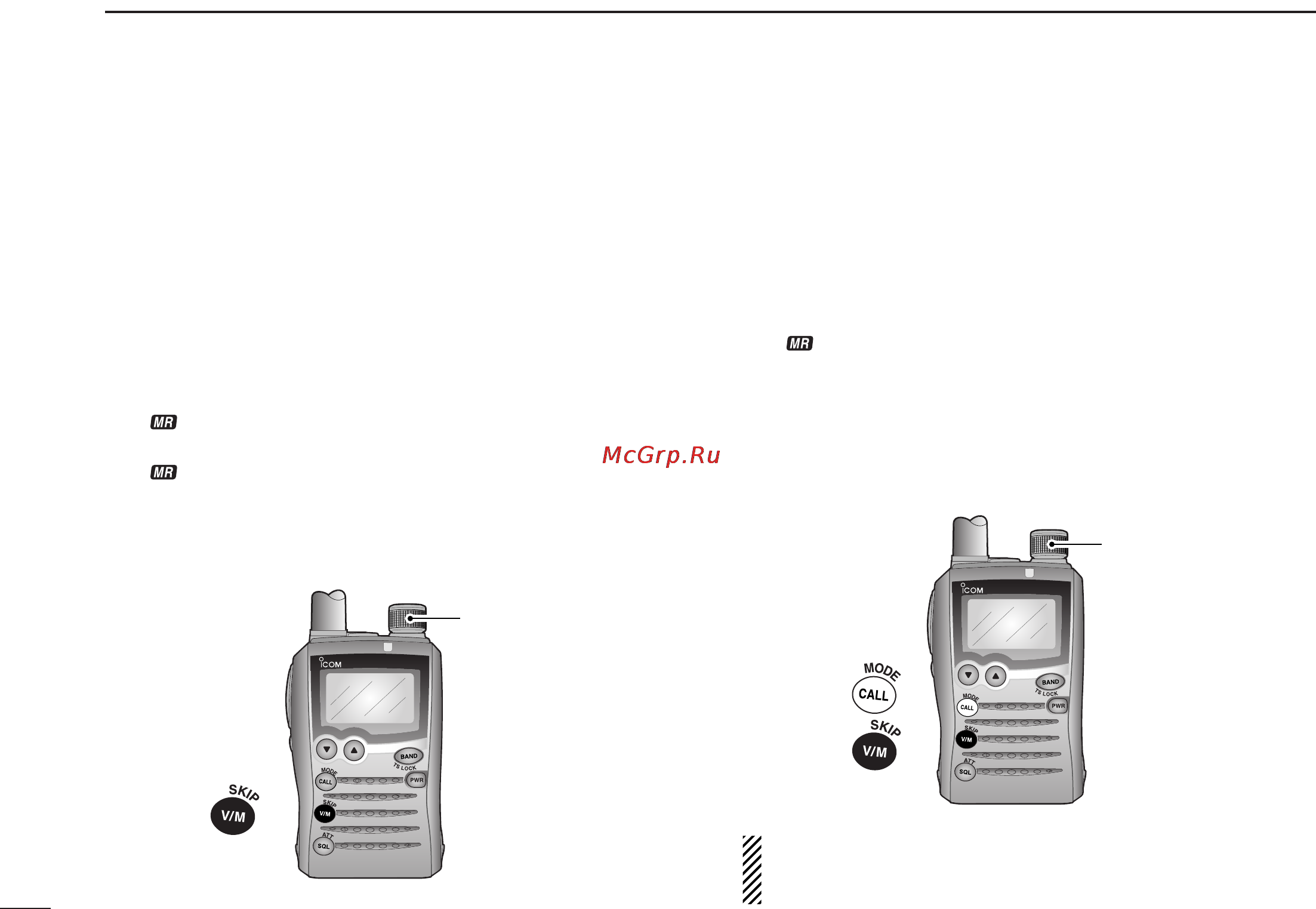

Call channel programming
qPush [V/M] (
SKIP
•
S
.
MW
) to select VFO mode, if necessary.
wSet the desired frequency:
➥ Select the desired band with [BAND] (
TS
•
LOCK
).
➥ Set the desired frequency with [DIAL].
➥ Set other data
(e.g. offset frequency, duplex direction, sub-
audible tone frequency, etc.), if desired.
ePush and hold [V/M] (
SKIP
•
S
.
MW
) for 1 sec. to enter select
memory write mode.
•1 short and 1 long beep sound.
•“ ” indicator and memory channel number blink.
rRotate [DIAL] to select the desired call channel.
•“ ” indicator and call channel number “C0” or “C1” blink.
• While pushing and holding [FUNC], rotate [DIAL] to select mem-
ory channel in 10 channel steps.
tPush and hold [V/M] (
SKIP
•
S
.
MW
) for 1 sec.
•3 beeps sound
■
Copying call channel contents
qPush [CALL] (
MODE
•
SCAN
) momentarily to select a call
channel.
wRotate [DIAL] to select the desired call channel.
ePush and hold [V/M] (
SKIP
•
S
.
MW
) for 1 sec. to enter select
memory write mode.
•1 short and 1 long beeps sound.
•“ ” indicator and memory channel number blink.
• Do not hold [V/M] (
SKIP
•
S
.
MW
) for more than 2 sec. otherwise the
call channel contents will be copied to VFO.
rRotate [DIAL] to select the desired target memory chan-
nel.
tPush and hold [V/M] (
SKIP
•
S
.
MW
) for 1 sec. to transfer the
contents.
CONVENIENT!:
When you want to copy the call channel contents to the VFO,
push and hold [V/M] (
SKIP
•
S
.
MW
) for 2 sec. as in steps e.
SCAN
S.MW
SET
SCAN
[DIAL]
S.MW
SCAN
S.MW
SET
[DIAL]
S.MW
