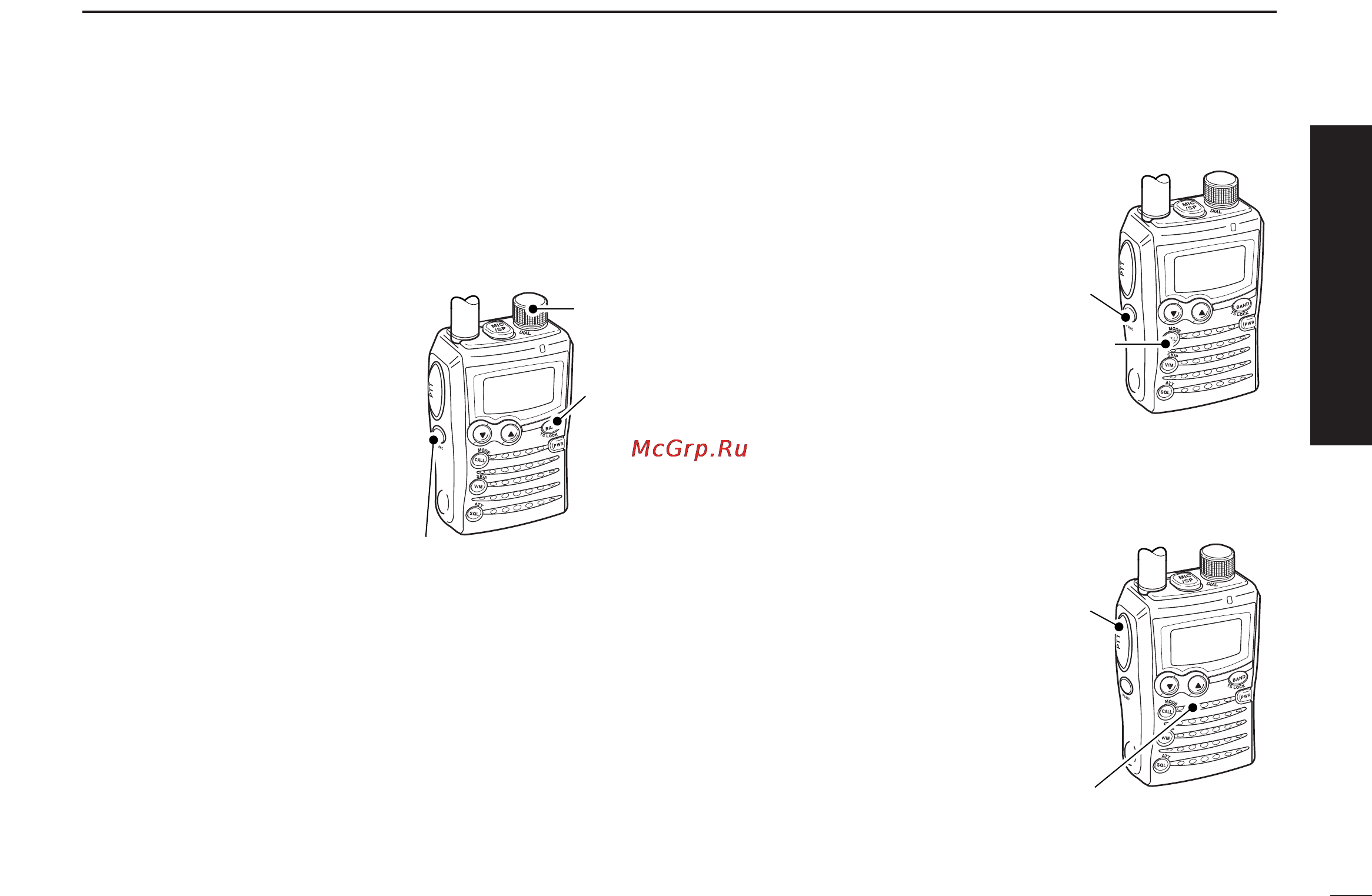

![Icom IC-P7A [9/96] Quick reference guide](/views2/1074434/page9/bg9.png)
IV
QUICK REFERENCE GUIDE
4. Tune the desired frequency
The tuning dial will allow you to dial in the frequency you want
to use. Pages 11 and 17 will instruct you on how to set the
tuning step size.
qPush [BAND] (
TS
•
LOCK
) sev-
eral times to select the de-
sired frequency band.
• While pushing and holding
[BAND] (
TS
•
LOCK
), rotating
[DIAL] also selects frequency
band.
wRotate [DIAL] to set the de-
sired frequency.
• While pushing and holding
[FUNC], rotate [DIAL] to select
frequency in 1 MHz steps.
5. Operating mode selection
➥ While pushing and holding
[FUNC], push [CALL]
(
MODE
•
SCAN
) several times to
select the desired operating
mode.
• FM, WFM and AM modes are
selectable.
6. Transmit and receive
➥ Push and hold [PTT] to trans-
mit then speak into the micro-
phone; release to receive.
•Transmission is available on the
144 MHz/440 MHz (FM mode)
amateur bands only.
S
C
A
N
S
E
T
S.MW
Microphone
[PTT]
S
C
A
N
S
E
T
S.MW
[CALL]
[FUNC]
S
C
A
N
S
E
T
S.M
W
[FUNC]
[BAND]
[DIAL]
