Icom IC-P7A [64/96] Set mode
![Icom IC-P7A [64/96] Set mode](/views2/1074434/page64/bg40.png)
51
10
SET MODE
DD

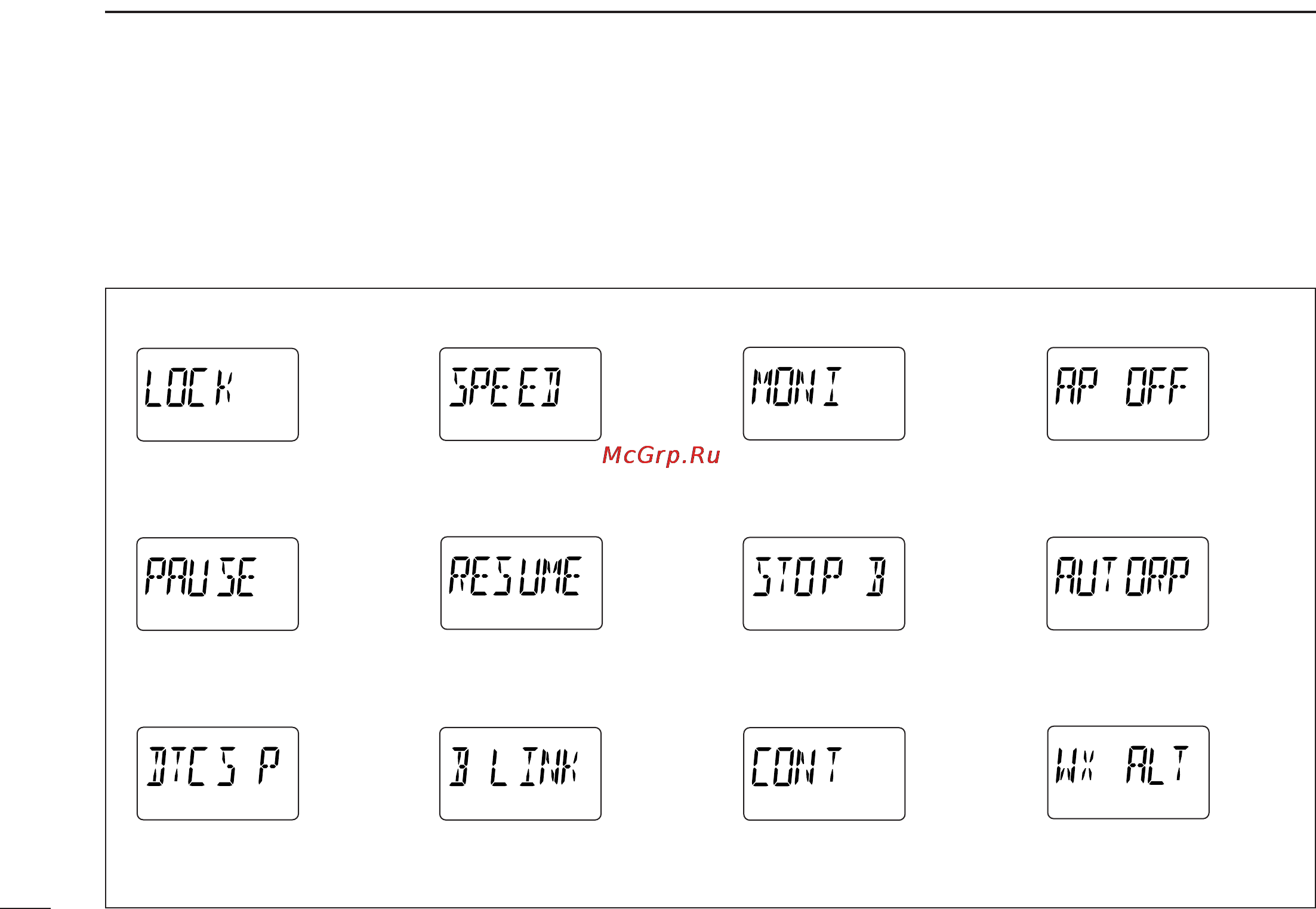

Expanded set mode items
*Available for the USA and Korea versions only.
†
Available for the USA version only.
• Key lock effect (p. 56)
• Dial speed acceleration (p. 56)
• Auto repeater* (p. 58)
• DTCS polarity (p. 58)
• Bank link (p. 59)
• Monitor key action (p. 56)
• Scan resume timer (p. 57)
• Scan pause timer (p. 57)
• Auto power OFF (p. 57)
• Scan stop beep (p. 57)
• Weather alert
†
(p. 59)
• LCD contrast (p. 59)
