MAINTENANCE
13
PROBLEM POSSIBLE CAUSE SOLUTION REF.
Desired set mode item
cannot be selected.
Programmed scan does
not start.
Memory or bank scan
does not start.
Charging indicator (BC-
164) lights red while
charging.
• “EXPAND” item is set to OFF.
• Program scan edges are not programmed.
• No or only one memory or bank channel is pro-
grammed.
• The temperature is too hot or too cold around the
charger (BC-164).
•Turn “EXPAND” item ON.
• Program a pair of scan edge channels.
• Program at least 2 memory or bank channels
•Place the charger within the specified temperature
range (+5°C to +35°C; +41°F to +95 °F), then
charge the battery pack.
p. 49
p. 36
pgs. 24,
25
p. 8

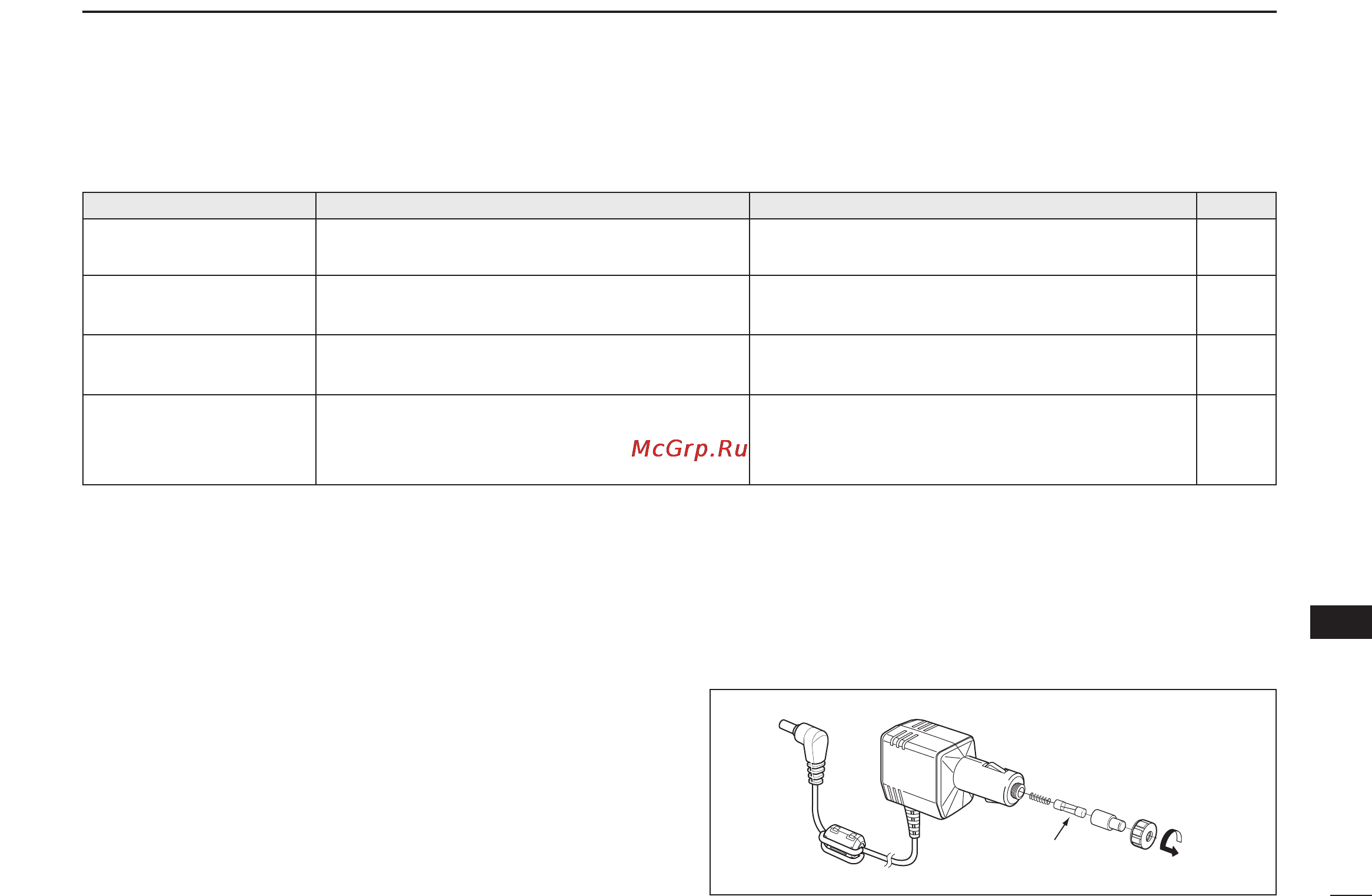

If the fuse blows or the charger stops functioning while oper-
ating with the optional CP-21LR, find the source of the prob-
lem if possible, and replace the damaged fuse with a new,
rated one (FGB 2 A) as shown at right.
Fuse 2 A
■ Optional CP-21LR fuse replacement
Troubleshooting (continued)
