62
11
OTHER FUNCTIONS

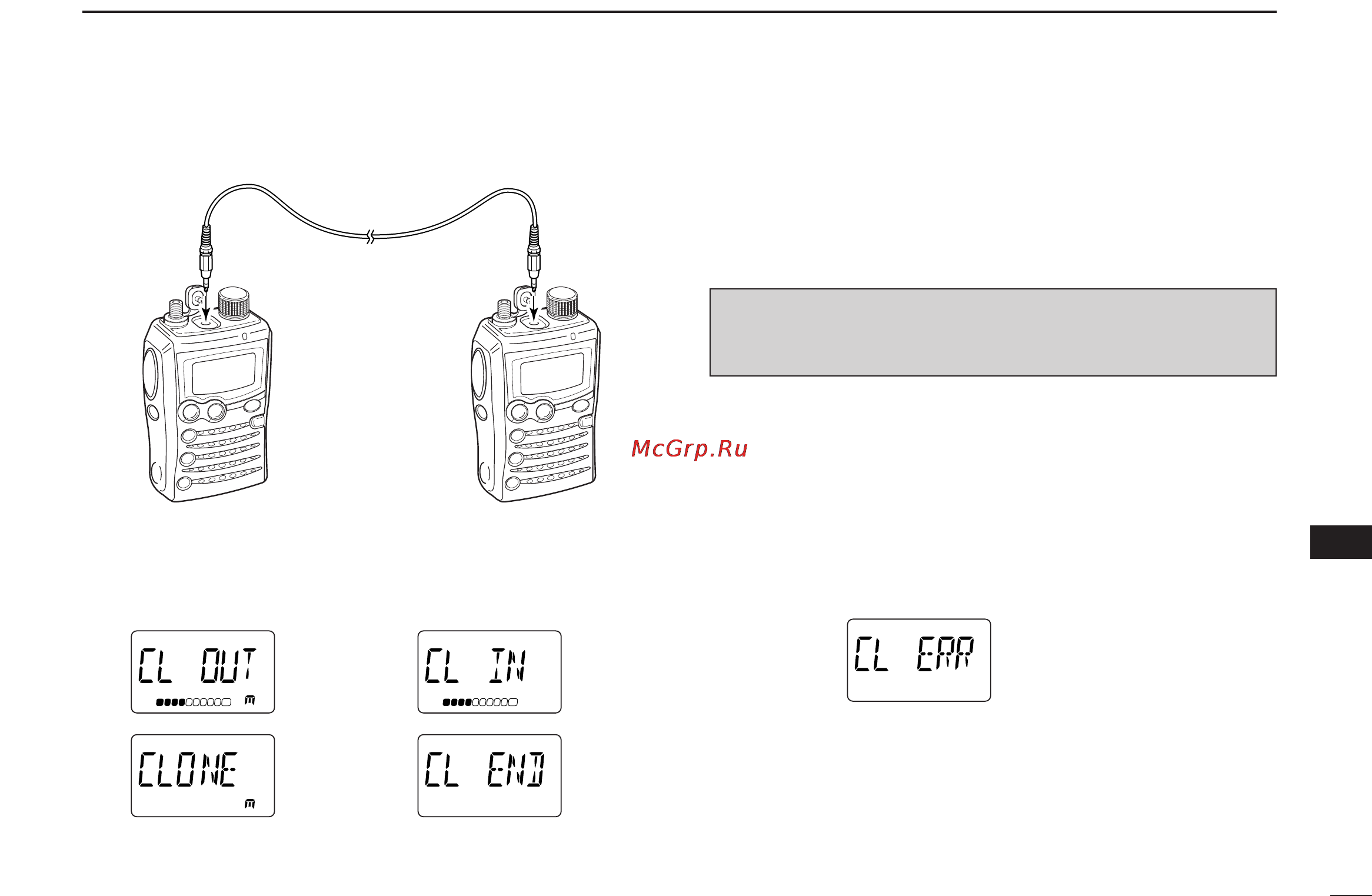

wConnect the OPC-474 cloning cable to the [MIC/SP] jack
of the master and sub-transceivers.
ePush [SQL] (
ATT
•
SET
) on the master transceiver.
• The transceiver show following indications.
rWhen cloning is finished, turn power OFF, then ON to exit
cloning mode.
D Cloning using a personal computer
Data can be cloned to and from a personal computer (Mi-
crosoft
®
Windows
®
98/98SE/Me/2000/XP) using the optional
CS-P7
CLONING SOFTWARE
and the optional OPC-478/478U
CLONING CABLE
. Consult the CS-P7
CLONING SOFTWARE
HELP
file for details.
D Cloning error
☞ NOTE: DO NOT push any key on the sub-transceiver dur-
ing cloning. This will cause a cloning error.
When the display appears as below, a cloning error has oc-
curred.
In such a case, both transceivers automatically return to the
clone standby condition and cloning must be repeated.
Microsoft and Windows are registered trademarks of Microsoft Corporation in
the U.S.A. and other countries.
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
CAUTION: Be sure to turn OFF the transceiver when con-
necting the cloning cable, otherwise cloning op-
erations cannot be performed.
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
During
cloning
After
cloning
Master transceiver
indications
Sub-transceiver
indications
to [MIC/SP]
to [MIC/SP]
Master
transceiver
Sub-
transceiver
