■ Setting a frequency
qPush [V/M] (
SKIP
•
S
.
MW
) to select VFO mode, if necessary.
wSelect the desired frequency band with [BAND] (
TS
•
LOCK
).
•Or, while pushing and holding [BAND] (
TS
•
LOCK
), rotate [DIAL]
to select the desired frequency band.
eRotate [DIAL] to select the desired frequency.
• The frequency changes according to the preset tuning steps.
See the section at right for setting the tuning step.
• While pushing and holding [FUNC], rotate [DIAL] to change the
frequency in 1 MHz steps (default).
The 1 MHz tuning step (dial select step) can be set to
100 kHz, 1 MHz or 10 MHz tuning steps in set mode. See
p. 17 for details.
■ Setting a tuning step
The tuning step can be selected for each frequency band.
The following tuning steps are available for the IC-P7A.
• 5.0 kHz* • 6.25 kHz* • 8.33 kHz
†
• 9.0 kHz
‡
• 10.0 kHz
• 12.5 kHz • 15.0 kHz • 20.0 kHz • 25.0 kHz • 30.0 kHz
• 50.0 kHz • 100.0 kHz • 200.0 kHz
* Appears for below the 500 MHz bands only.
†
Appears for the VHF air band only.
‡
Appears for the AM broadcast band only.
DD

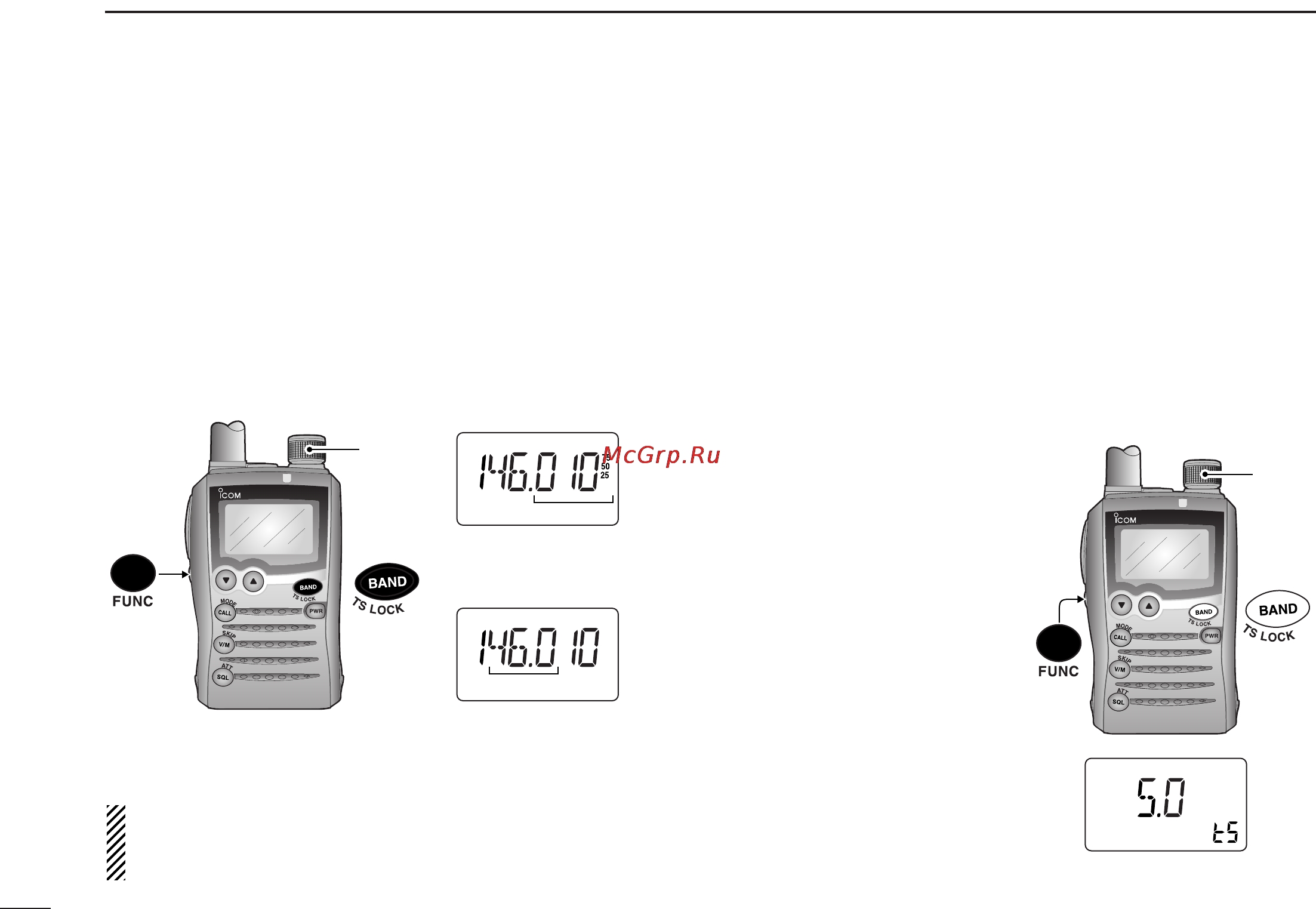

Tuning step selection
qPush [V/M] (
SKIP
•
S
.
MW
) to
select VFO mode, if neces-
sary.
wPush [BAND] (
TS
•
LOCK
)
several times to select the
desired frequency band.
•Or, while pushing and hold-
ing [BAND] (
TS
•
LOCK
), rotate
[DIAL] to select the desired
frequency band.
e
While pushing and holding
[FUNC], push [BAND]
(
TS
•
LOCK
) momentarily to
enter tuning step set mode.
rRotate [DIAL] to select the
desired tuning step.
tPush [BAND] (
TS
•
LOCK
) to
return to VFO mode.
SCAN
SET
S.MW
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
[DIAL]
5 kHz tuning step
SCAN
SET
S.MW
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KI P
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KI P
MR
5
1
9
[DIAL] changes the fre-
quency according to the
selected tuning step.
While pushing [FUNC],
[DIAL] changes the frequen-
cy in 1 MHz steps (default).
[DIAL]
11
3
FREQUENCY AND CHANNEL SETTING
