![Icom IC-P7A [21/96] Battery charging](/img/pdf.png)
Icom IC-P7A [21/96] Battery charging
![Icom IC-P7A [21/96] Battery charging](/views2/1074434/page21/bg15.png)
8
2
BATTERY CHARGING
2
■ Battery charging

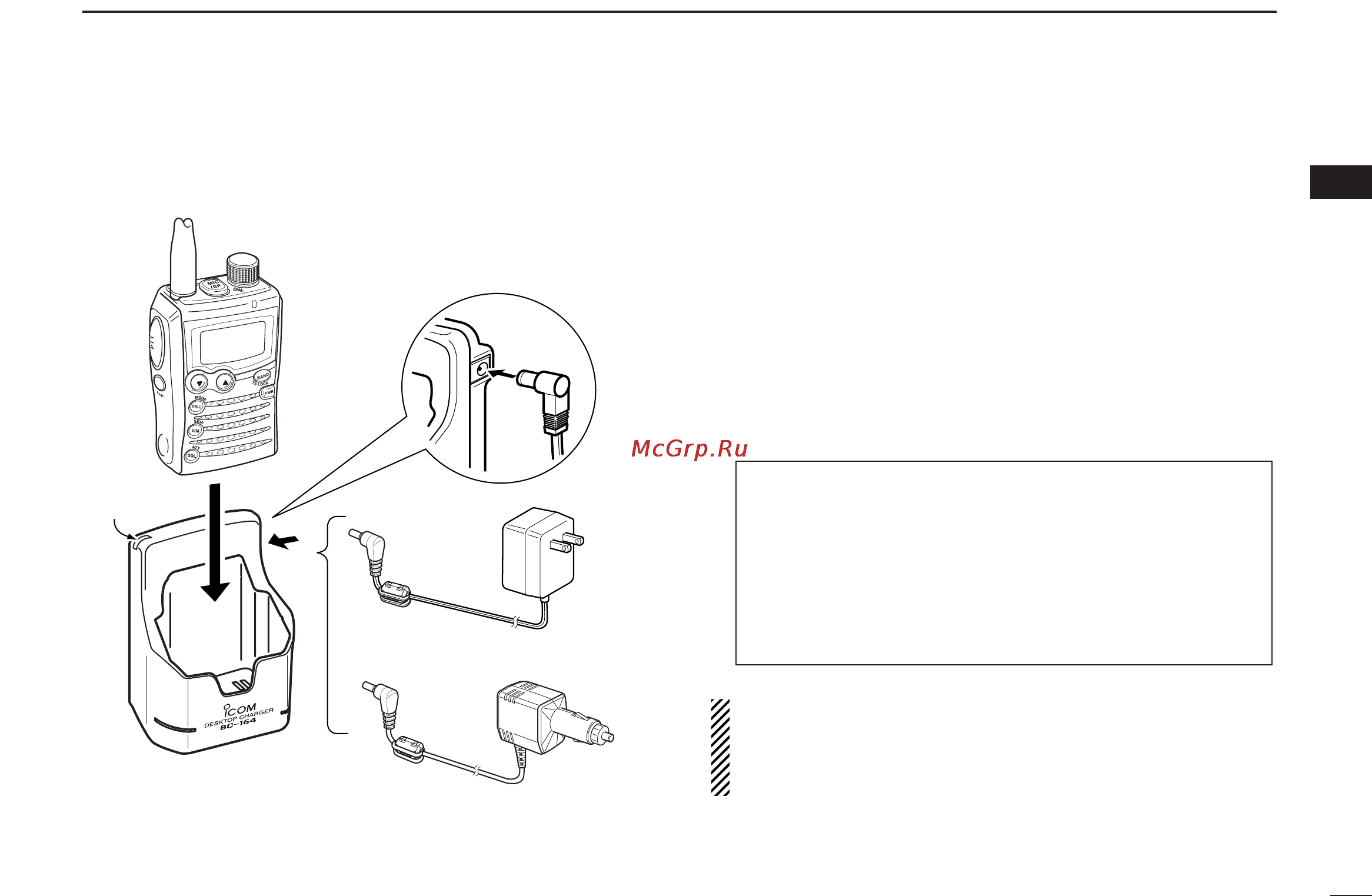

D Charging connections
• Charging periods: Approx. 3 hours
D Charging description
qPlug the AC adapter into an AC outlet; or the optional CP-
21LR into a cigarette lighter socket.
wInsert the adapter plug into [12~16V DC INPUT] of the BC-
164
BATTERY CHARGER
.
eInstall the BP-243
BATTERY PACK
(See left page) in the
transceiver
rBe sure to turn OFF the transceiver, then charge the bat-
tery with transceiver.
•Takes approximately 3 hours to fully charge with the supplied BP-
243 battery pack.
CAUTION: BE SURE to disconnect the CP-21LR from the
cigarette lighter socket when charging is finished, because,
a slight current still follows in the CP-21LR and the vehi-
cle’s battery will become will be drained.
Charging indicator of BC -164
Orange (lights) : During charging.
Green (lights) : When the battery pack is charged completely.
Red (blinking) : Thecharger may be outside of the specified
temperature range: +5˚C to +35˚C (+41˚F to
+95˚F). Restore the specified temperature
range and reinsert the transceiver or contact
your dealer.
BC-164
Charging
indicator
Transceiver
to [12~16V DC INPUT] jack
AC adapter
to cigarette
lighter socket
to AC outlet
S
C
A
N
S
E
T
S
.
M
W
Optional CP-21LR
Cigarette lighter cable
with noise filter
