OTHER FUNCTIONS
■ Auto power-off function
The IC-P7A can be set to automatically turn OFF after a spec-
ified period in which no operation is performed.
120 min., 90 min., 60 min., 30 min. and OFF can be specified.
The specified period is retained even when the transceiver is
turned OFF by the auto power-off function. To cancel the
function, select “OFF” in step e below.

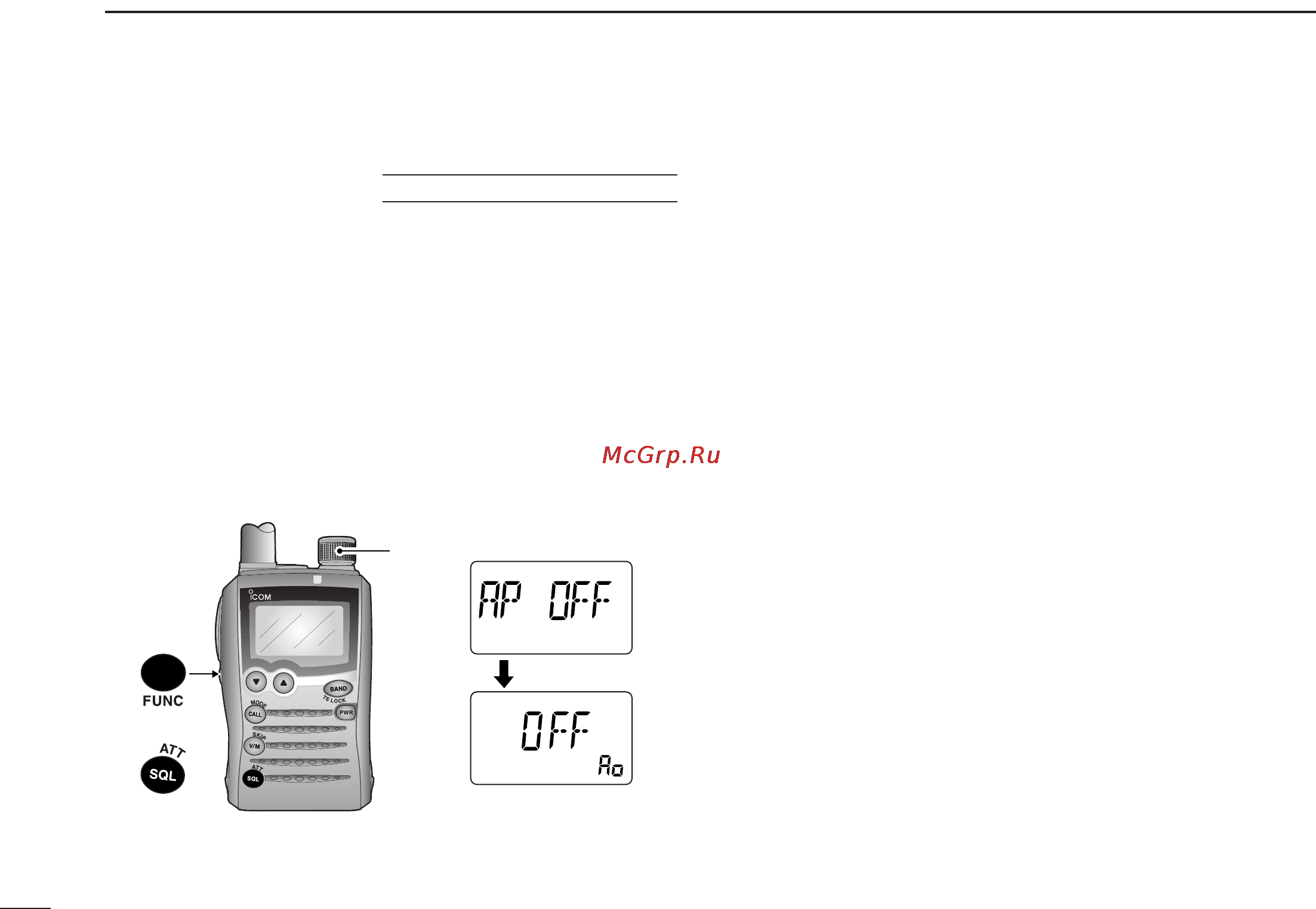

qWhile pushing and holding [FUNC], push and hold
[SQL] (
ATT
•
SET
) for 1 sec. to enter set mode.
wRotate [DIAL] to select “AP OFF.”
•Turn the expanded set mode ON for selection. (p. 39)
eWhile pushing and holding [FUNC], rotate [DIAL] to select
the desired time or to turn the function OFF.
rPush [SQL] (
ATT
•
SET
) to exit set mode.
■ TV channel operation
TV channel operation is available only when TV channels are pro-
grammed using the optional CS-P7
CLONING SOFTWARE
. (p. 61)
D TV channel receiving
q Push [V/M] (
SKIP
•
S
.
MW
) to select VFO mode, if necessary.
w Push [BAND] (
TS
•
LOCK
) several times to select the TV
channel band.
• “tV” and channel number appear.
•While pushing and holding [BAND] (
TS
•
LOCK
), rotating [DIAL]
also selects the TV channel band.
e Rotate [DIAL] to select the desired channel.
• While pushing and holding [FUNC], rotating [DIAL] selects the
all channels including skip channel.
D Skip channel setting
Unwanted channels can be skipped for rapid selection, etc.
q Rotate [DIAL] to select the channel to be skipped.
•To clear the skip setting, rotate [DIAL] while pushing and holding
[FUNC] to select a skip channel.
w While pushing and holding [FUNC], push [V/M]
(
SKIP
•
S
.
MW
) to toggle the skip setting ON and OFF.
• “SKIP” appears when the channel is set as skip channel.
D Automatic TV channel programming
TV channels can be programmed automatically.
➥ Push and hold [CALL] (
MODE
•
SCAN
) for 1 sec. to start TV
channel programming.
• The programming will automatically stop when scanning all
channels.
