Icom IC-P7A [72/96] Set mode
![Icom IC-P7A [72/96] Set mode](/views2/1074434/page72/bg48.png)
59
10
SET MODE
DD

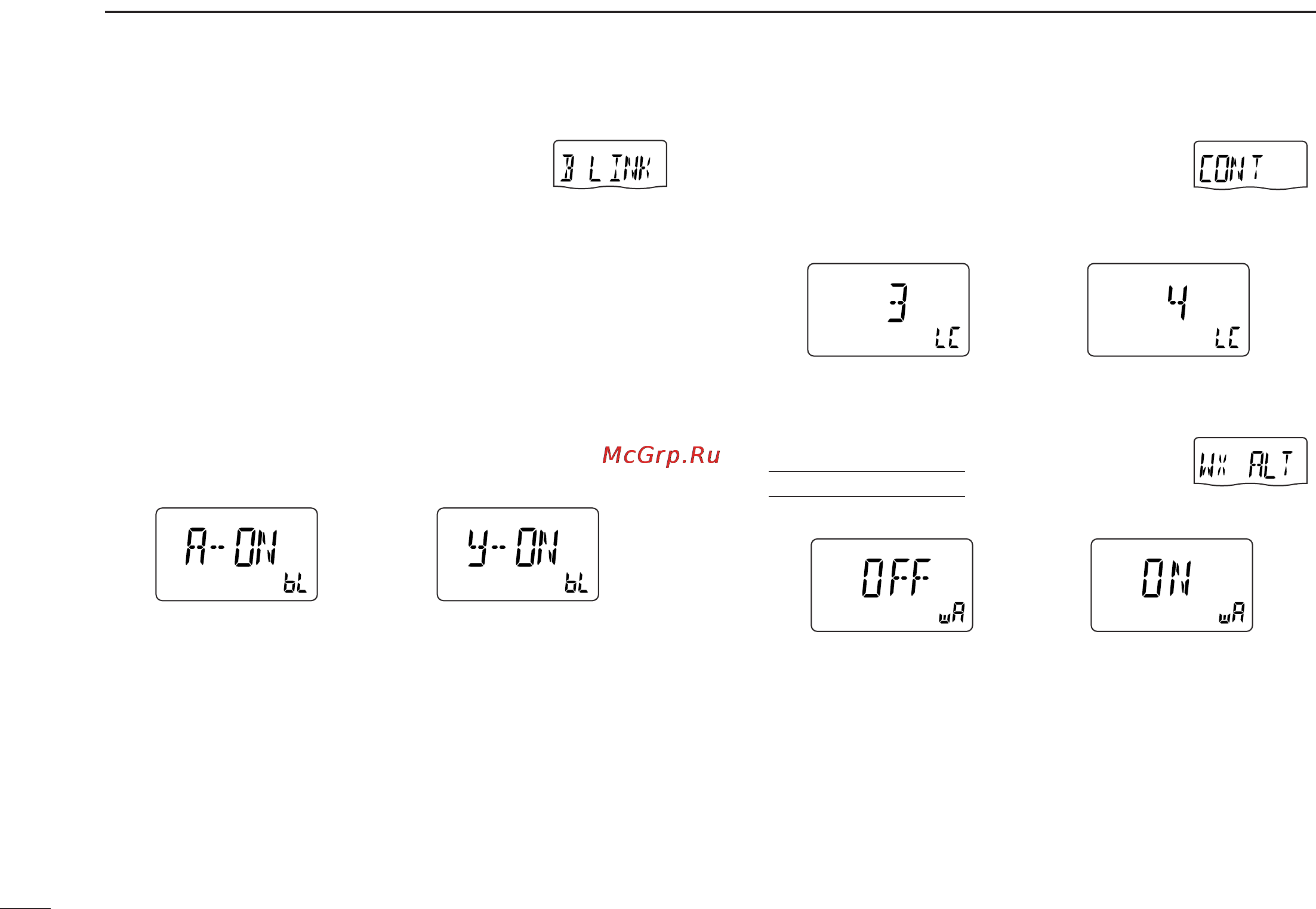

Memory bank link function
Sets the memory bank link function ON (de-
fault) and OFF. The link function provides
continuous bank scan, scanning all contents
in the selected banks during bank scan.
• Bank link setting
q While pushing and holding [FUNC], rotate [DIAL] to select
the desired bank to be linked.
• “A-ON” to “y-ON” appears.
• A to H, J, L, N, O to R, T, U and y are available for usage by
group
w Push [CALL] (
MODE
•
SCAN
) to select “ON” to link the bank.
e Repeat steps q and w to link other banks.
•To cancel the memory bank link function, repeat steps q and
w to select “OFF.”
DD
LCD contrast
Sets the LCD contrast within 1 to 4 levels as
desired.
(default: 3)
DD
Weather alert function
Turns weather alert function ON and OFF.
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
Weather alert OFF Weather alert ON
U.S.A. version only
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
Contrast 3 setting Contrast 4 setting
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
Bank A is linked Bank Y is linked
