FREQUENCY AND CHANNEL SETTING
3

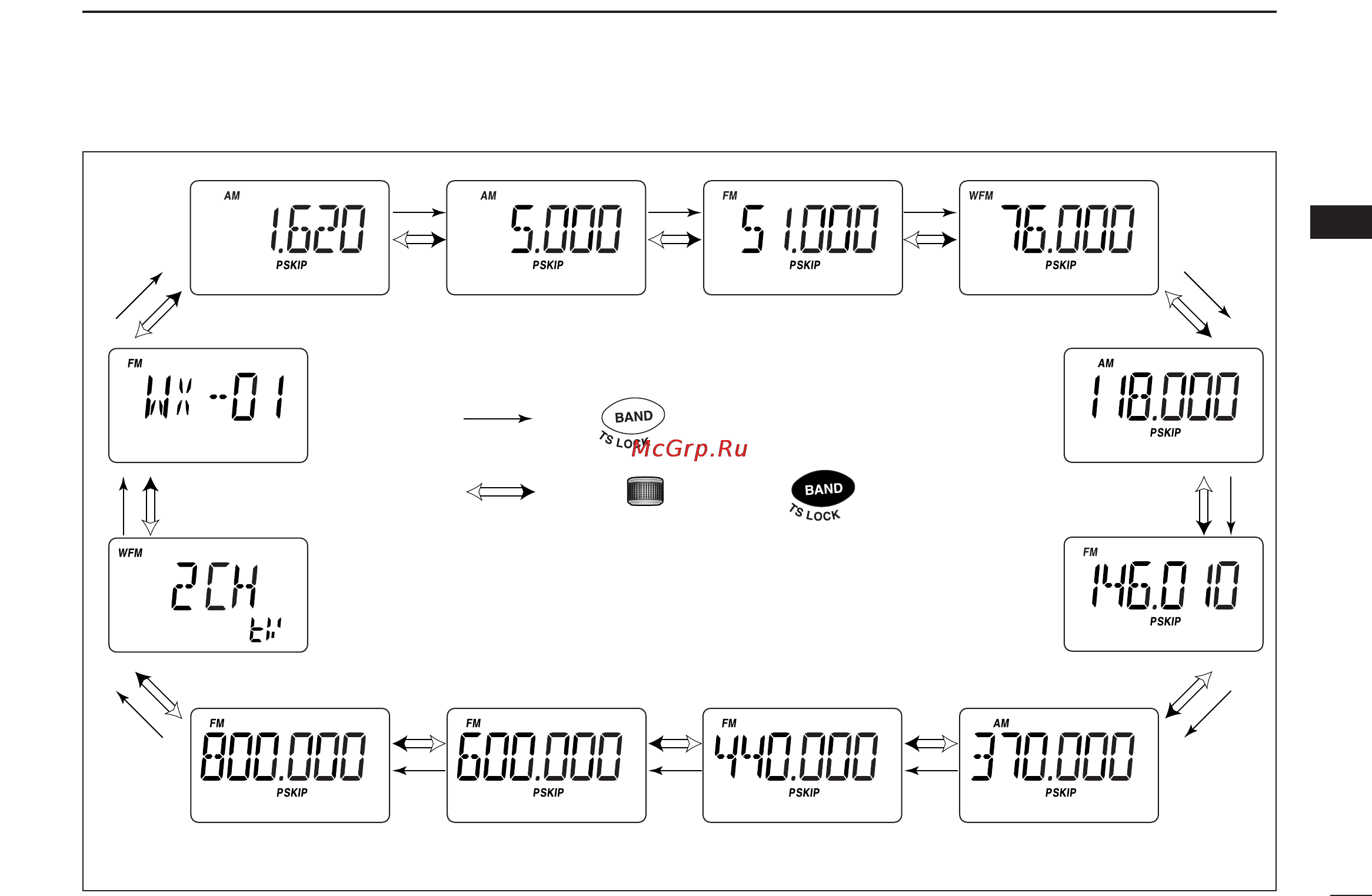

• Available frequency bands
AM broadcast band HF band 50 MHz band
600 MHz band800 MHz band 400 MHz band
FM broadcast band
VHF air band
144 MHz band
300 MHz band
Weather channels*
TV channels
†
: Push
: Rotating while pushing
Initial frequencies shown differ according to version.
*Available for the USA version only
†
Appears only when TV channels are programmed using the
optional CS-P7.
