32
6
MEMORY/CALL CHANNELS

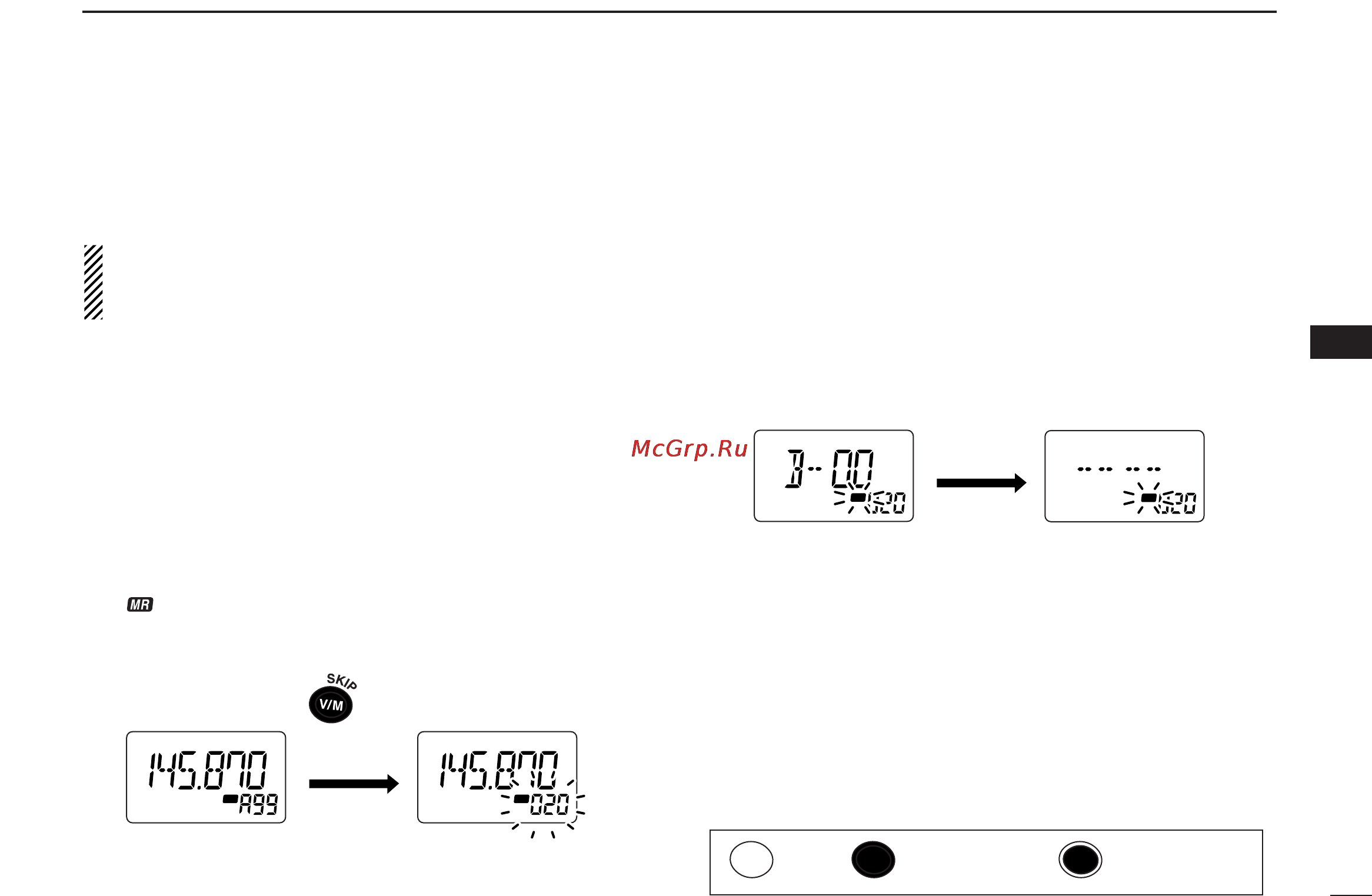

■ Erasing/transferring bank contents
The bank contents of programmed memory channels can be
cleared or reassigned to another memory bank.
INFORMATION: Even if the memory bank contents are
cleared, the memory channel contents still remain pro-
grammed.
qSelect the desired bank contents to be transferred or
erased from the bank.
➥ Push [V/M] (
SKIP
•
S
.
MW
) to select memory mode.
➥ While pushing and holding [BAND] (
TS
•
LOCK
), rotate
[DIAL] to select the desired memory bank.
➥ Rotate [DIAL] to select the bank channel.
wPush and hold [V/M] (
SKIP
•
S
.
MW
) for 1 sec. to enter select
memory write mode.
•1 short and 1 long beeps sound.
• Displays the original memory channel number automatically and
“” indicator and memory channel number blink.
• Do not hold [V/M] (
SKIP
•
S
.
MW
) for more than 2 sec. otherwise the
bank contents will be copied to VFO.
eWhile pushing and holding [CALL] (
MODE
•
SCAN
), rotate
[DIAL] to select “BANK.”
• Pushing [CALL] (
MODE
•
SCAN
) several times, “BANK” is also se-
lectable.
rWhile pushing and holding [BAND] (
TS
•
LOCK
), rotate
[DIAL] to select the desired bank to receive the transferred
information or erase the bank contents.
• Select “-- -- -- --” indication when erasing the contents from the
bank.
tRotate [DIAL] to select the desired bank channel.
yWhile pushing and holding [CALL] (
MODE
•
SCAN
), rotate
[DIAL] to select “S.MW.”
• Pushing [CALL] (
MODE
•
SCAN
) several times, “S.MW” is also se-
lectable.
uPush and hold [V/M] (
SKIP
•
S
.
MW
) for 1 sec.
•3 beeps sound.
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
When transferring When erasing
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
Push for 1 sec.
S.MW
6
Push Push and hold Dual operation
