19
REPEATER OPERATION
5
When using a repeater, the transmit frequency is shifted from
the receive frequency by the amount of the offset frequency. It
is convenient to program repeater information, such as offset
and access tone, into memory channels.
qSet the receive frequency (repeater output frequency).
wSet the shift direction of the transmit offset frequency. (–DUP
or +DUP; see the next section for details.)
• “–DUP” or “+DUP” indicates a minus or plus offset of the transmit
frequency, respectively.
• When the auto repeater function is in use (USA/KOREA versions
only), this selection and step e are not necessary. (p. 23)
eActivate the subaudible tone encoder, according to re-
peater requirements.
• Refer to page 21 for tone frequency settings.
rPush and hold [PTT] to transmit.
• The displayed frequency automatically changes to the transmit
frequency (repeater input frequency).
• If “OFF” appears, check the offset frequency (see next page for
details) or shift direction (see section at right).
tRelease [PTT] to receive.
yPush and hold [SQL] (
ATT
•
SET
) to check whether the other
station’s transmit signal can be received directly on the re-
peater’s input frequency.
DD

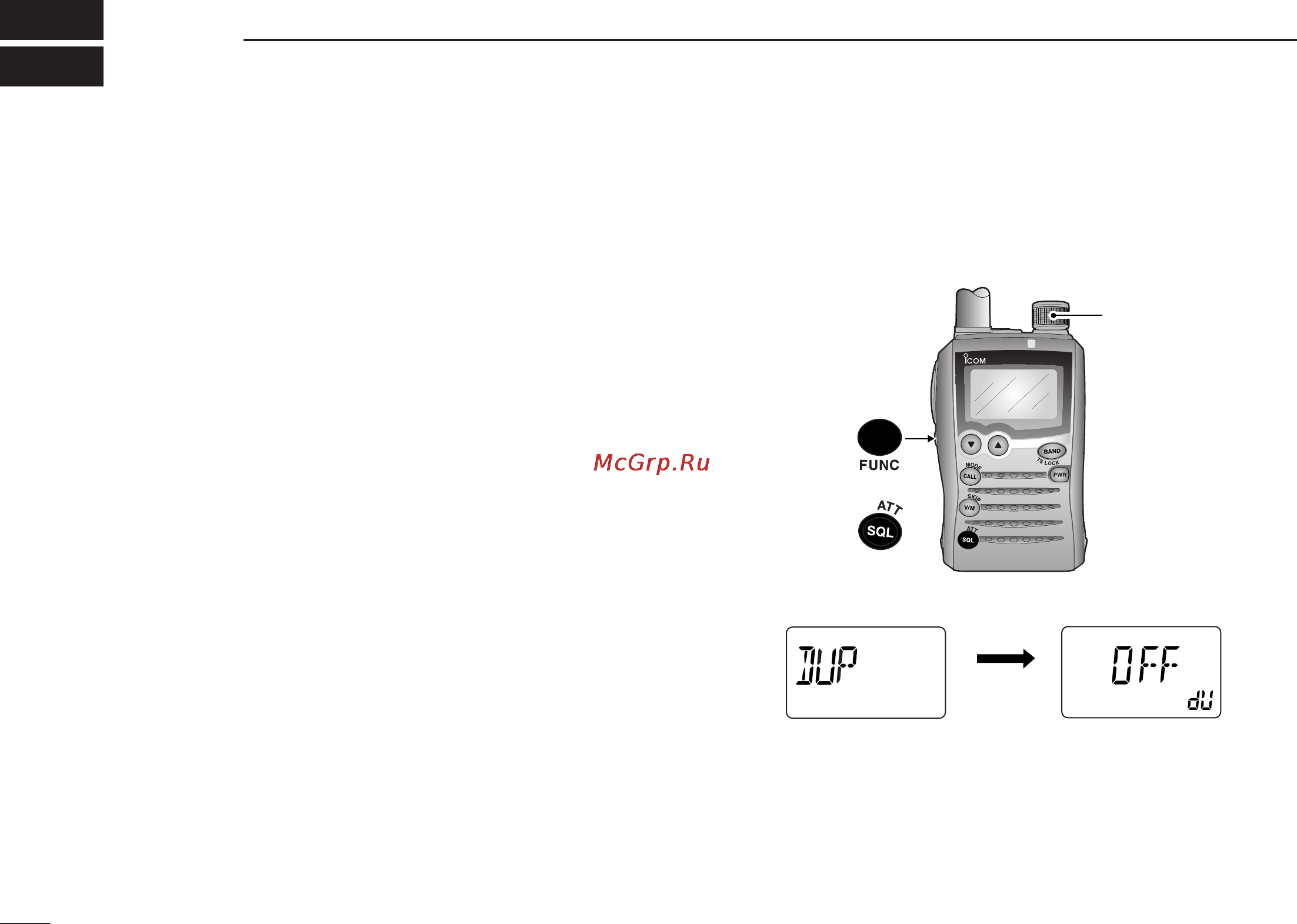

Setting duplex and duplex direction
qWhile pushing and holding [FUNC], push and hold
[SQL] (
ATT
•
SET
) for 1 sec. to enter set mode.
wRotate [DIAL] to select “DUP.”
eWhile pushing and holding [FUNC], rotate [DIAL] to select
“–DUP” or “+DUP.”
rPush [SQL] (
ATT
•
SET
) to exit set mode.
tPush and hold [SQL] (
ATT
•
SET
) to monitor the repeater
input frequency.
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
After 1 sec.
Duplex item Setting indication
SCAN
S.MW
SET
[DIAL]
SET
