22
5
REPEATER OPERATION
5
DD

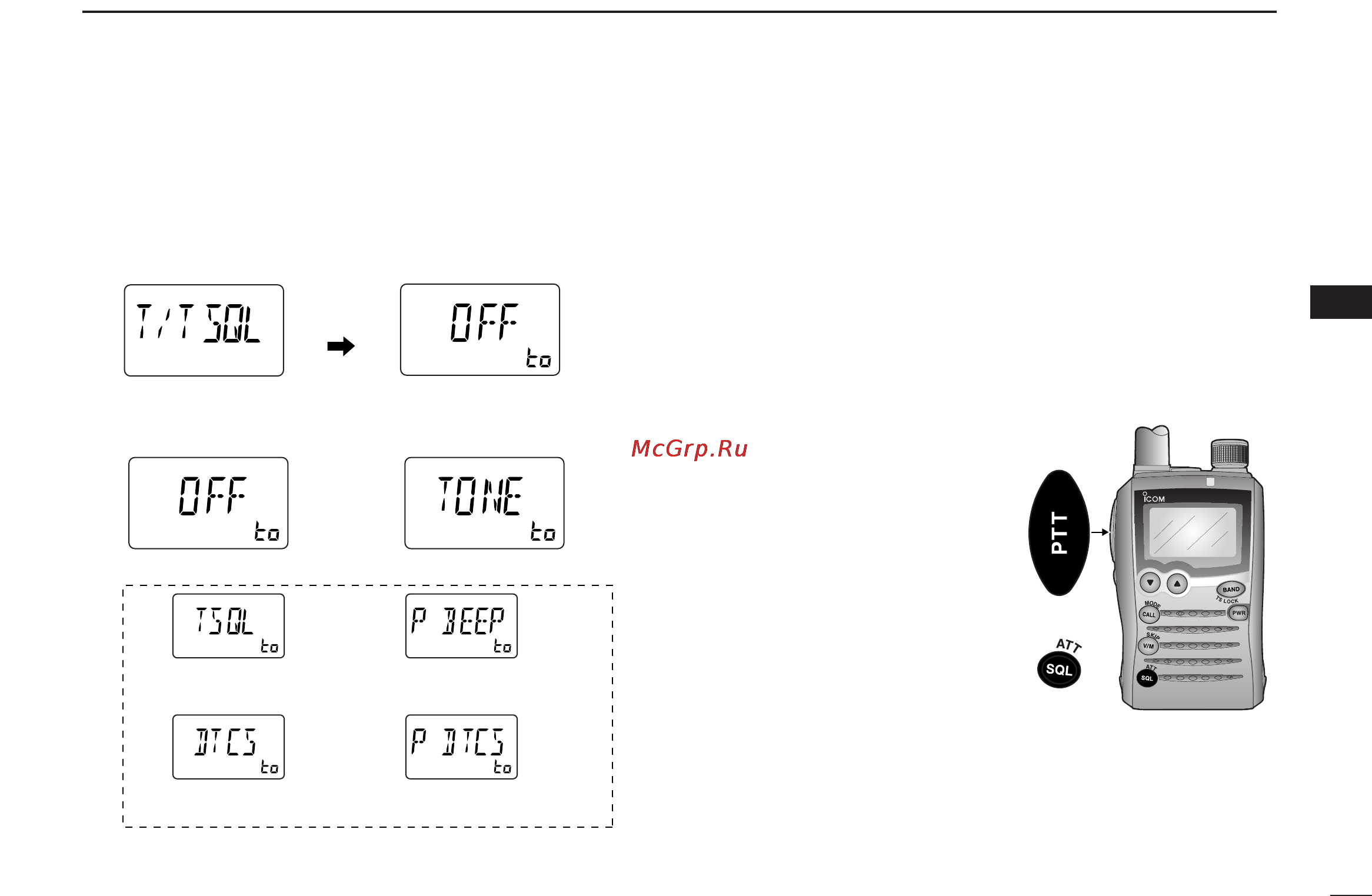

Setting the subaudible tone encoder ON/OFF
qWhile pushing and holding [FUNC], push and hold
[SQL] (
ATT
•
SET
) for 1 sec. to enter set mode.
wRotate [DIAL] to select “T/TSQL.”
eWhile pushing and holding [FUNC], rotate [DIAL] to select
the repeater tone from “TONE” or “OFF.”
rPush [SQL] (
ATT
•
SET
) to exit set mode.
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KIP
MR
5
1
9
Tone squelch with pocket
beep function selection
DTCS with pocket beep
function selection
Subaudible tone OFF
Tone squelch
selection
DTCS selection
Repeater tone selection
Tone
decoder
selections
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KIP
MR
5
1
9
After
1 sec.
Some European repeaters require a 1750 Hz tone burst to be
accessed. For such European repeaters, perform the follow-
ing.
qSet the receive frequency (repeater output frequency).
wSet the shift direction of the transmit frequency. (–DUP or
+DUP; see p. 19 for details.)
• “–DUP” or “+DUP” indicates a minus or plus offset of the transmit
frequency, respectively.
eWhile pushing and holding
[PTT], push and hold
[SQL] (
ATT
•
SET
) for 1 to 2
sec. to transmit a 1750 Hz
tone burst signal.
• The displayed frequency auto-
matically changes to the trans-
mit frequency (repeater input
frequency).
• If “OFF” appears, check the off-
set frequency (see p. 20 for de-
tails) or shift direction (p. 19).
rPush and hold [PTT] to trans-
mit.
tRelease [PTT] to receive.
yPush and hold [SQL] (
ATT
•
SET
) to monitor the repeater
input frequency.
SCAN
S.MW
SET
SET
■ 1750 Hz tone
