This transceiver has a 1 MHz tuning step for quick frequency
setting. This dial select step can be set to 100 kHz, 1 MHz or
10 MHz steps, as desired.
DD

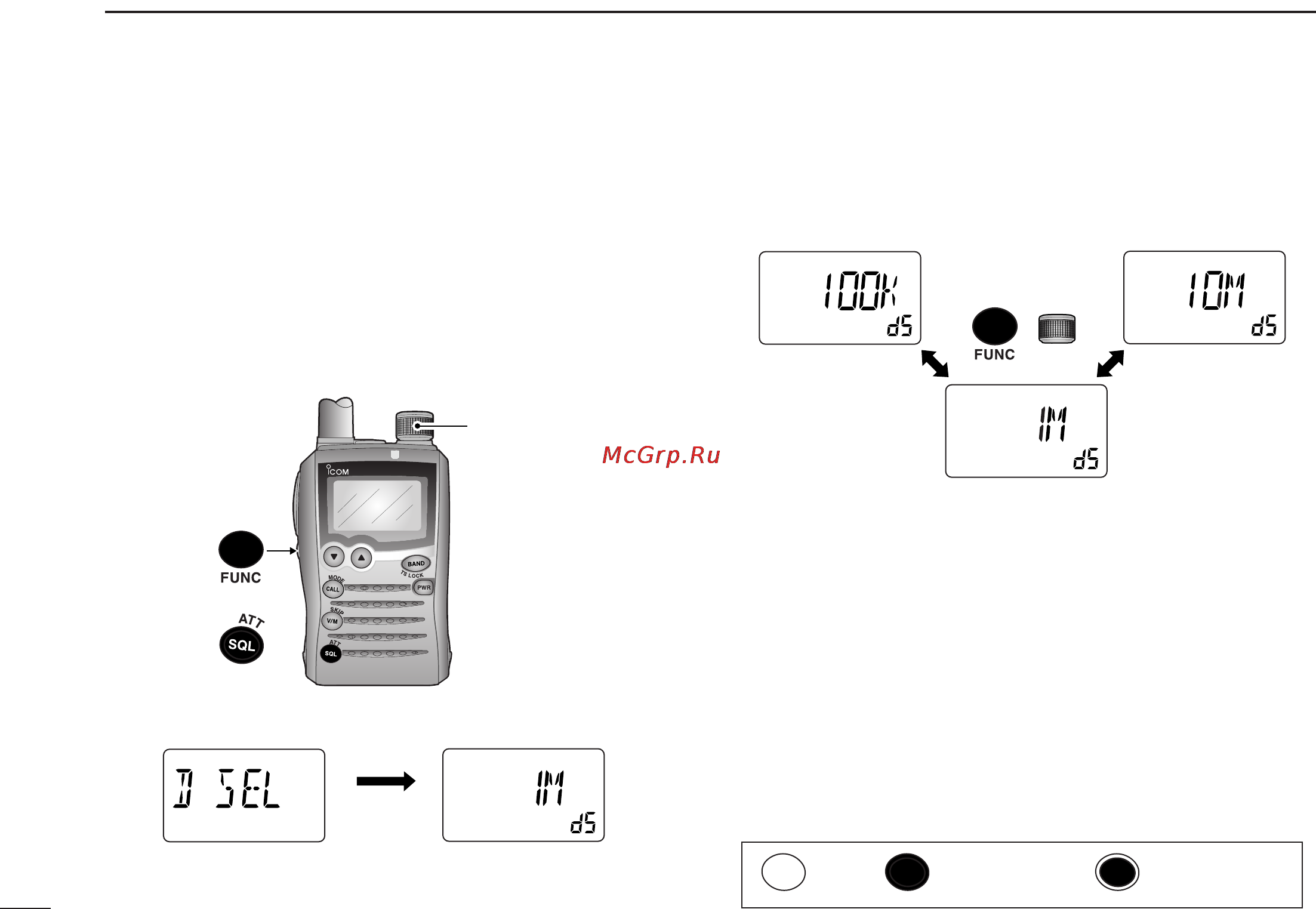

Setting dial select step
qSelect VFO mode with [V/M] (
SKIP
•
S
.
MW
).
wWhile pushing and holding [FUNC], push and hold
[SQL] (
ATT
•
SET
) for 1 sec. to enter set mode.
eRotate [DIAL] to select “D SEL.”
rWhile pushing and holding [FUNC], rotate [DIAL] to select
the desired dial select step.
tPush [SQL] (
ATT
•
SET
) momentarily to exit set mode.
