64
11
OTHER FUNCTIONS

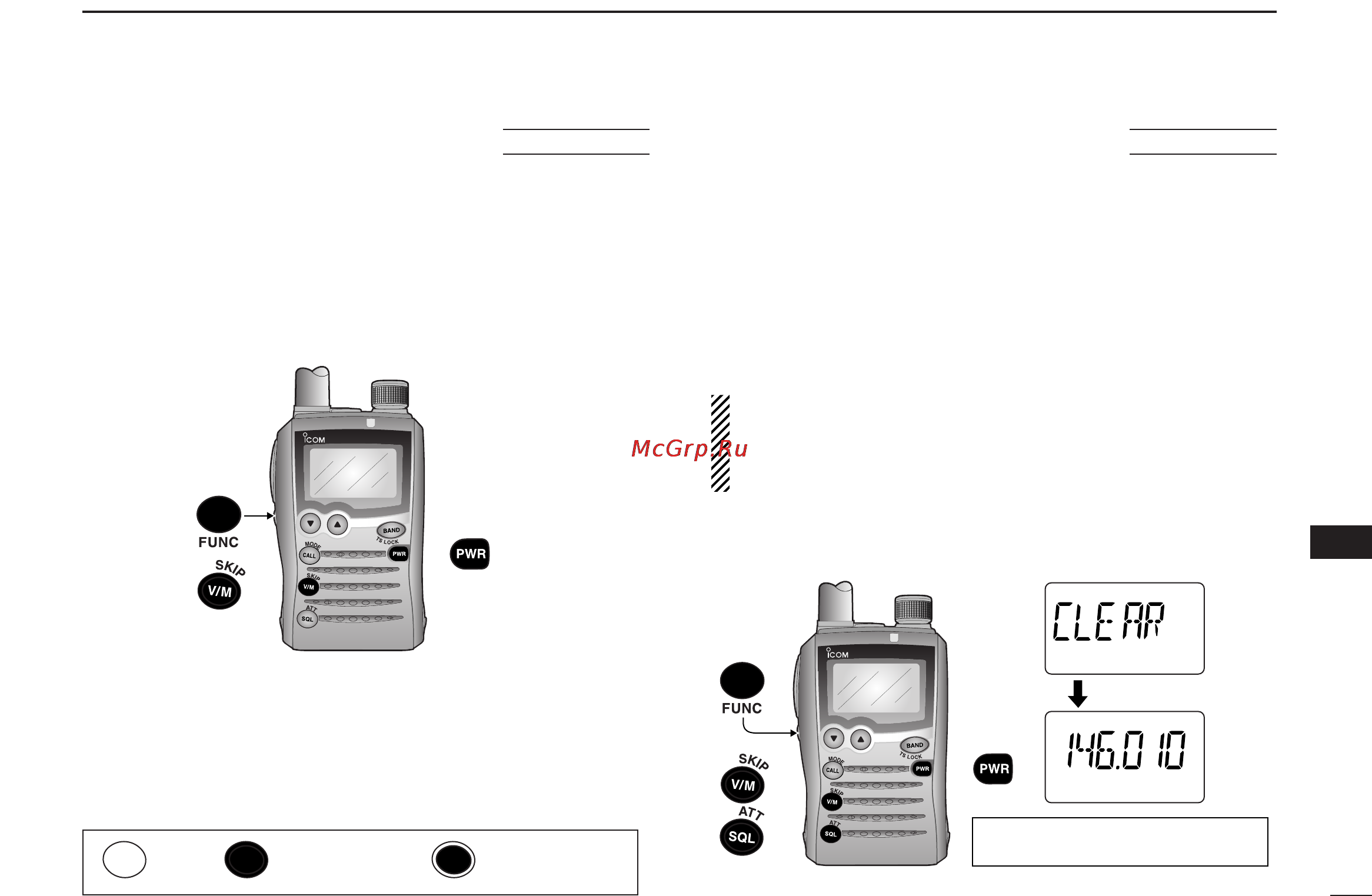

■ Partial reset
If you want to initialize the operating conditions (VFO fre-
quency, VFO settings, set mode contents) without clearing
the memory contents, a partial reset function is available for
the transceiver.
➥ While pushing and holding [FUNC] and [V/M] (
SKIP
•
S
.
MW
),
turn the power ON to partially reset the transceiver.
■ All reset
The function display may occasionally display erroneous in-
formation (e.g. when first applying power). This may be
caused externally by static electricity or by other factors.
If this problem occurs, turn power OFF. After waiting a few
seconds, turn power ON again. If the problem persists, per-
form the following procedure.
• Partial resetting is also available. See left for details.
IMPORTANT!:
Resetting the transceiver CLEARS all memory information
and initializes all values in the transceiver, including TV
channel skip setting.
➥ While pushing and holding [FUNC], [V/M] (
SKIP
•
S
.
MW
) and
[SQL] (
ATT
•
SET
), turn the power ON to reset the CPU.
SCAN
S.MW
SET
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KIP
MR
5
1
9
SET
S.MW
*The displayed frequency differs
according to tranceiver version.
AT
POWER ON
SCAN
S.MW
SET
S.MW
AT
POWER ON
11
Push Push and hold Dual operation
