Icom IC-P7A [73/96] Other functions
![Icom IC-P7A [73/96] Other functions](/views2/1074434/page73/bg49.png)
60
11
OTHER FUNCTIONS
DD
Weather channel selection
qSelect VFO mode with [V/M] (
SKIP
•
S
.
MW
).
wPush [BAND] (
TS
•
LOCK
) several times, or while pushing
and holding [BAND] (
TS
•
LOCK
) rotate [DIAL] to select the
weather channel group.
eRotate [DIAL] to select the desired weather channel.
rPush [BAND] (
TS
•
LOCK
) to change frequency band, or
push [V/M] (
SKIP
•
S
.
MW
) to select memory mode.
DD
Weather alert function
NOAA broadcast stations transmit weather alert tones before
important weather announcements. When the weather alert
function is turned ON, the selected weather channel is moni-
tored once every 5 sec. for the announcement. When the alert
signal is detected, the “AL.T” and the WX channel are dis-
played alternately and sounds a beep tone until the transceiver
is operated. The previously selected (used) weather channel
is checked periodically during standby or while scanning.
qSelect the desired weather channel.
wTurn the weather alert function ON in expanded set mode.
➥ While pushing and holding [FUNC], push and hold
[SQL] (
ATT
•
SET
) to enter set mode.
➥ Rotate [DIAL] to select “WX ALT,” then rotate [DIAL]
while pushing and holding [FUNC] to set ON.
➥ Push [SQL] (
ATT
•
SET
) to exit set mode.
SCAN
S.MW
SET
SET
[DIAL]
SCAN
S.MW
SET
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KIP
MR
5
1
9

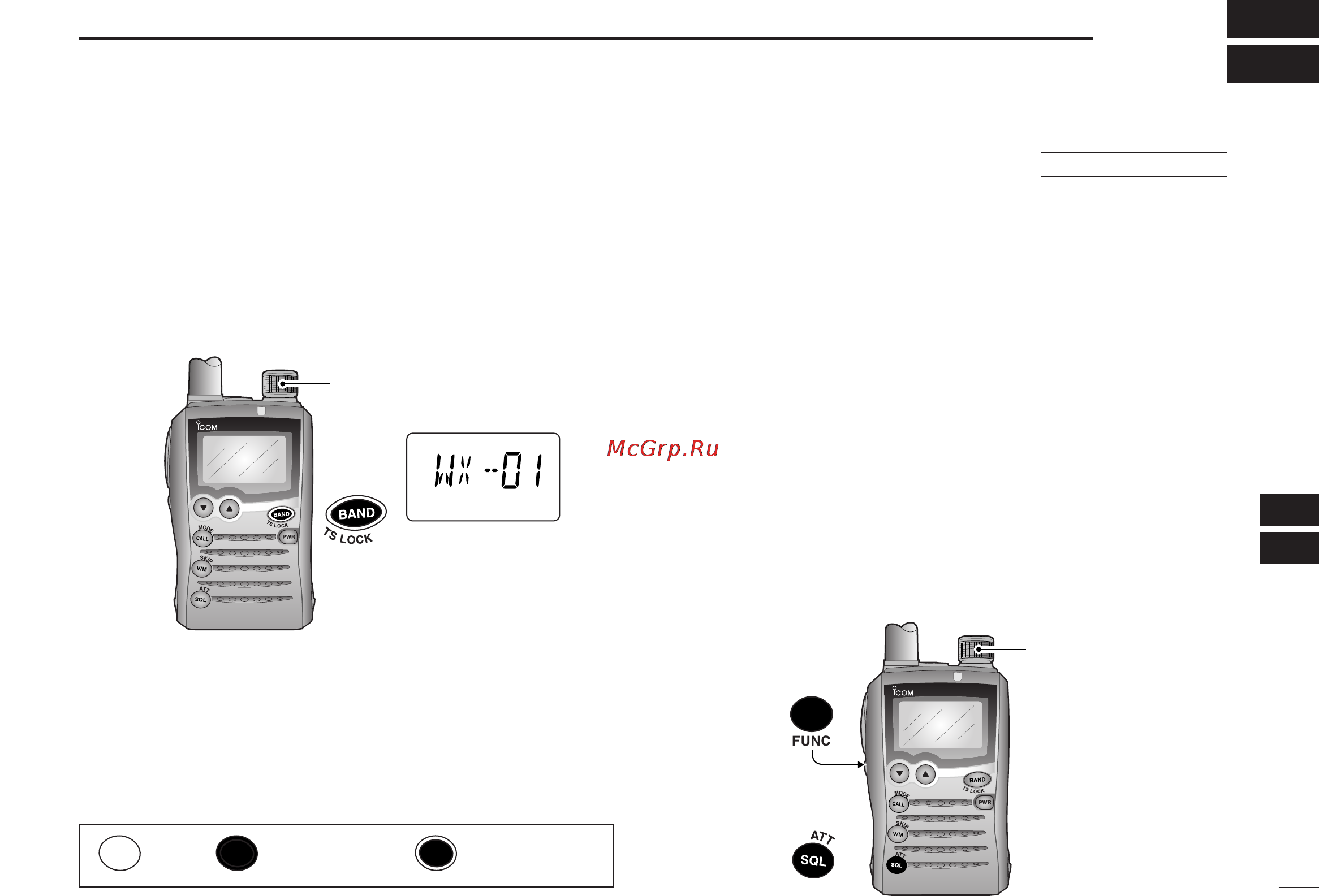

Weather channel indication
[DIAL]
10
11
■ Weather channel operation
U.S.A. version only
Push Push and hold Dual operation
