Icom IC-P7A [37/96] Memory call channels
![Icom IC-P7A [37/96] Memory call channels](/views2/1074434/page37/bg25.png)
24
6
MEMORY/CALL CHANNELS
■ General description
The IC-P7A has 1050 memory channels including 50 scan
edge memory channels (25 pairs) for storage of often-used
frequencies. And a total of 18 memory banks, A to H, J, L, N,
O to R, T, U and Y are available for storing groups of fre-
quencies, etc. Up to 100 channels can be assigned into a
bank.
DD
Memory channel contents
The following information can be programmed into memory
channels:
• Operating frequency (p. 11)
• Operating mode (p. 14)
• Duplex direction (DUP or –DUP) with an offset frequency
(pgs. 19, 20)
• Subaudible tone encoder (p. 22), tone squelch or DTCS
squelch ON/OFF (p. 45)
• Subaudible tone frequency (p. 21), tone squelch fre-
quency or DTCS code with polarity (pgs. 46, 47)
• Scan skip information (p. 39).
■
Memory channel programming
qPush [V/M] (
SKIP
•
S
.
MW
) to select VFO mode.
wSet the desired frequency:
➥ Select the desired band with [BAND] (
TS
•
LOCK
).
➥ Set the desired frequency with [DIAL].
➥ Set other data
(e.g. offset frequency, duplex direction, sub-
audible tone frequency, etc.), if desired.
ePush and hold [V/M] (
SKIP
•
S
.
MW
) for 1 sec. to enter select
memory write mode.
•1 short and 1 long beep sound.
•“ ” indicator and memory channel number blink.
rRotate [DIAL] to select the desired channel.
•Call channels (C0, C1), VFO (VF) and scan edge channels
(00A/00b to 24A/24b), as well as regular memory channels, can
be programmed in this way.
• While pushing and holding [FUNC], rotate [DIAL] to select mem-
ory channel in 10 channel steps.
tPush and hold [V/M] (
SKIP
•
S
.
MW
) for 1 sec.
•3 beeps sound
• Memory channel number automatically increases when contin-
uing to push [V/M] (
SKIP
•
S
.
MW
) after programming.

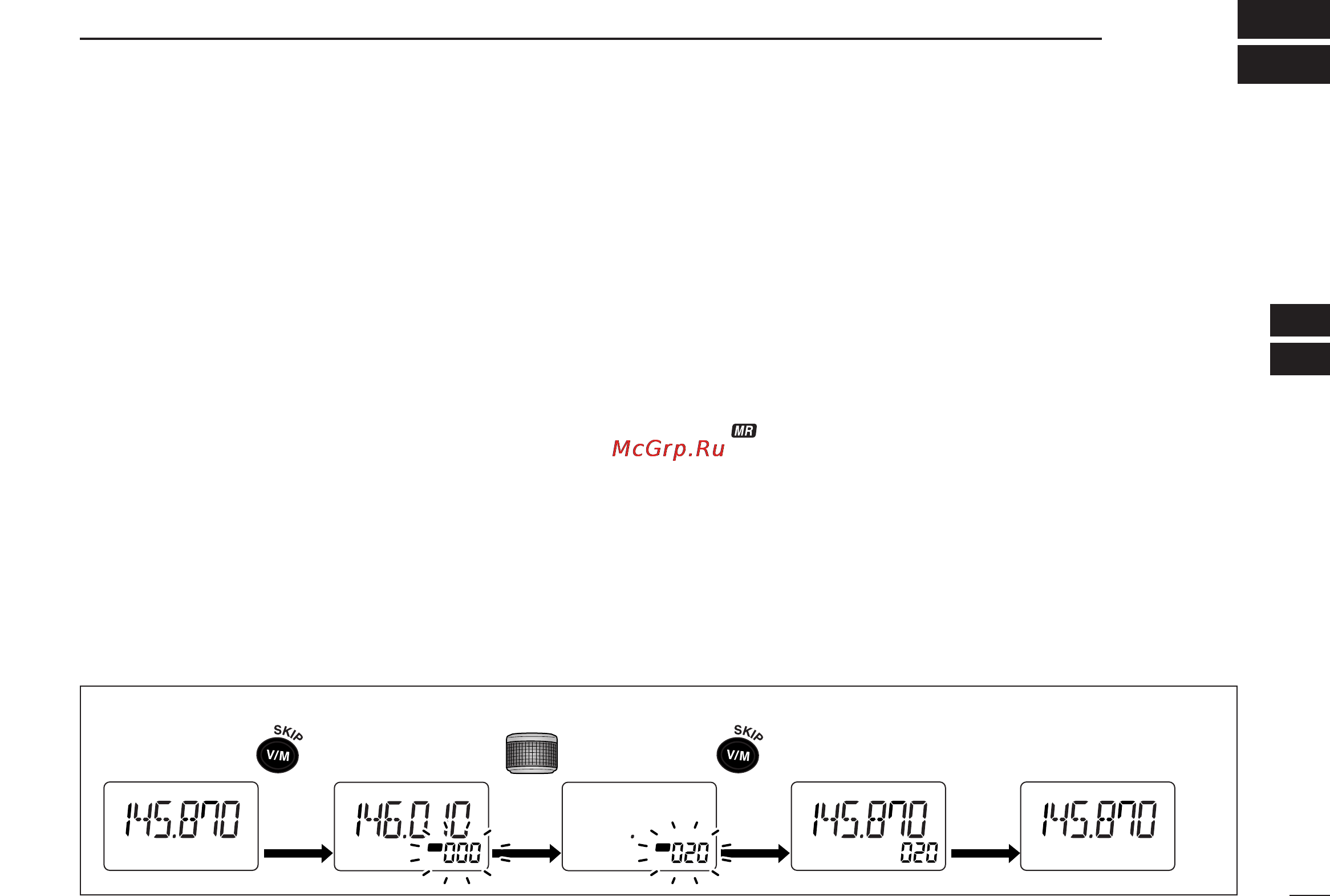

[EXAMPLE]: Programming 145.870 MHz into memory channel 20 (blank channel).
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
Push for 1 sec.
Rotate
S.MW
Push for 1 sec.
S.MW
5
6
