49
SET MODE
10
■ General
Set mode is used for programming infrequently changed val-
ues or conditions of functions.
In addition, the IC-P7A has an expanded set mode which is
used for programming even more infrequently changed val-
ues or conditions of functions. When turning the expanded
set mode OFF, only half of the set mode items are displayed
for simple operation.
DD
Set mode entering and operation
qWhile pushing and holding [FUNC], push and hold
[SQL] (
ATT
•
SET
) for 1 sec. to enter set mode.
wRotate [DIAL] to select the desired item.
eWhile pushing and holding [FUNC], rotate [DIAL] to select
the desired value or condition.
rPush [SQL] (
ATT
•
SET
) to exit set mode, or rotate [DIAL] to
select another set mode item.
DD

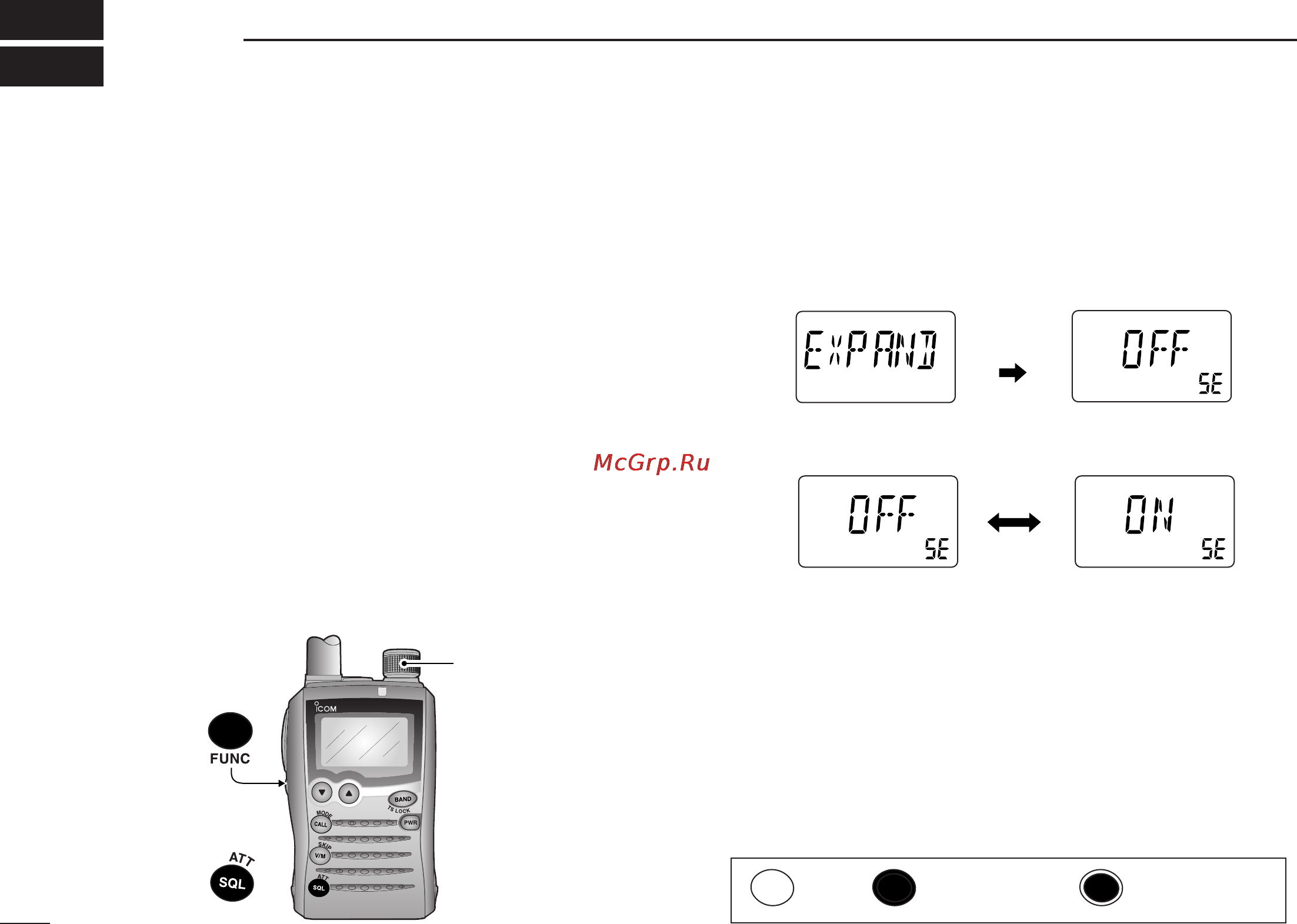

Expanded set mode ON/OFF
qWhile pushing and holding [FUNC], push and hold
[SQL] (
ATT
•
SET
) for 1 sec. to enter set mode.
wRotate [DIAL] to select “EXPAND.”
eWhile pushing and holding [FUNC], rotate [DIAL] to turn
the expanded set mode ON and OFF.
rRotate [DIAL] to select the desired item.
tWhile pushing and holding [FUNC], rotate [DIAL] to select
the desired value or condition.
yPush [SQL] (
ATT
•
SET
) to exit set mode, or rotate [DIAL] to
select another item.
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
Expanded set mode OFF Expanded set mode ON
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KIP
MR
5
1
9
After
1 sec.
SCAN
S.MW
SET
SET
[DIAL]
Push Push and hold Dual operation
