61
11
OTHER FUNCTIONS
eSet the desired stand-by condition.
• Select VFO or memory channel.
• Scan or priority watch operation can also be selected.
rWhen the alert is detected, a beep sounds and the follow-
ing indication will be displayed.
t Turn the weather alert function OFF in set mode.
NOTE: While receiving a signal (on a frequency other than
the weather alert ON frequency), the receiving signal or
audio will be interrupted momentarily every 5 sec.
(approx.)
in case the alert function is turned ON. This symptom is
caused by the WX alert function. To cancel these symp-
toms, set the weather alert item OFF in set mode.

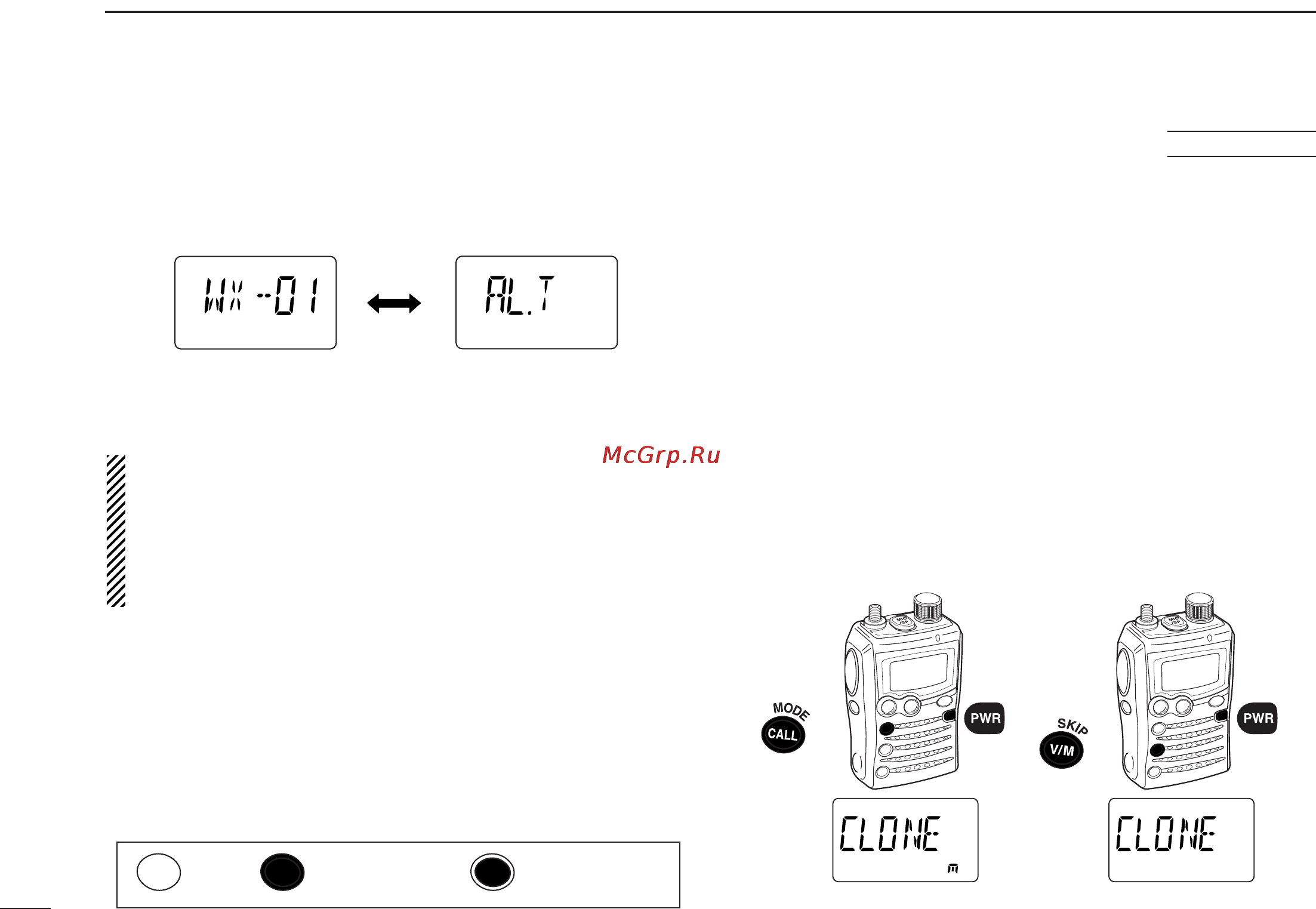

■ Data cloning
Cloning allows you to quickly and easily transfer the pro-
grammed contents from one transceiver to another; or data
from a personal computer to a transceiver using the optional
CS-P7
CLONING SOFTWARE
.
D Cloning between transceivers
qMaster transceiver:
While pushing and holding [CALL] (
MODE
•
SCAN
), turn
power ON to enter cloning mode.
• The master transceiver is used to send data to the sub-trans-
ceiver.
Sub-transceiver:
While pushing and holding [V/M] (
SKIP
•
S
.
MW
), turn power
ON to enter cloning mode.
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
Master
transceiver
Sub-
transceiver
SCAN
S.MW
“CLONE” and “m” appear “CLONE” appears
AT
POWER ON
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP SK I P
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP SK I P
MR
5
1
9
Show above indications alternately.
Push Push and hold Dual operation
