SCAN OPERATION
You can set the selected memory channel as a skip channel
which is skipped during memory skip scan. In addition, it can
be set as a skip channel for both memory skip scan and fre-
quency skip scan. These are useful to speed up the scan in-
terval.
qSelect a memory channel:
➥ Push [V/M] (
SKIP
•
S
.
MW
) to select memory mode.
➥ Rotate [DIAL] to select the desired channel to be a skip
channel/frequency.
wPush and hold [V/M] (
SKIP
•
S
.
MW
) for 1 sec. to enter select
memory write mode.
ePush [CALL] (
MODE
•
SCAN
) several times to select “SKIP.”
• While pushing and holding [CALL] (
MODE
•
SCAN
), rotating [DIAL]
can also select “SKIP.”
rRotate [DIAL] to select the skip condition from “SKIP,”
“PSKIP” or “OFF” for the selected channel.
• OFF : The channel or programmed frequency is scanned dur-
ing any scan.
• SKIP : The channel is skipped during memory or bank scan.
• PSKIP : The channel is skipped during memory/bank scan and
the programmed frequency is skipped during VFO scan,
such as programmed scan.
SCAN
S.MW
SET
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9

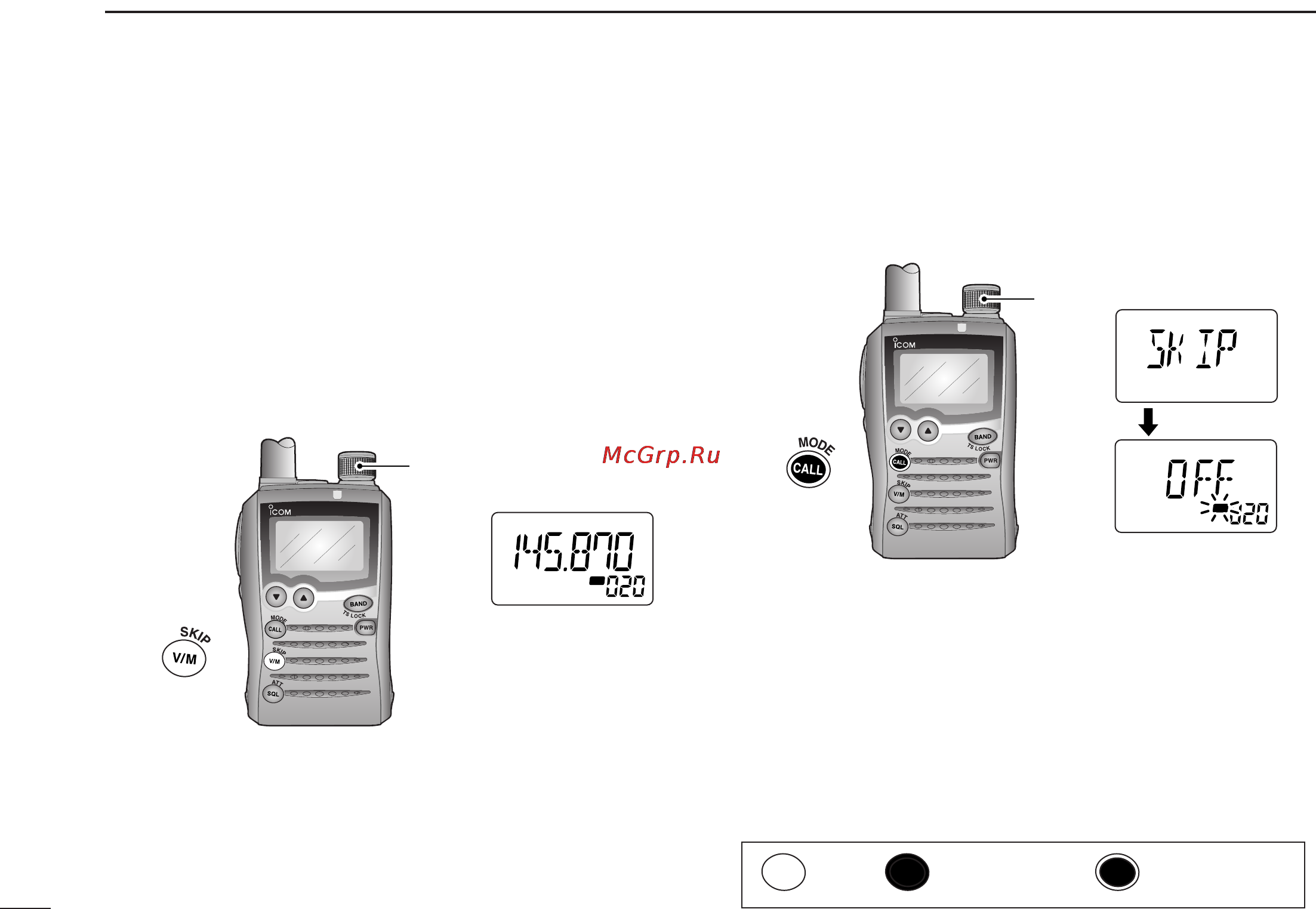

• Skip setting
