50
10
SET MODE
■ Set mode items
The following items are available in the set mode and ex-
panded set mode.
DD

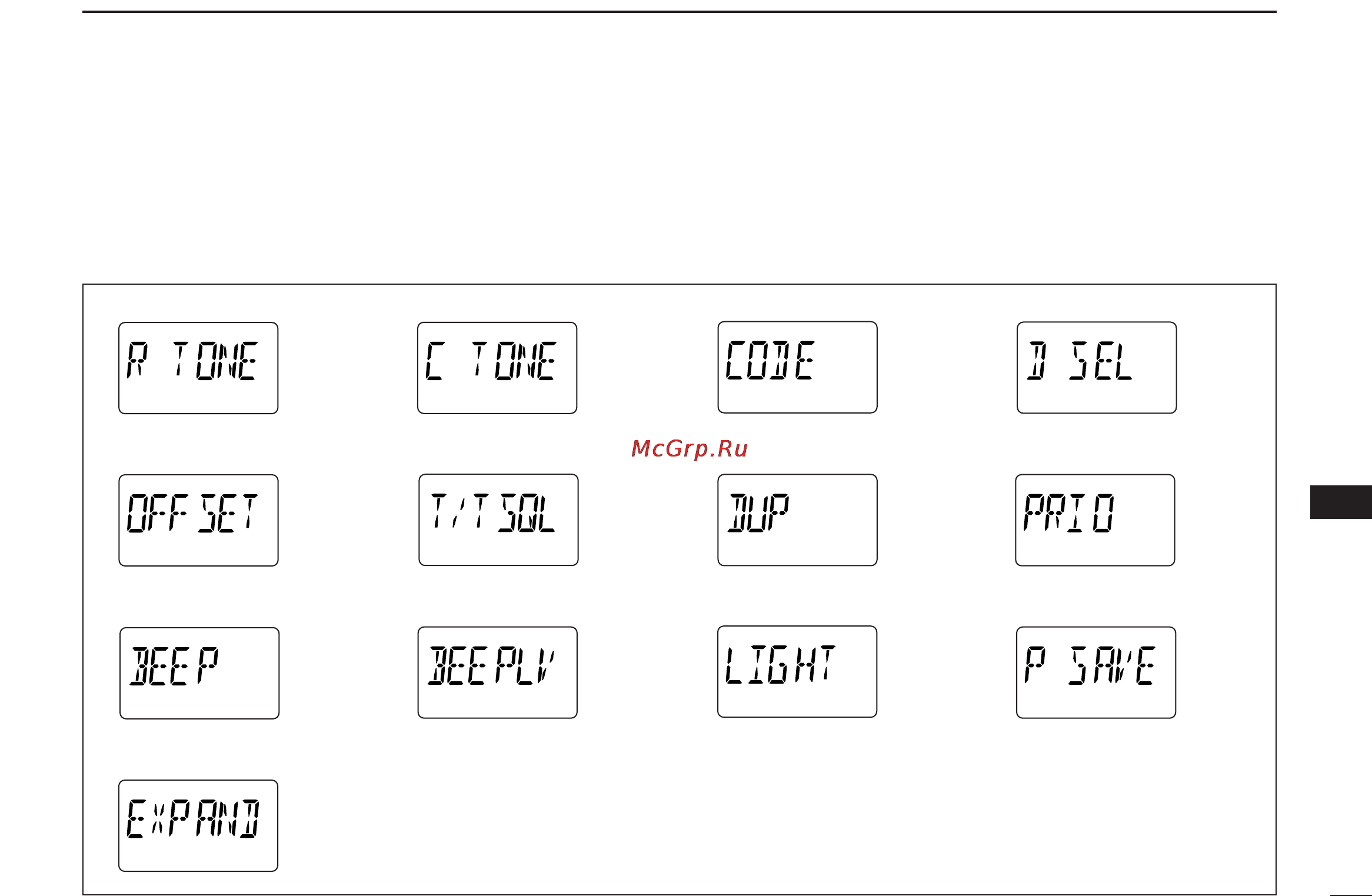

General set mode items
10
• Repeater tone (p. 52)
• Tone squelch tone (p. 52)
• Key-touch beep (p. 54)
• Beep output level (p. 54)
• Display backlighting (p. 55)
• DTCS code (p. 52)
• Tone selection (p. 53)
• Duplex direction (p. 54)
• Offset frequency (p. 53)
• Dial select step (p. 53)
• Priority watch (p. 54)
• Expanded set mode (p. 49)
• Power save (p. 55)
