40
7
SCAN OPERATION
7
tPush [CALL] (
MODE
•
SCAN
) several times; or while pushing
and holding [CALL] (
MODE
•
SCAN
), rotate [DIAL] to select
“S.MW.”
yPush and hold [V/M] (
SKIP
•
S
.
MW
) for 1 sec. to set the skip
condition.
•“SKIP” or “PSKIP” indicator appears, according to the skip se-
lection in step r.
✔
CONVENIENT!
The skip setting can also be easily set with the following op-
eration.
qSelect the desired memory channel to be set as a skip
channel/frequency.
wWhile pushing and holding [FUNC], push [V/M]
(
SKIP
•
S
.
MW
) momentarily to select the skip condition from
“SKIP,” “PSKIP” and “OFF (no indication).”
✔
CONVENIENT!
During VFO scanning, such as programmed scan, the skip
setting can be programmed into the highest blank memory
channel which is automatically selected with the following op-
eration.
qStart the VFO scan.
➥ Select VFO mode with [V/M] (
SKIP
•
S
.
MW
).
• Select the desired frequency band with [BAND] (
TS
•
LOCK
), if
desired.
➥ Push and hold [CALL] (
MODE
•
SCAN
) for 1 sec. to enter
scan type selection condition.
➥ Rotate [DIAL] to select the desired scanning type.
• “ALL” for full scan; “BAND” for band scan, “PROGxx” for pro-
grammed scan (xx= 0 to 24; programmed scan edges num-
bers only displayed)
➥ Push [CALL] (
MODE
•
SCAN
) again to start the scan.
• Scan pauses when a signal is received.
• Rotate [DIAL] to change the scanning direction, or resumes
manually.
wWhen scan pauses and you want to set the paused fre-
quency as a skip frequency.
➥ Push and hold [FUNC] then push [V/M] (
SKIP
•
S
.
MW
) for
1 sec. to store the paused frequency into the highest
blank memory channel.
• While pushing and holding [FUNC], scan pauses; and after
writing the frequency, scan resumes.
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOPSKIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOPSKIP
MR
5
1
9

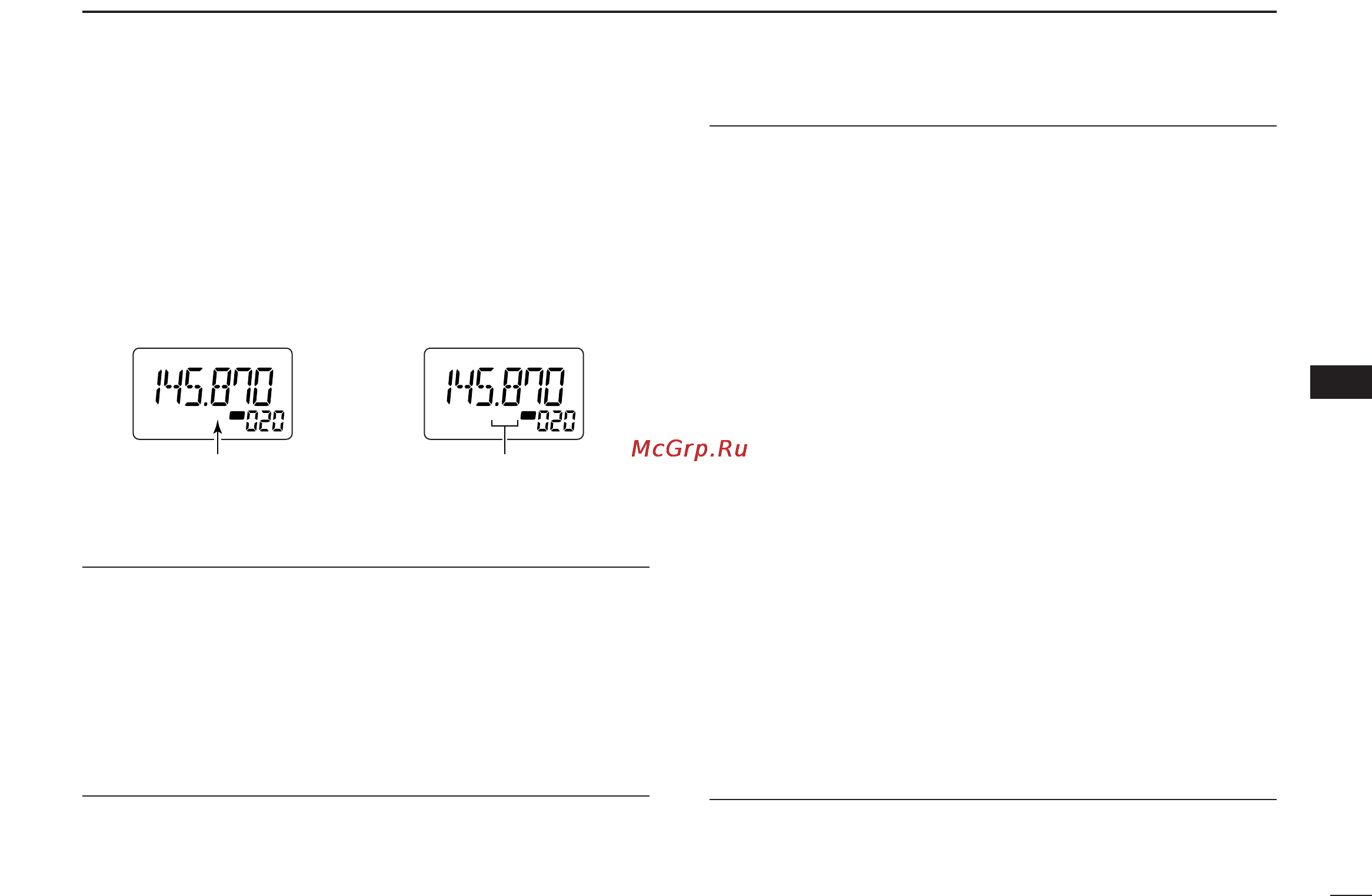

• Skip channel setting
• Program skip setting
“SKIP”
appears
“PSKIP”
appears
