36
7
SCAN OPERATION
7
Scan edges can be programmed in the same manner as
memory channels. Scan edge frequencies are programmed
into scan edges, 00A/00b to 24A/24b, in memory channels.
qPush [V/M] (
SKIP
•
S
.
MW
) to select VFO mode, if necessary.
wSet the desired frequency:
➥ Select the desired band with [BAND] (
TS
•
LOCK
).
➥ Set the desired frequency with [DIAL].
➥ Set other data
(e.g. offset frequency, duplex direction, sub-
audible tone frequency, etc.), if desired.
ePush and hold [V/M] (
SKIP
•
S
.
MW
) for 1 sec. to enter select
memory write mode.
•1 short and 1 long beeps sound.
•“ ” indicator and memory channel number blink.
rRotate [DIAL] to select the desired programmed scan
edge channel from 00A to 24A.
tPush and hold [V/M] (
SKIP
•
S
.
MW
) for 1 sec.
•3 beeps sound
• The other scan edge channel “b,” 00b to 24b, is automatically
selected when continuing to push [V/M] (
SKIP
•
S
.
MW
) after pro-
gramming.
yTo program a frequency for the other pair of scan edges,
00b or 24b, repeat steps w and t.
• If the same frequency is programmed into a pair of scan edges,
programmed scan will not function.
SCAN
S.MW
SET
S.MW
[DIAL]

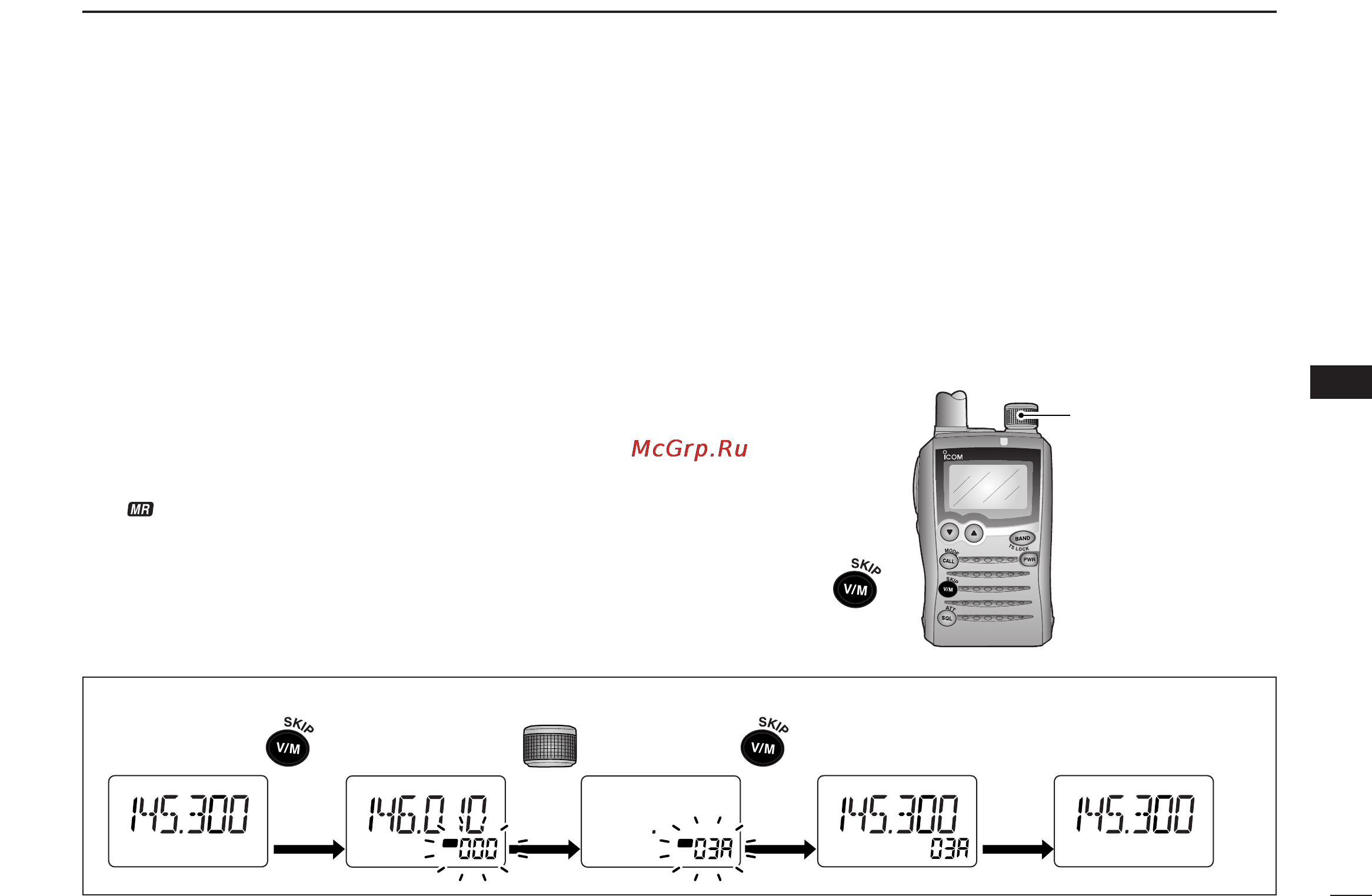

[EXAMPLE]: Programming 145.300 MHz into scan edge 03A.
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
Push for 1 sec.
Rotate
S.MW
Push for 1 sec.
S.MW
■ Scan edges programming
