9
FREQUENCY AND CHANNEL SETTING
3

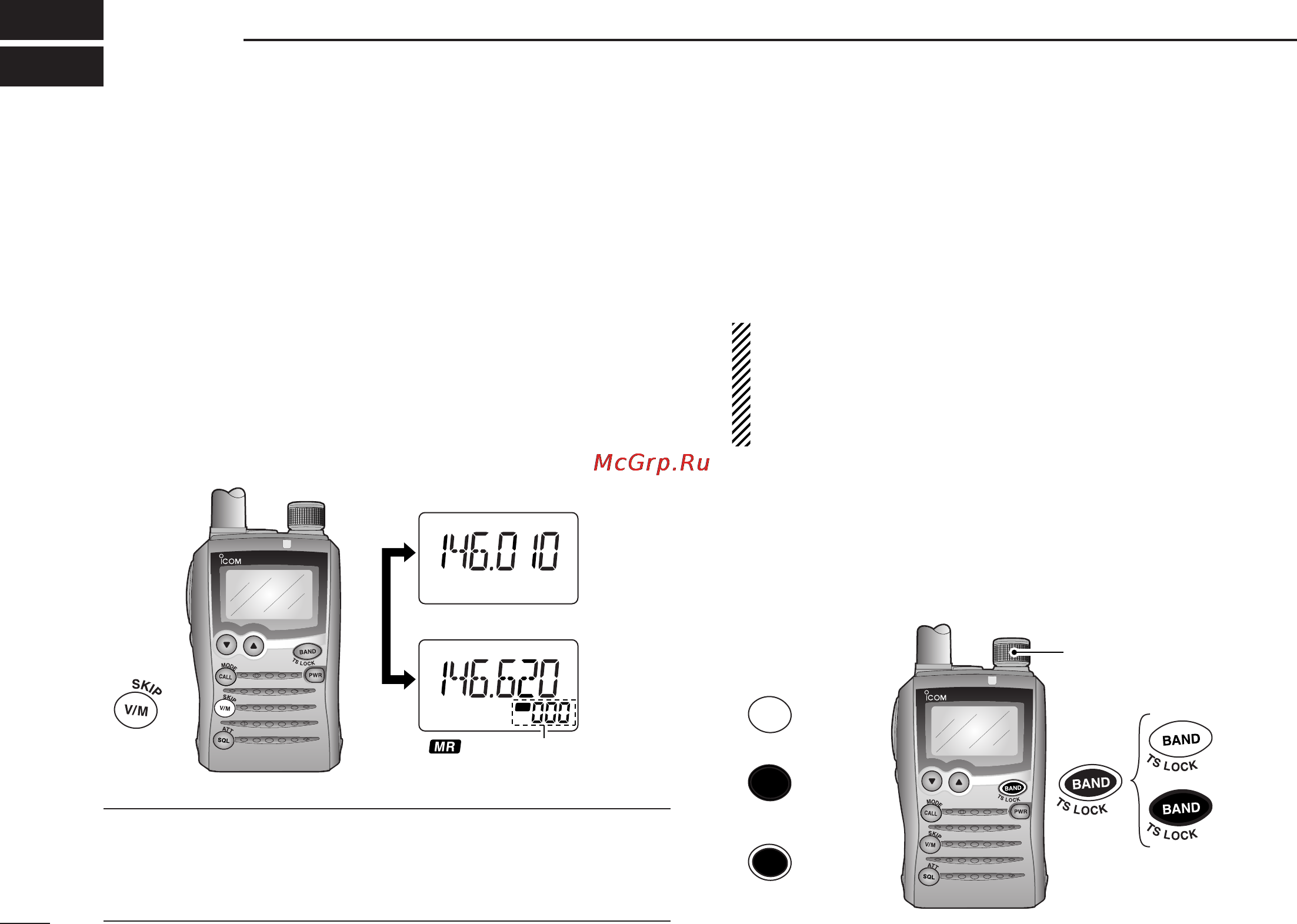

■ VFO and memory channels
The IC-P7A has two primary operating modes: VFO mode
and memory mode.
VFO mode is used for setting the desired frequency within
the frequency coverage.
➥ Push [V/M] (
SKIP
•
S
.
MW
) to select VFO mode.
Memory mode is used for operating from memory channels
which have programmed frequencies.
➥ Push [V/M] (
SKIP
•
S
.
MW
) to select memory mode.
• See p. 24 for memory programming details.
What is VFO?
VFO is an abbreviation of Variable Frequency Oscillator. Fre-
quencies for receiving or transmitting are selected and con-
trolled by the VFO.
■ Operating band selection
The transceiver can receive the AM broadcast, HF band,
50 MHz, FM broadcast, VHF air, 144 MHz, 300 MHz,
400 MHz, 600 MHz, *800 MHz, television channels or
†
Weather channels.
Available frequency bands are differ depending on version.
See the specification for details. (p. 75)
*Some frequency ranges are inhibited for the USA version
due to local regulation.
†
Available for the USA version only.
➥ Push [BAND] (
TS
•
LOCK
) several times to select the desired
frequency band.
• When memory mode is selected, push [V/M] (
SKIP
•
S
.
MW
) to se-
lect VFO mode first.
➥ While pushing and holding [BAND] (
TS
•
LOCK
), rotating
[DIAL] also selects frequency band.
SCAN
S.MW
SET
[DIAL]
[DIAL]
Push
Dual operation
Push and hold
+
SCAN
SET
S.MW
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KI P
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KI P
MR
5
1
9
“ ” and memory channel
number appear.
• VFO mode indication
• Memory mode indication
S.MW
