REPEATER OPERATION
The USA/KOREA versions automatically activate the repeater
settings when the operating frequency falls within or outside
of the general repeater output frequency range. The offset
and repeater tone frequencies are not changed by the auto
repeater function. Reset these frequencies, if necessary.

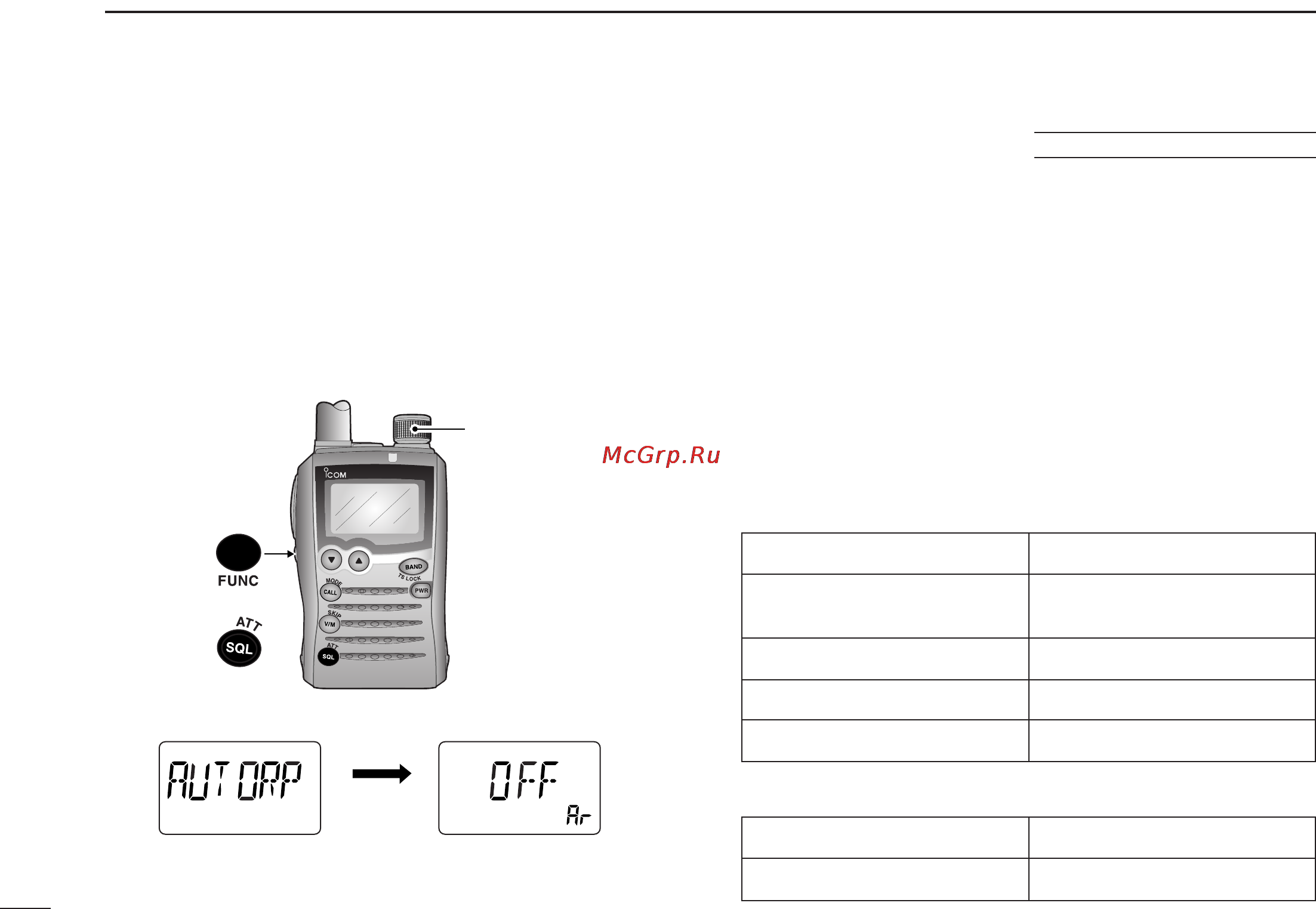

qWhile pushing and holding [FUNC], push and hold
[SQL] (
ATT
•
SET
) for 1 sec. to enter set mode.
wRotate [DIAL] to select “AUTORP.”
eWhile pushing and holding [FUNC], rotate [DIAL] to select
the desired condition.
U.S.A. version:
• OFF : The auto repeater function is turned OFF.
• DUP ONLY : Activates duplex offset only. (default)
• DUP TONE : Activates duplex and tone.
Korea version:
• OFF : Deactivates the function.
•ON: Activates duplex and tone. (default)
rPush [SQL] (
ATT
•
SET
) to exit set mode.
DD
Frequency range and offset direction
• U.S.A. version:
• Korea version:
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KIP
MR
5
1
9
After 1 sec.
Auto repeater item Setting indication
SCAN
S.MW
SET
[DIAL]
SET
■ Auto repeater function
USA/KOREA versions only
Frequency range Duplex direction
145.200–145.495 MHz
“–” appears
146.610–146.995 MHz
147.000–147.395 MHz “+” appears
442.000–444.995 MHz “+” appears
447.000–449.995 MHz “–” appears
Frequency range Duplex direction
439.000–440.000 MHz “–” appears
