Icom IC-P7A [34/96] Subaudible tones
![Icom IC-P7A [34/96] Subaudible tones](/views2/1074434/page34/bg22.png)
21
5
REPEATER OPERATION
To be accessed, some repeaters require subaudible tones on
the input signal. Subaudible tones are added to your normal
signal and must be set in advance.
DD

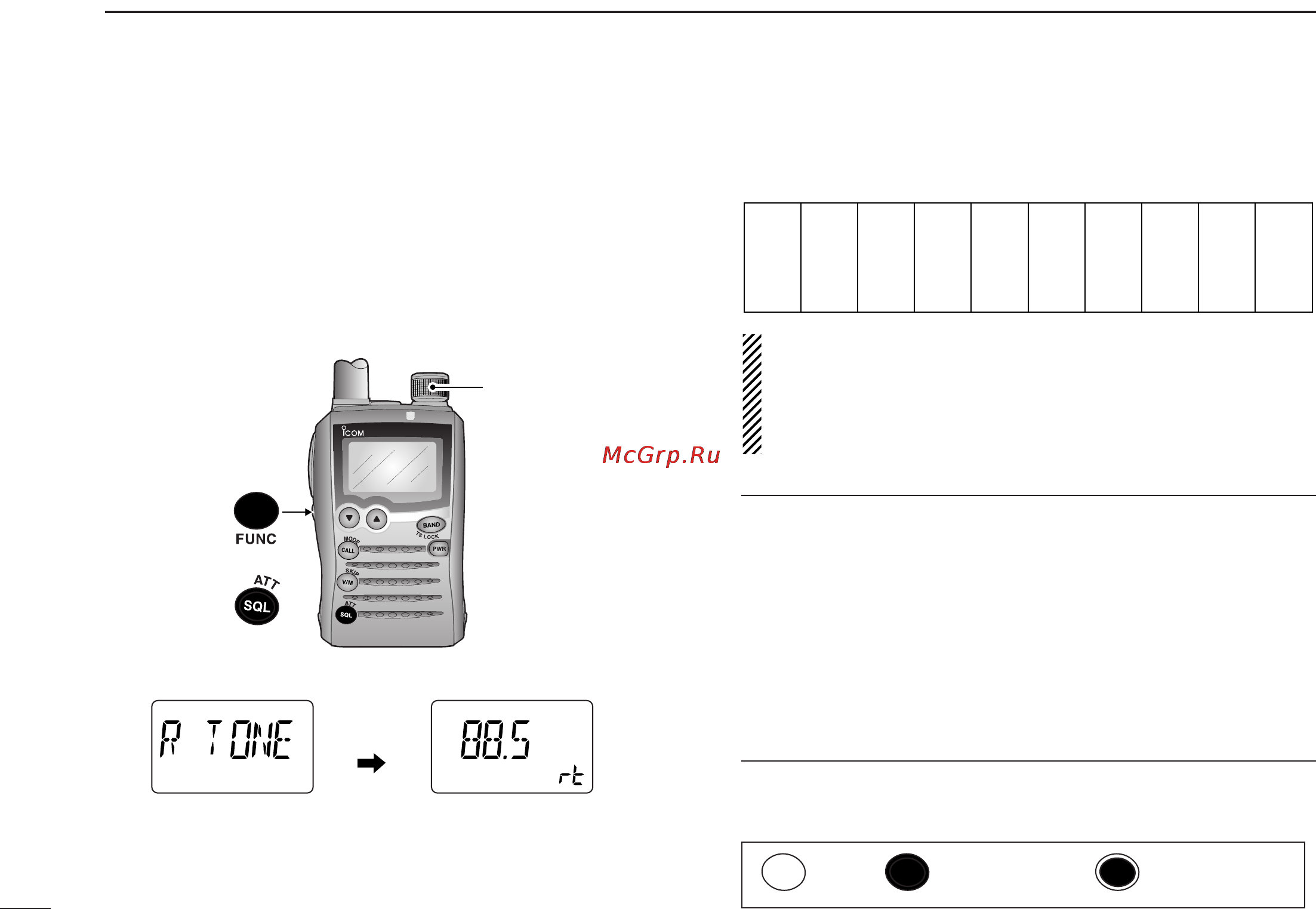

Setting the subaudible tone frequency
qWhile pushing and holding [FUNC], push and hold
[SQL] (
ATT
•
SET
) for 1 sec. to enter set mode.
wRotate [DIAL] to select “R TONE.”
eWhile pushing and holding [FUNC], rotate [DIAL] to select
the desired subaudible tone frequency.
• See the tables at right.
rPush [SQL] (
ATT
•
SET
) to exit set mode.
• Available tone frequency list
NOTE: The transceiver has 50 tone frequencies and con-
sequently their spacing is narrow compared to units having
38 tones. Therefore, systems using some tone frequencies
may receive interference from signals using adjacent tone
frequencies.
✔
CONVENIENT!
Tone scan function: When you don’t know the subaudible
tone used for a repeater, the tone scan is convenient for de-
tecting the tone frequency. (p. 48)
While pushing and holding [FUNC], pushing and holding
[CALL] (
MODE
•
SCAN
) for 1 sec. to start the repeater tone
scan.
• Push [CALL] (
MODE
•
SCAN
) to cancel the scan.
• When the required tone frequency is detected, the scan pauses.
67.0
69.3
71.9
74.4
77.0
79.7
82.5
85.4
88.5
91.5
94.8
97.4
100.0
103.5
107.2
110.9
114.8
118.8
123.0
127.3
131.8
136.5
141.3
146.2
151.4
156.7
159.8
162.2
165.5
167.9
171.3
173.8
177.3
179.9
183.5
186.2
189.9
192.8
196.6
199.5
203.5
206.5
210.7
218.1
225.7
229.1
233.6
241.8
250.3
254.1
ATT
DTCS
TSQL
SQL
WFMAM
-
DUP
LOW
VOL PRIOP S KIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S KIP
MR
5
1
9
After
1 sec.
SCAN
S.MW
SET
[DIAL]
SET
■ Subaudible tones
Push Push and hold Dual operation
