Icom IC-P7A [39/96] Memory bank selection
![Icom IC-P7A [39/96] Memory bank selection](/views2/1074434/page39/bg27.png)
26
6
MEMORY/CALL CHANNELS

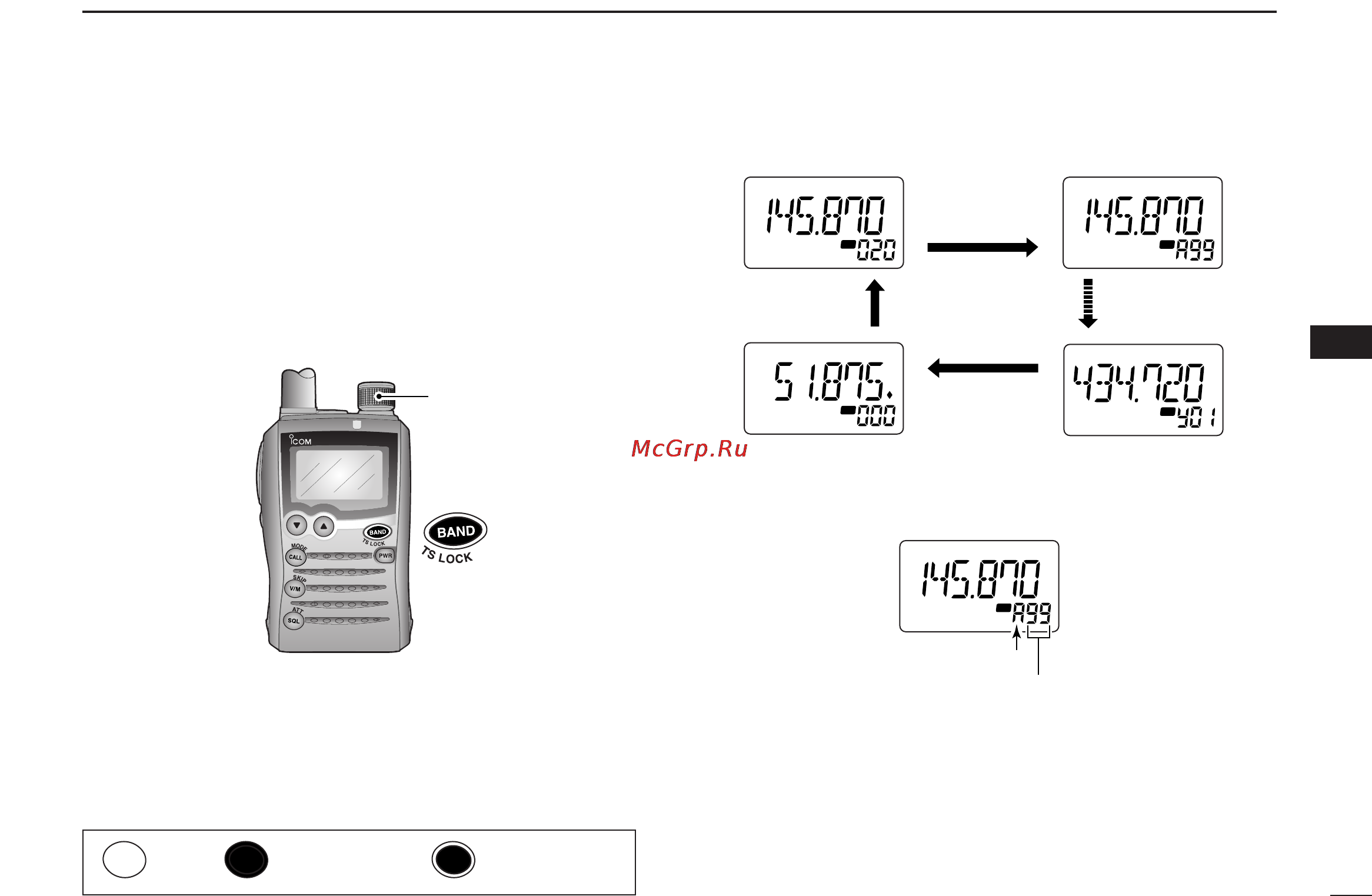

qPush [V/M] (
SKIP
•
S
.
MW
) to select memory mode, if desired.
wWhile pushing and holding [BAND] (
TS
•
LOCK
), rotate
[DIAL] to select the desired bank
(A to H, J, L, N, O to R, T, U
and Y).
• The bank can also be selected by pushing [BAND] (
TS
•
LOCK
)
several times.
• The only programmed banks are displayed.
eRotate [DIAL] to select the bank channel.
• Only programmed channels are displayed.
rTo return to regular memory
operation, rotate [DIAL] while
pushing and holding
[BAND] (
TS
•
LOCK
), or push [BAND]
(
TS
•
LOCK
) several times.
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
Bank initial
Bank channel number
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
Only programmed
banks appear
Auto write channels
Rotate [DIAL] while
pushing [BAND]
SCAN
S.MW
SET
[DIAL]
■ Memory bank selection
6
Push Push and hold Dual operation
