45

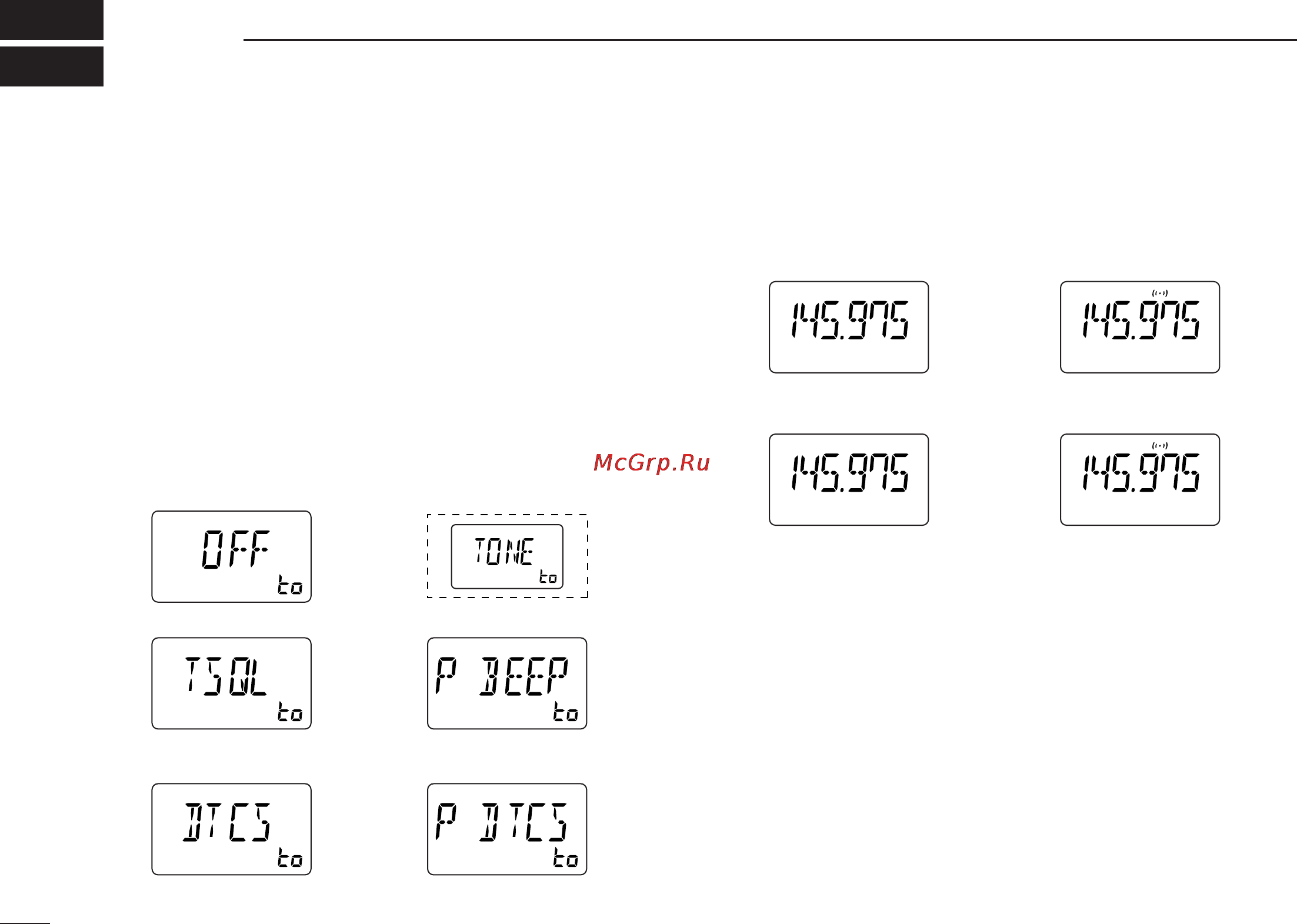

TONE SQUELCH AND POCKET BEEP
9
The tone or DTCS squelch opens only when receiving a sig-
nal with the same pre-programmed subaudible tone or DTCS
code, respectively. You can silently wait ffor a signal using the
same specified tone.
qSet the desired frequency in FM mode.
wWhile pushing and holding [FUNC], push and hold
[SQL] (
ATT
•
SET
) for 1 sec. to enter set mode.
eRotate [DIAL] to select “T/TSQL.”
rWhile pushing and holding [FUNC], rotate [DIAL] to select
the desired tone squelch condition from “TSQL,” “P BEEP,”
“DTCS” and “P DTCS.”
tPush [SQL] (
ATT
•
SET
) to exit set mode.
• One of “TSQL,” TSQLS,” “DTCS” or “SDTCS” appears ac-
cording to the tone selection in the step r.
yWhen a signal with a matching tone is received, the
squelch opens and the transceiver emits audio.
When pocket beep function is activated, the transceiver
also emits beep tones and blinks “S.”
• Beep tones sound and “S” blinks for 30 sec.
uPush [FUNC] to manually stop the beeps and blinking.
•“S” disappears and the pocket beep function is deactivated.
iTo cancel the tone squelch or DTCS, select “OFF” with the
“T/TSQL” in the set mode, as described in step r.
