27
6
MEMORY/CALL CHANNELS
■ Programming memory/bank name
Each memory channel can be programmed with an alphanu-
meric channel name for easy recognition and that can be indi-
cated independently by channel. Names can be a maximum of
6 characters.
qPush [V/M] (
SKIP
•
S
.
MW
) to select memory mode.
wRotate [DIAL] to select the desired memory channel.
ePush and hold [V/M] (
SKIP
•
S
.
MW
) for 1 sec. to enter select
memory write mode.
•1 short and 1 long beep sound.
•“ ” indicator and memory channel number blink.
rWhile pushing and holding [CALL] (
MODE
•
SCAN
), rotate
[DIAL] to select “M NAME” or “B NAME” when program-
ming the memory name or the bank name, respectively.
• Name type can also be selected by pushing [CALL]
(
MODE
•
SCAN
) several times.
• After releasing [CALL] (
MODE
•
SCAN
), an under bar blinks for the
first digit instead of the frequency indication, and only “ ” indi-
cator blinks.
tWhile pushing and holding [FUNC], rotate [DIAL] to select
the desired character.
• The selected character blinks.
yRotate [DIAL] to move the cursor to left or right.
uRepeat steps t and y until the desired 6-character chan-
nel names are displayed.
iPush [CALL] (
MODE
•
SCAN
) several times, or rotate [DIAL]
while pushing and holding [CALL] (
MODE
•
SCAN
) to select
“S.MW.”
oPush and hold [V/M] (
SKIP
•
S
.
MW
) for 1 sec. to program the
name and exit the channel name programming.
•3 beeps sound.

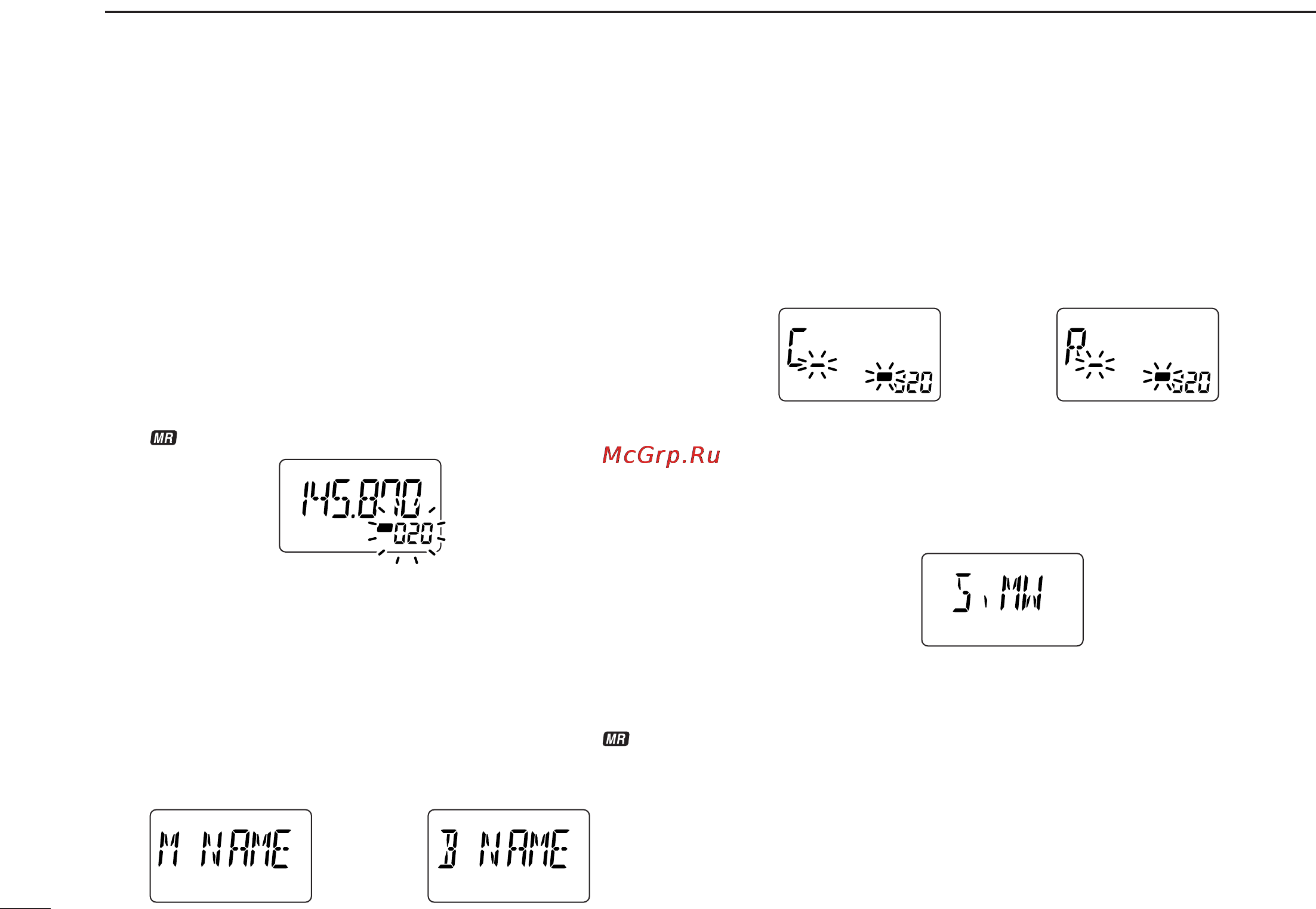

•Available characters
A to Z, 0 to 9,
(, ), ✱, +, –,
.
, /, :, = and space.
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIO P SKIP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
Bank nameMemory name
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
Bank name selectionMemory name selection
ATT
DTCS
TSQL
WFMAM
-
DUP
LOW
VOL PRIOP S K IP
MR
5
1
9
