Icom IC-P7A [20/96] Battery installation
![Icom IC-P7A [20/96] Battery installation](/views2/1074434/page20/bg14.png)
7
2
BATTERY CHARGING

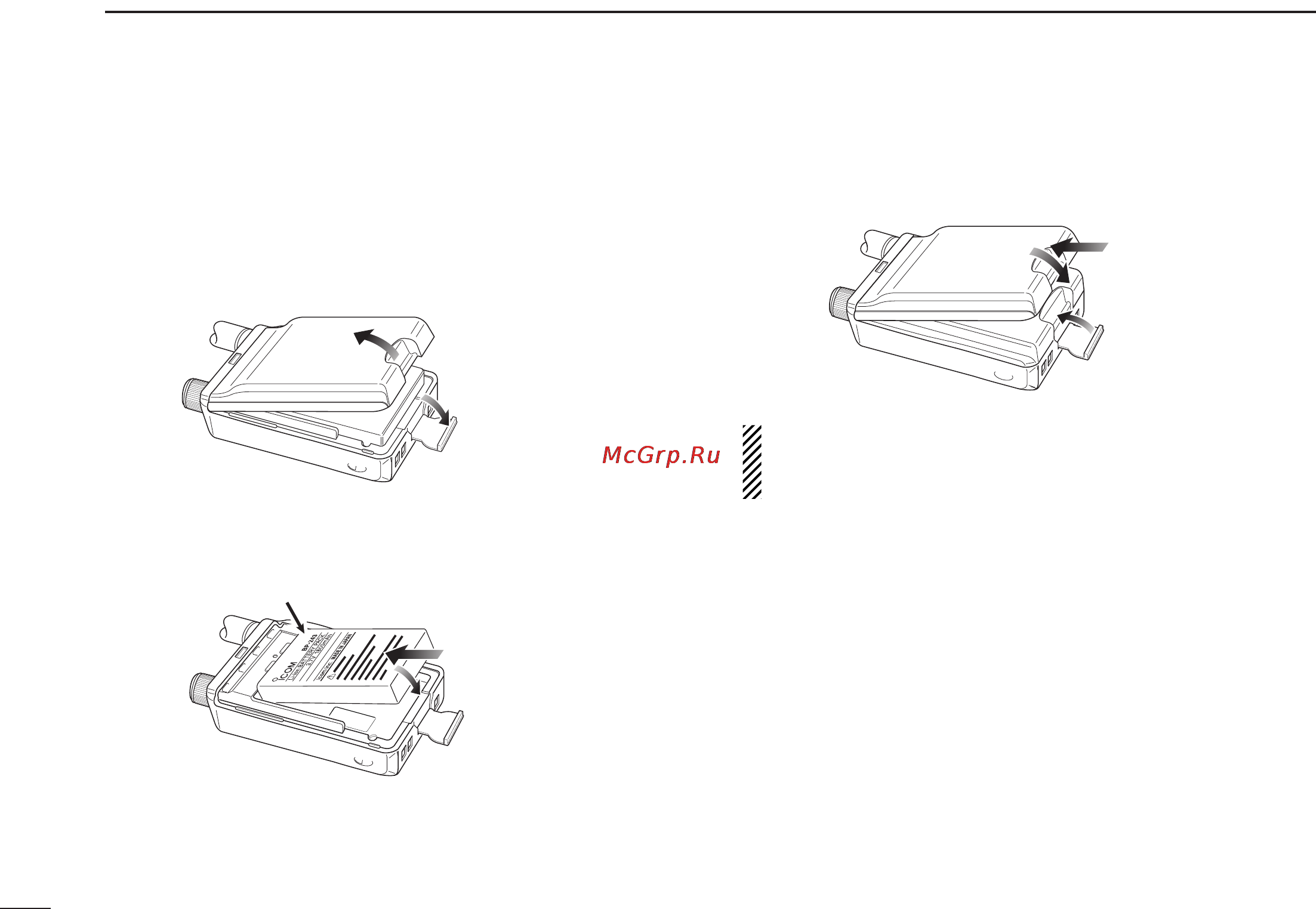

■ Battery installation
Before installing, or replacing the battery pack, be sure to turn
OFF the transceiver. If it’s ON, push and hold [PWR] for 1
sec. to turn the power OFF.
qRemove the battery cover from the transceiver.
wInstall the BP-243 (Li-Ion battery pack).
• Be sure to observe the correct polarity.
eReplace the battery cover to the transceiver.
Keep the battery contacts clean to avoid rust or poor con-
tact. It’s a good idea to clean the battery terminals once a
week.
r
t
e
Facing up this side
w
q
