Troubleshooting by Remote Controller Display / LED Display SiE25-110
144 Troubleshooting

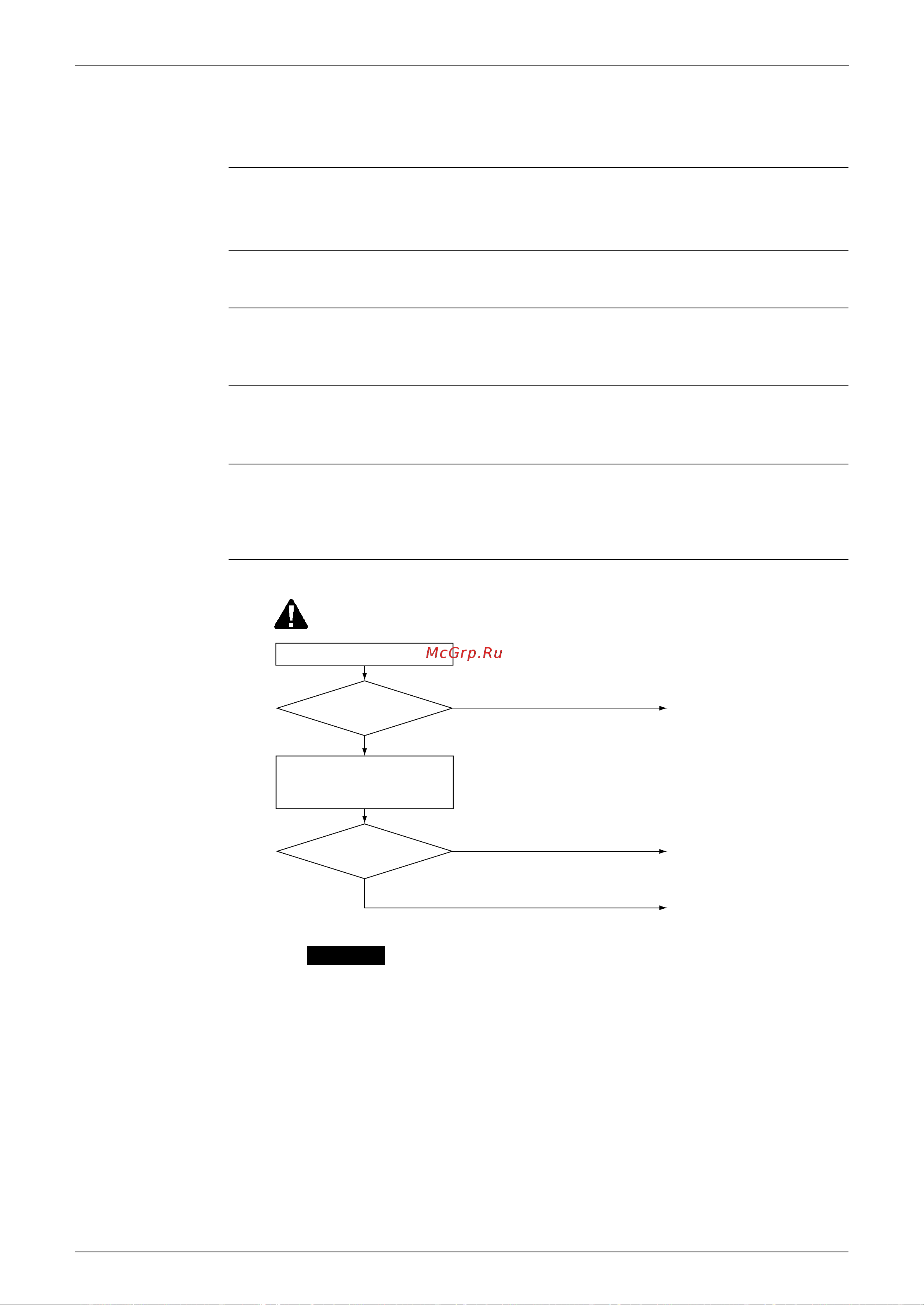

6.10 Malfunction of Heat Exchange Temperature Sensor
System
Remote
Controller
Display
C4
Applicable
Models
All indoor unit models
Method of
Malfunction
Detection
Malfunction detection is carried out by temperature detected by heat exchanger sensor.
Malfunction
Decision
Conditions
When the heat exchanger thermistor becomes disconnected or shorted while the unit is running.
Supposed
Causes
Failure of the sensor itself
Broken or disconnected wire
Failure of electronic circuitry (indoor unit PC board)
Failure of connector contact
Troubleshooting
Disconnect the heat exchange
sensor (R2T) from X18A on
the indoor unit PC board and
measure the resistance.
Connect correctly.
Heat exchanger
senser replacement.
If contact is OK,
replace indoor unit
PC board.
Is the
thermistor normal?
(See note)
NO
NO
YES
YES
(S2011)
Check contact of connector
Is it normal?
See Check No. 12 for “Thermistor temperature/Resistance characteristics”.
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
