SiE25-110 FHYCP71~140D
Removal Procedure 205

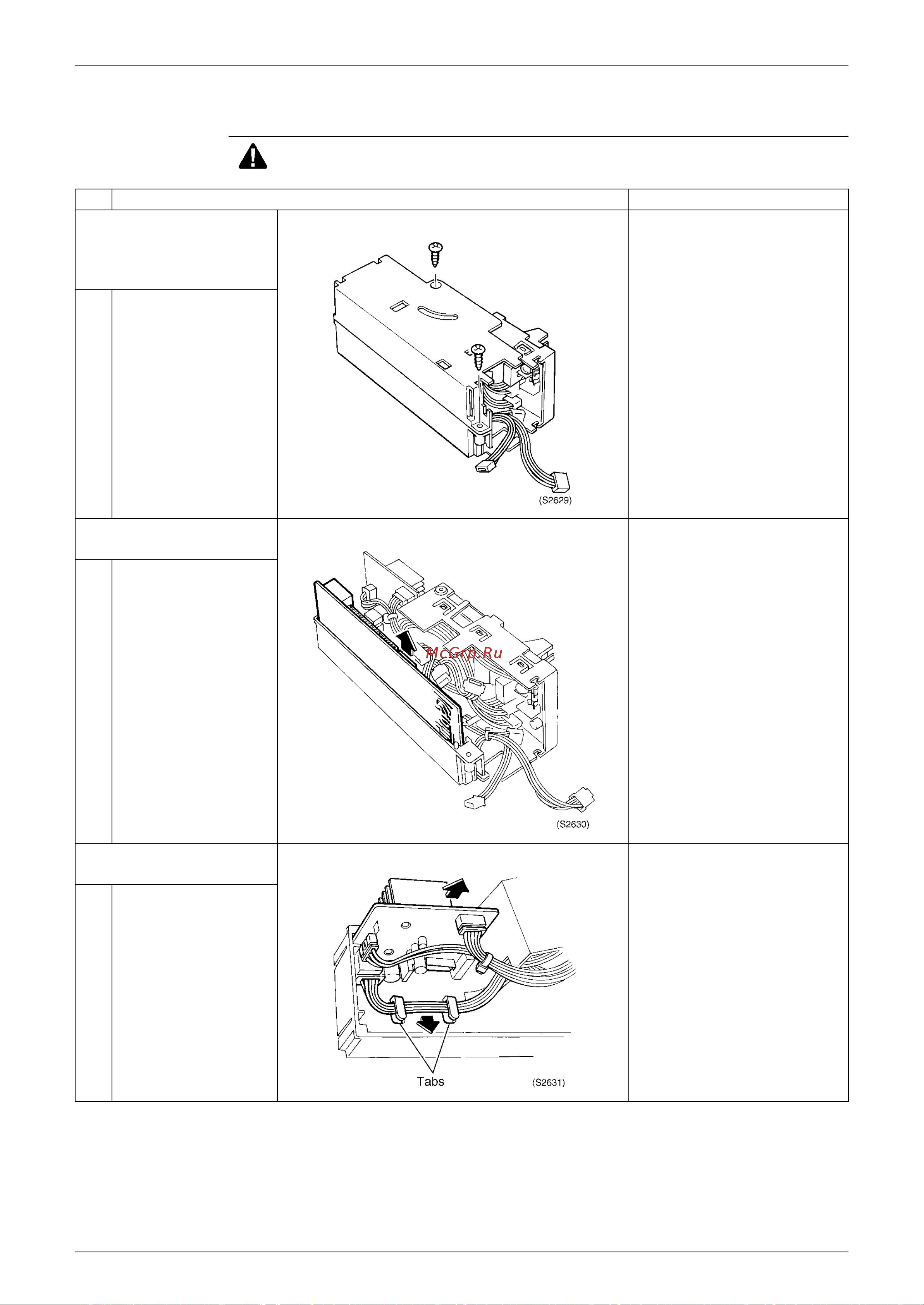

1.7 Removal of PC Board
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
Remove the switch box
according to the
procedure for removing
the switch box.
1
Remove 2 switch box
mounting screws to
open the box.
1. Disconnect the control PC
board.
1
Disconnect the 2
connectors between the
power supply and
control PC boards, then
draw the control PC
board out in the
direction shown by the
arrow.
2. Disconnect the inverter
PC board.
1
Disconnect the harness
from the 2 tabs
provided in the box.
2
Draw the inverter PC
board out in the
direction shown by the
arrow.
